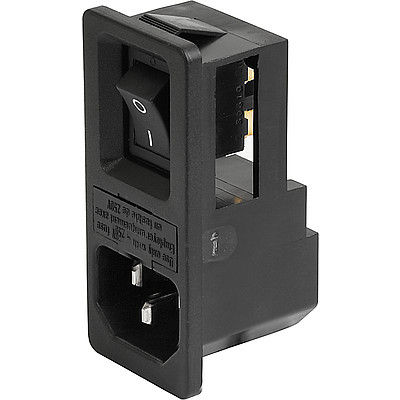

Snap-in version
from front side
Line Switch 1 or 2 pole

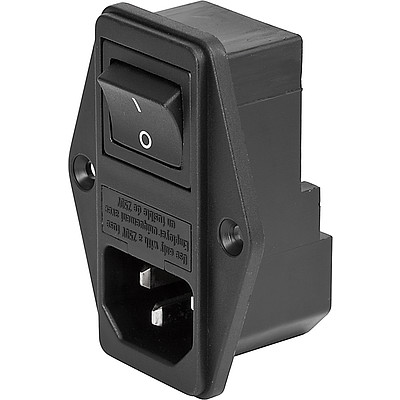

Screw-on mounting
from front side
Line switch 2-pole

Series

6762

IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole and Fuseholder 1-pole

24 Variants

Connectors (Inlets/Outlets)

C14

70° C

C18

70° C

Approvals and Compliances

Description

Panel mount: Snap-in or screw-on mounting, front side
Snap-in version with 1- or 2-pole line switch available
Screw-on version only with 2-pole line switch
Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Solder / Quick Connect

Characteristics

Line switch non-illuminated or illuminated

Detailed request for product

Details 6762

Technical Data

Approvals and Compliances

Dimension

Electrical Data

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

10 A / 250 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I or II acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Solder / Quick Connect

Panel Thickness S

See details in drawing
Snapper

Screw
Mounting screw torque max 0.5 Nm
Snap-in1.0 - 2.0 mm

Material: Housing

PA6, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 / C18 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I or II

Fuseholder

1.) fuse holder does not include circuit breakers
2.) Details about fuse-links can be found in the catalog under
FusesDetailed information on the fuse holder and fuse drawers can be found in the general product information.
Fuse drawer

1-pole, acc. to IEC 60127-6,
for fuse-links 5 x 20 mm

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Line Switch

Also includes circuit breaker switch and switch for Bowden cables.

Details about the switches can also be found in the general product information.
Line Switch

Rocker switch 1-/2-pole, non-illuminated or illuminated black, acc. to
Technical Details

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 6762

Approval Logo	Certificates	Certification Body	Description
	SEMKO Approvals	SEMKO	Certificate Number: SE/09137-5
	UL Approvals	UL	UR File Number: E93617

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
	Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

Dimensions [mm]

	Screw-on mounting

	Snap-in mounting

Derating Curves

	Fuses 5 x 20 mm (1-pole)
Admissible power acceptance in Watt
	Ambient air temperature Ta °C

Config. Code 6762

6762 - H - A B C N - D - E G O
The characters are placeholders for the correspondingly keys of selections from the key tables.

6762 - H - A B C N - D - E G O = Type

Type	Configuration key
protection class I	X
protection class II	B

6762 - H - A B C N - D - E G O = Terminals

Terminal L		Configuration key
solder terminal		1
long solder terminal (L = 8.5 mm)		3
Blade terminal (4.8 x 0.8 mm)		8
Blade terminal (6.3 x 0.8 mm)		9

6762 - H - A B C N - D - E G O = Terminals

Terminal N	Configuration key
solder terminal	1
long solder terminal (L = 8.5 mm)	3
Blade terminal (4.8 x 0.8 mm)	8
Blade terminal (6.3 x 0.8 mm)	9
Symbols similar as in table A

6762 - H - A B C N - D - E G O = Terminals

Terminal Ground	Configuration key
without terminal	0
solder terminal	1
long solder terminal (L = 8.5 mm)	3
Blade terminal (4.8 x 0.8 mm)	8
Blade terminal (6.3 x 0.8 mm)	9
Symbols similar as in table A

6762 - H - A B C N - D - E G O = Terminal Fuseholder

Terminal Fuseholder	Configuration key
solder terminal	1
Blade terminal (4.8 x 0.8 mm)	8

6762 - H - A B C N - D - E G O = Color

Color	Configuration key
Black	A

6762 - H - A B C N - D - E G O = Style

Style	Configuration key
flange with countersunk holes	1
flange with through holes	2
snap-in standard type	3
insert type	5

6762 - H - A B C N - D - E G O = Dimension S

Dimension "S"	Configuration key
00
The dimension "S" is displayed in (1/10 mm). This information is also valid for the order code

6762 - H - A B C N - D - E G O = Features

Features	Configuration key
dead cover	1
holder for 1 fuse (text legible, when inlet on top)	2
holder for 1 fuse (text legible, when inlet on bottom)	3
␍

Short Table of Variants 6762 Open complete table 6762

Type	Terminal L	Terminal N	Order Number	...

PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6049	...
PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6050	...
PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6051	...
PC I	solder	solder	4304.6052	...
PC I	solder	solder	4304.6053	...
PC I	solder	solder	4304.6054	...
PC I	solder	solder	4304.6055	...
PC I	solder - 8.5 mm	solder - 8.5 mm	4304.6056	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6057	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6058	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6059	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6060	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6061	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6062	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6063	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6064	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6065	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6066	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6068	...
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	4304.6069	...
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	4304.6070	...
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	4304.6071	...
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	4304.6072	...
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	4304.6120	...
The listed variants should be available from stock. Other versions on request www.schurter.com/contact

Packaging unit

50 Pcs

Table of Variants 6762

Type	Terminal L	Terminal N	Terminal Ground	Terminal Fuseholder	Style	Features	Switches	Config. Code	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	w/o	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8	6762-B-8808-A-100240	4304.6049	50
PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	w/o	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	1-pole - non-illuminated - QC 4.8 - small	6762-B-8808-A-300220	4304.6050	50
PC II	QC 4.8 x 0.8	QC 4.8 x 0.8	w/o	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8 - small	6762-B-8808-A-3002B0	4304.6051	50
PC I	solder	solder	solder	solder	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	w/o	6762-X-1111-A-100200	4304.6052	50
PC I	solder	solder	solder	solder	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8	6762-X-1111-A-100240	4304.6053	50
PC I	solder	solder	solder	solder	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - solder - small	6762-X-1111-A-100250	4304.6054	50
PC I	solder	solder	solder	solder	screw countersunk hole	holder for 1 fuse (text legible, when inlet on bottom)	2-pole - non-illuminated - QC 4.8	6762-X-1111-A-100340	4304.6055	50
PC I	solder - 8.5 mm	solder - 8.5 mm	solder - 8.5 mm	solder	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - solder - small	6762-X-3331-A-300250	4304.6056	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8	6762-X-8888-A-100240	4304.6057	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8	6762-X-8888-A-100240	4304.6058	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - illuminated - red - QC 4.8	6762-X-8888-A-100260	4304.6059	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - illuminated - green - QC 4.8	6762-X-8888-A-100280	4304.6060	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on bottom)	2-pole - non-illuminated - QC 4.8	6762-X-8888-A-100340	4304.6061	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	w/o	6762-X-8888-A-300200	4304.6062	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	1-pole - non-illuminated - QC 4.8 - small	6762-X-8888-A-300220	4304.6063	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8 - small	6762-X-8888-A-3002B0	4304.6064	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - solder - small	6762-X-8888-A-300250	4304.6065	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - illuminated - red - QC 4.8 - small	6762-X-8888-A-300290	4304.6066	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on bottom)	2-pole - illuminated - red - QC 4.8 - small	6762-X-8888-A-300390	4304.6068	50
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 6.3 x 0.8	solder	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	1-pole - non-illuminated - QC 4.8 - small	6762-X-9991-A-300220	4304.6069	50
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8	6762-X-9998-A-100240	4304.6070	50
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 4.8 x 0.8	screw countersunk hole	holder for 1 fuse (text legible, when inlet on top)	2-pole - illuminated - red - QC 4.8	6762-X-9998-A-100260	4304.6071	50
PC I	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 6.3 x 0.8	QC 4.8 x 0.8	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8 - small	6762-X-9998-A-3002B0	4304.6072	50
PC I	QC 4.8 x 0.8	QC 4.8 x 0.8	QC 4.8 x 0.8	solder	snap-in 1.0 - 2.0 mm	holder for 1 fuse (text legible, when inlet on top)	2-pole - non-illuminated - QC 4.8 - small	6762-X-8881-A-3002B0	4304.6120	200
The listed variants should be available from stock. Other versions on request www.schurter.com/contact

Packaging unit

50 Pcs

References / Document Downloads

Mating Components 6762

Mating Outlets/Connectors (14)

[Swipe to the left and right for more options]

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15

6007.0204

Cord Sets 10 A, Interconnection, 2.0 m, IEC H05VV-F3G1.0, black

6007.0212

Cord Sets 10 A, Interconnection, 1.0 m, Connector IEC C13, H05VV-F3G1.0, black

6007.0214

Cord Sets 10 A, Interconnection, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black

6004.0215

Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black

6003.0215

Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black

6000.0224

Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black

6000.0214

Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black

6044.0215

Cord Sets 10 A, United Kingdom, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black

6044.0204

Cord Sets 10 A, United Kingdom, 2.0 m, Connector IEC H05VV-F3G1.0, black

Mating Outlets/Connectors shuttered (1)

[Swipe to the left and right for more options]

VAC17KS

VAC17KS, V-Lock cord retaining, diverse m, Connector IEC C17, diverse, black / grey / white

Accessories 6762

Accessories (2)

[Swipe to the left and right for more options]

Wire Harness

Wire harness for SCHURTER products

RC320

Rear Cover for Power Entry Module

23.10.2025

Transformation_Date:	2025-10-23 14:56:06
Export_Path:	/Datasheets/Datasheet_GST_PG05_Export/KRAEHECH/6762/2025_10_23/14_51_02_752_555577/
Export_Lang:	en
SGE_Name:	Connectors
PG_Name:	Power Entry Modules without Line Filter
Typ_Name:	6762
Typ_AliasNames:	:6762:
Typ_ID:	33084
Typ_Hierarchie:	020050160000001210
Typ_EPIM_Order:	180
Typ_Titel:	IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole and Fuseholder 1-pole
PublPrgr_Name:	Power Entry Module without Filter
PublPrgr_Shortcut:	PG05
Variant table:	Variantentabelle V129 (202910)

6762

Description 6762

Description

Characteristics

Details 6762

Approvals

Product standards

Application standards

Compliances

Dimensions [mm]

Derating Curves

Config. Code 6762

Short Table of Variants 6762 Open complete table 6762

References / Document Downloads

Mating Components 6762

Mating Outlets/Connectors (14)

Mating Outlets/Connectors shuttered (1)

Accessories 6762

Accessories (2)
