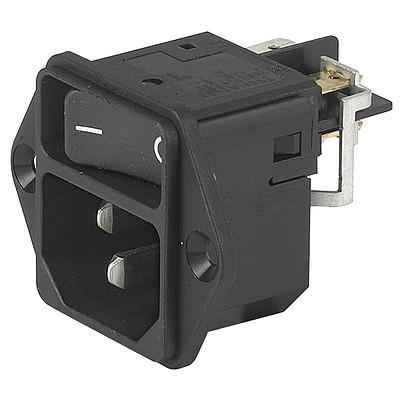

DC11  Screw-on mounting Non-illuminated from front side
Screw-on mounting
Non-illuminated
from front side

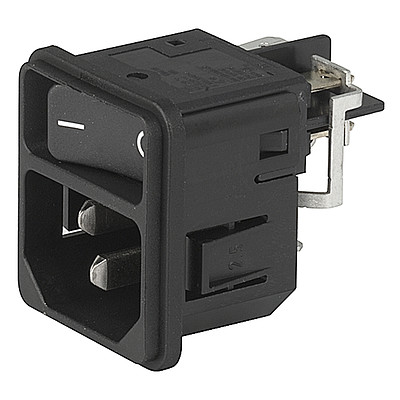

DC11  Snap-in version Non-illuminated
Snap-in version
Non-illuminated

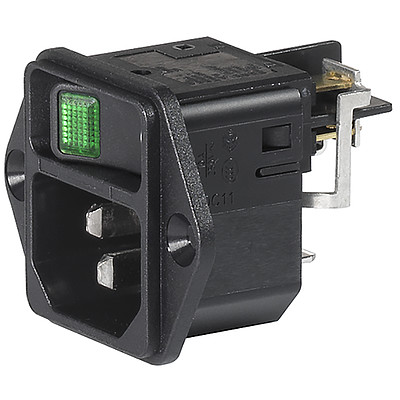

DC11  Screw-on mounting and line Switch illuminated green
Screw-on mounting and line Switch illuminated
green
DC11  IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole
DC11  Screw-on mounting Non-illuminated from front side
DC11  Snap-in version Non-illuminated
DC11  Screw-on mounting and line Switch illuminated green
DC11  IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole

Series: DC11

IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole

Free Sample Request

25 Variants


Connectors (Inlets/Outlets)

C14
Connector Logo
70° C
C18
Connector Logo
70° C

Description

  • Panel mount: Screw-on version from front or rear side, snap-in version front side
  • Appliance Inlet protection class I or II, Line Switch 1  or 2 pole
  • V-Lock notch standard
  • Quick connect terminals 4.8 x 0.8 mm

Unique Selling Proposition

  • Ultra compact design
  • Line switch for high inrush currents
  • Components internally wired
  • V-Lock cord retaining

Characteristics

  • All single elements are already wired
  • Unwired versions available on request
  • Line switch non-illuminated or illuminated
  • Ideal for application with high transient loads
  • Suitable for use in equipment according to IEC/UL 62368-1

Other versions on request

  • Unwired versions
  • Solder terminals
  • Line switch with other rocker marking

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

15 A / 250 VAC; 60 Hz

Dielectric Strength

Dielectric Strength


Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection against electric shock

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

Suitable for appliances with protection class I or II acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminals 4.8 x 0.8 mm

Panel Thickness S

Panel Thickness S


See details in drawing
Snapper

Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Appliance inlet/-outlet


Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 / C18 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I or II

Line Switch

Line Switch


Also includes circuit breaker switch and switch for Bowden cables.

Details about the switches can also be found in the general product information.
Line Switch

Rocker switch 1-/2-pole, non-illuminated or illuminated, acc. to IEC 61058-1
Technical Details

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: DC11

Approval Logo Certificates Certification Body Description
Approval marks ENEC_10 VDE Certificate Number: 40007009
Approval marks cURus UL UR File Number: E96454
Approval marks ccc CCC CCC Certificate Number: 2013010204594013


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Approval marks IEC_Certification_Body Designed according to IEC 61058-1 Switches for appliances. Part 1. General requirements
Approval marks UL Designed according to UL 60320-1 Standard for Attachment Plugs and Receptacles
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 60320-1 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Components V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Environment_Safety Glow_Wire_Proof SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

020050160000001166
LOADING...

Dimensions [mm]

Screw-on mounting

1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated
Snap-in mounting

1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated

Diagrams

Line switch non-illuminated 2-pole

1) Line
2) Load
Line switch illuminated 2-pole

1) Line
2) Load
Line switch non-illuminated 1-pole

1) Line
2) Load

Short Table of Variants DC11 Open complete table DC11

Rated Current UL Protection Class Panel mounting Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
[A]


15 I Snap-in DC11.0021.201 ...
15 I Snap-in DC11.0021.206 ...
15 I Snap-in DC11.0021.301 ...
15 I Snap-in DC11.0021.401 ...
15 I Snap-in DC11.0031.201 ...
15 I Snap-in DC11.0031.301 ...
15 I Snap-in DC11.0031.401 ...
15 I Snap-in DC11.0001.203 ...
15 I Snap-in DC11.0001.207 ...
15 I Snap-in DC11.0001.303 ...
15 I Snap-in DC11.0001.403 ...
15 I Snap-in DC11.0001.201 ...
15 I Snap-in DC11.0001.206 ...
15 I Snap-in DC11.0001.301 ...
15 II Snap-in DC11.0001.351 ...
15 I Snap-in 3-107-445 ...
15 I Snap-in DC11.0001.401 ...
15 I Snap-in DC11.0001.501 ...
15 I Screw DC11.0021.001 ...
15 I Screw DC11.0021.006 ...
15 I Screw DC11.0031.001 ...
15 I Screw DC11.0001.003 ...
15 I Screw DC11.0001.007 ...
15 I Screw DC11.0001.001 ...
15 I Screw DC11.0001.006 ...

With screw mounting on PCB, 2 screws are included

All variants according VDE (ENEC 10) approved for 10 A

Packaging unit 50 Pcs
