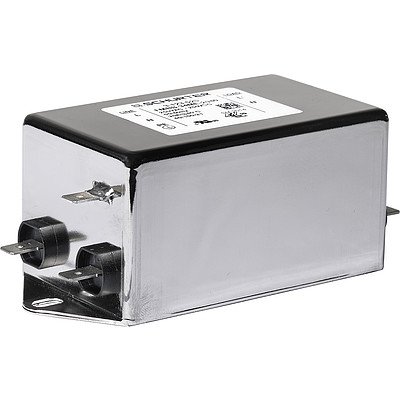

Case ME

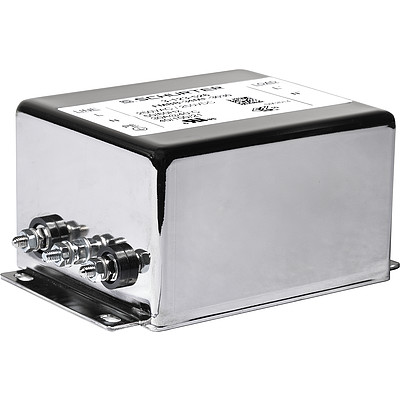

Case MB

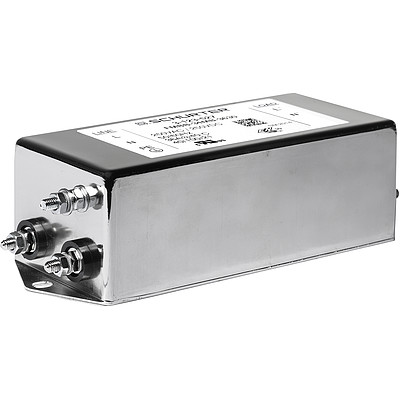

Case MF

FMBB EP AC Filter 2-Stage, excellent Attenuation

Series

FMBB EP

AC Filter 2-Stage, excellent Attenuation

36 Variants

Approvals and Compliances

Microsite EMC-Service

Description

Line filter in standard and medical version
2 stage
Compact design
Very light due to partial potting

Unique Selling Proposition

Excellent differential and common-mode attenuation
Broad band attenuation
Completely closed steel housing
Wide temperature range

Characteristics

Designed for current applications of 1 - 36 A
Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenuated
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
Suitable for use in equipment according to IEC/UL 62368-1
Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Detailed request for product

Details FMBB EP

Technical Data

Approvals and Compliances

Dimension

Electrical Data

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

1 - 36 A @ Ta 40 °C / 125/250 VAC; 60 Hz

Leakage Current

The leakage current is an electric current flowing in an undesirable current path.
In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 6.9 mA (250 V / 50 Hz)
low leakage current < 0.15 mA (250 V / 50 Hz)
medical (M5) < 5 µA (250 V / 50 Hz)
medical (M80) < 80 µA (250 V / 50 Hz)

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

1.7 kVDC between L-N
2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-40 °C to 100 °C

Climatic Category

Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

40/100/21 acc. to IEC 60068-1

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

rear-side IP20 IEC 60529

Protection Class

Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminal 6.3 x 0.8 mm
Bolt and nut M4

Material

Nickel plated steel

Line Filter

Filter Type

Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medizinal: < 0.1 mA
Leakage Current

Standard and Medical Version, IEC 60939, UL 60939-3, CSA C22.2 no. 8
Technical Details

MTBF

The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 200'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: FMBB EP

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	Certificate Number: 40051449
	UL Approvals	UL	UR File Number: E495089

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60939	Passive filters for suppressing electromagnetic interference
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	UL 60939-3	Passive filters for suppressing electromagnetic interference
Designed according to	CSA C22.2 no. 42	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Designed according to	CSA C22.2 no. 8	Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
	Suitable for applications acc.	IEC 60601-1	Medical electrical equipment - Part 1: General requirements for basic safety and essential performance

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Medical Equipment	SCHURTER AG	Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Dimension [mm]

	Case 09 with quick connect terminals

	1) Line 2) Load

	Case MB with bolt and nut M4

	1) Line 2) Load 3) Nut torque 0.8...1 Nm, keep lock-nut fastened 4) Lock-nut do not unscrew 5) PE: M4x16, 1.2...1.5 Nm, keep lock-nut fastened

	Case MC with quick connect terminals

	1) Line 2) Load

	Case UB with quick connect terminals

	1) Line 2) Load

	Case ME with quick connect terminals

	1) Line 2) Load

	Case MF with bolt and nut M4

	1) Line 2) Load 3) Nut torque 0.8...1 Nm, keep lock-nut fastened 4) Lock-nut do not unscrew 5) PE: M4x16, 1.2...1.5 Nm, keep lock-nut fastened

Diagrams

	Design C, D Standard and medical M80

	1) Line, 2) Load

	Design C, D Medical M5

	1) Line, 2) Load

	Medical M80

	1) Line, 2) Load

Attenuation Loss

Standard version

	1A

	3 A

	6 A

	10 A

	12 A

	16 A

	20 A

	30 A

	36 A

Medical version (M5)

	1 A

	3 A

	6 A

	10 A

	12 A

	16 A

	20 A

	30 A

	36 A

Medical version (M80)

	1 A

	3 A

	6 A

	10 A

	12 A

	16 A

	20 A

	30 A

	36 A

Low leakage current version

	1 A

	3 A

	6 A

	10 A

	12 A

	16 A

	20 A

	30 A

	36 A

Short Table of Variants FMBB EP Open complete table FMBB EP

Rated current	Filter-Type	Terminal	Order Number	...
[A]

1	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-509	...
3	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-510	...
6	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-511	...
10	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-522	...
12	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-523	...
16	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-524	...
20	Standard version	Quick connect terminal 6.3 x 0.8 mm	3-123-525	...
30	Standard version	Bolt and nut M4	3-123-526	...
36	Standard version	Bolt and nut M4	3-123-527	...
1	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-537	...
3	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-538	...
6	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-539	...
10	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-540	...
12	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-541	...
16	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-542	...
20	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	3-123-543	...
30	Low leakage current version	Bolt and nut M4	3-123-544	...
36	Low leakage current version	Bolt and nut M4	3-123-545	...
1	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-528	...
3	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-529	...
6	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-530	...
10	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-531	...
12	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-532	...
16	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-533	...
20	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	3-123-534	...
30	Medical Version (M5)	Bolt and nut M4	3-123-535	...
36	Medical Version (M5)	Bolt and nut M4	3-123-536	...
1	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-126	...
3	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-127	...
6	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-128	...
10	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-129	...
12	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-130	...
16	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-131	...
20	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	3-142-132	...
30	Medical Version (M80)	Bolt and nut M4	3-142-133	...
36	Medical Version (M80)	Bolt and nut M4	3-142-134	...
Leakage current according IEC 60939-1 20A, 30A and 36A medical filter M5 and M80, are only suitable for medical equipment intended for permanently connection to the mains.

Table of Variants FMBB EP

Rated current	Filter-Type	Terminal	Leakage Current	Ri	Power Loss	Weight	Housing	Packaging	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form
[A]			[mA]	[mΩ]	[W]	[g]		[ST]

1	Standard version	Quick connect terminal 6.3 x 0.8 mm	1.47	601.3	1.2	125 g	09	15	3-123-509	15
3	Standard version	Quick connect terminal 6.3 x 0.8 mm	1.47	169.3	3	128 g	09	15	3-123-510	15
6	Standard version	Quick connect terminal 6.3 x 0.8 mm	1.47	33.3	2.88	133 g	09	15	3-123-511	15
10	Standard version	Quick connect terminal 6.3 x 0.8 mm	6.91	9.9	4.4	198 g	MC	10	3-123-522	10
12	Standard version	Quick connect terminal 6.3 x 0.8 mm	3.14	7.6	4.15	201 g	MC	10	3-123-523	10
16	Standard version	Quick connect terminal 6.3 x 0.8 mm	3.14	7.9	4.1	265 g	UB	10	3-123-524	10
20	Standard version	Quick connect terminal 6.3 x 0.8 mm	3.14	6.1	4.8	390 g	ME	5	3-123-525	5
30	Standard version	Bolt and nut M4	3.14	6.1	10.8	855 g	MF	3	3-123-526	3
36	Standard version	Bolt and nut M4	3.14	5.5	10.4	890 g	MB	4	3-123-527	4
1	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	601.3	1.2	125 g	09	15	3-123-537	15
3	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	169.3	3	128 g	09	15	3-123-538	15
6	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	33.3	2.88	133 g	09	15	3-123-539	15
10	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	9.9	4.4	198 g	MC	10	3-123-540	10
12	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	7.6	4.15	201 g	MC	10	3-123-541	10
16	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	7.9	4.1	265 g	UB	10	3-123-542	10
20	Low leakage current version	Quick connect terminal 6.3 x 0.8 mm	0.15	6.1	4.8	390 g	ME	5	3-123-543	5
30	Low leakage current version	Bolt and nut M4	0.15	6.1	10.8	855 g	MF	3	3-123-544	3
36	Low leakage current version	Bolt and nut M4	0.15	5.5	10.4	890 g	MB	4	3-123-545	4
1	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	601.3	1.2	125 g	09	15	3-123-528	15
3	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	169.3	3	128 g	09	15	3-123-529	15
6	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	33.3	2.88	133 g	09	15	3-123-530	15
10	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	9.9	4.4	198 g	MC	10	3-123-531	10
12	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	7.6	4.15	201 g	MC	10	3-123-532	10
16	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	7.9	4.1	265 g	UB	10	3-123-533	10
20	Medical Version (M5)	Quick connect terminal 6.3 x 0.8 mm	0.005	6.1	4.8	390 g	ME	5	3-123-534	5
30	Medical Version (M5)	Bolt and nut M4	0.005	6.1	10.8	855 g	MF	3	3-123-535	3
36	Medical Version (M5)	Bolt and nut M4	0.005	5.5	10.4	890 g	MB	4	3-123-536	4
1	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	601.3	1.2	125 g	09	15	3-142-126	15
3	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	169.3	3	128 g	09	15	3-142-127	15
6	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	33.3	2.88	133 g	09	15	3-142-128	15
10	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	9.9	4.4	198 g	MC	10	3-142-129	10
12	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	7.6	4.15	201 g	MC	10	3-142-130	10
16	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	7.9	4.1	265 g	UB	10	3-142-131	10
20	Medical Version (M80)	Quick connect terminal 6.3 x 0.8 mm	0.073	6.1	4.8	390 g	ME	5	3-142-132	5
30	Medical Version (M80)	Bolt and nut M4	0.073	6.1	10.8	855 g	MF	3	3-142-133	3
36	Medical Version (M80)	Bolt and nut M4	0.073	5.5	10.4	890 g	MB	4	3-142-134	4
Leakage current according IEC 60939-1 20A, 30A and 36A medical filter M5 and M80, are only suitable for medical equipment intended for permanently connection to the mains.

References / Document Downloads

References FMBB EP

Alternative: High attenuation version (1)

[Swipe to the left and right for more options]

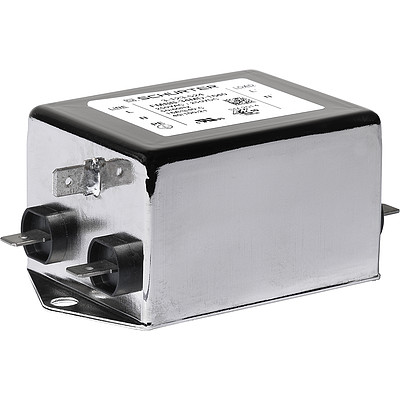

FMBB NEO

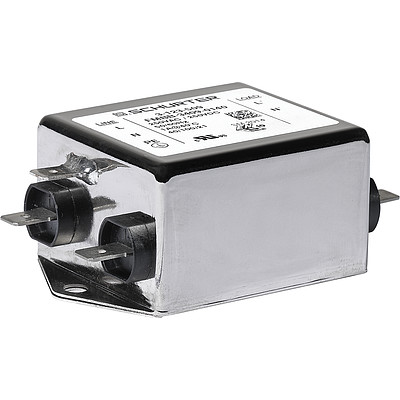

Accessories FMBB EP

Accessories (1)
