MCS ES 18  Metal Switch Medium Stroke, Switching Voltage up to 35 VDC

Series: MCS ES 18

Metal Switch Medium Stroke, Switching Voltage up to 35 VDC

Free Sample Request


  • Vandal-proof momentary switch with a diameter of 18 mm
  • Assembly by mounting with nut
  • Screw terminal


  • Housing material in high-quality stainless steel or aluminium
  • Rugged design, protection against vandalism
  • For use in harsh environments, both indoors and outdoors (see technical data)

Electrical Data

Contact Material Silver

Switching Voltage

min. 3 VAC/VDC

max. 35 VAC/VDC

Switching current

min. 5 mA AC/DC

max. 2 A AC/DC

Rated Switching Capacity

70 W AC/DC


200'000 actuations

Contact Resistance

< 50 mΩ

Insulation Resistance

> 1'000 MΩ

Duration of Bounce

< 10 ms

Mechanical Data

Actuating Force

4 N

Actuating Travel

1.8 mm


200'000 actuations

Shock Protection


Mounting screw torque

0.8 Nm

Climatical Data

Operating Temperature

-25 to 55 °C

Storage Temperature

-25 to 55 °C




Contact Material



Stainless Steel

Actuator unlettered

Stainless Steel

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Product standards

Product standards that are referenced

Organization Design Standard Description
Partners DIN_Certification_Body Designed according to EN 50102 Switches for appliances. Part 1. General requirements

Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.


Dimension [mm]



Drilling diagram

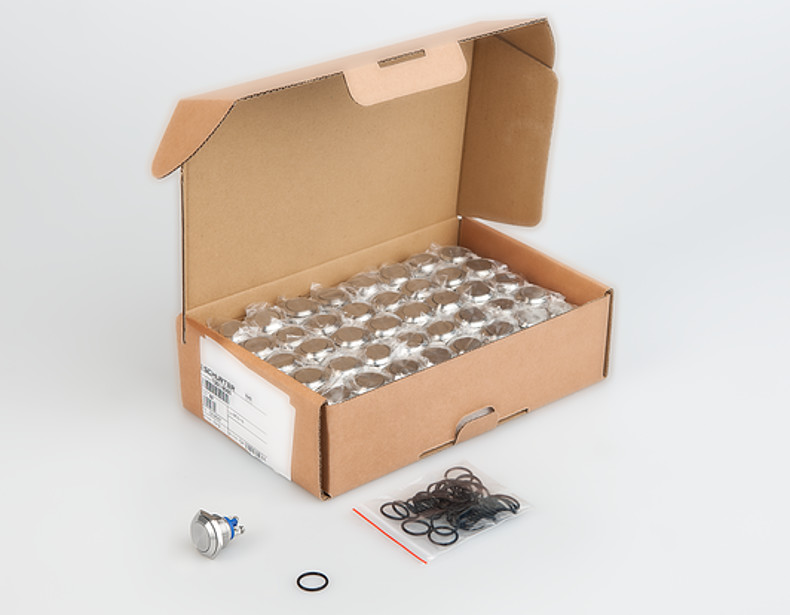

- Actuating elements in ESD safe packaging
- Screw nuts and sealing rings in a bag (enclosd in the box)
- Micro switches (enclosed in the box)

Short Table of Variants MCS ES 18 Open complete table MCS ES 18

Switching current

Switching current

Current that flows through the contacts after closing and before opening

Switching Voltage

Switching Voltage

Voltage between the contacts before closing or after opening.

Contact Material Order Number

Variant Details

The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular

Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check

The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

[A]   [VAC/ VDC]
2 A AC/DC 35 ␠ VAC/VDC Ag 1301.9560 ...
Nut with gasket are enclosed in the box.

Packaging unit 40 in cardboard box
