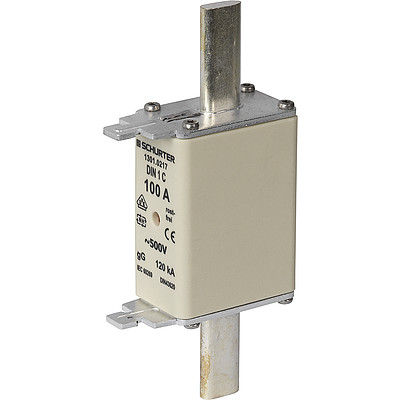

NH-DIN1 - DIN1C 500V  DIN 1 C 1301.0217
DIN 1 C 1301.0217

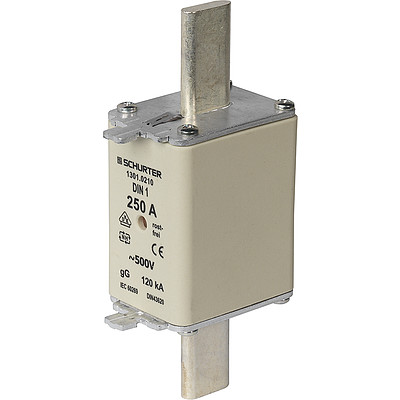

NH-DIN1 - DIN1C 500V  DIN 1 1301.0210
DIN 1 1301.0210
NH-DIN1 - DIN1C 500V  DIN 1 C 1301.0217
NH-DIN1 - DIN1C 500V  DIN 1 1301.0210

Series: NH-DIN1 - DIN1C 500V

Fuse NH-DIN1 - DIN1C 500V (gG)

Free Sample Request

11 Variants


  • According to IEC 269
  • According VDE 0636
  • Selectiviti 1:1.6
  • Removal tags energized

Unique Selling Proposition

  • Characteristic gG
  • Full-range fuse-links for general applications

Rated Current In

25-  250 A

Rated Voltage

500 VAC

Breaking Capacity

120 kA

Rated Power Operating Frequency fe

50 Hz

Contact blade

Full contact blades, Cu silvered

Characteristic resistance

even with alternating load; nonagin to VDE 0636


Combi indicator

Basic Design



Metal components

corrosion-resistant (rustproof)

Power Dissipation (Watt) operating temperature max. The power dissipation is the so called power loss at rated current load and operation temeperature acc. VDE 0636 . It is to be measeured in Watt at AC condition. The voltage tap is to be assured that the power dissipation of the blade contacts are included. This means the measure contact need to be applied at the ends of the blade contacts. The standard VDE 0636 part 1 and 2 requires that following maximal permissiable power losses are not exceeded.

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in   Details about Approvals


The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type:

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 40052740


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.


Dimensions [mm]

1) Centre indicator
2) Flat indicator


DIN1 25 - 250 A, 500V

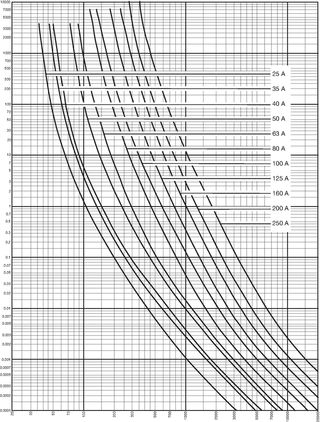

Time in Seconds
Effective value of the melting current (A) + - 8%

Current limiting diagram

The prospective short circuit current is the value of the current, that would flow if there was no protection in the circuit.
ID␉Let-through courrent
IG␉Value of DC component
IP␉Prospective short-circuit current
IS␉Short-circuit peak current
X␉Factor (X=2 für cosφ=0, X=1 für cosφ=1)

Short Table of Variants NH-DIN1 - DIN1C 500V Open complete table NH-DIN1 - DIN1C 500V

Rated current Style Power Loss E-No. A=Most Popular

A=Most Popular

Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check

The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

[A]   [Compact]   [W]
25 C 2.4 840501119  A  ...
35 C 3.0 840501139  A  ...
40 C 3.7 840501149  A  ...
50 C 4.1 840501159  A  ...
63 C 6.6 840501179  A  ...
80 C 8.0 840501199  A  ...
100 C 9.4 840501209  A  ...
125 C 11.8 840501219  A  ...
160 - 14.6 840101239  A  ...
200 - 18.0 840101249  A  ...
250 - 20.0 840101269  A  ...

Most Popular.

Packaging unit 3 Pcs


en prod By changing the catalog version (Desktop <> Mobile), the system is resetting the chosen filters
