Nut for fuse holder  Metal Nut
Metal Nut
Nut for fuse holder  Plastic Nut
Plastic Nut
Nut for fuse holder  Metal Nut
Nut for fuse holder  Plastic Nut

Series: Nut for fuse holder

Mounting accessories for fuse holder

Free Sample Request

5 Variants

Admissible Ambient Temp.

-40 °C to 85 °C

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.


Dimension [mm]






Short Table of Variants Nut for fuse holder Open complete table Nut for fuse holder

Suitable for Designation Material Order Number

Variant Details

The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular

Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check

The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

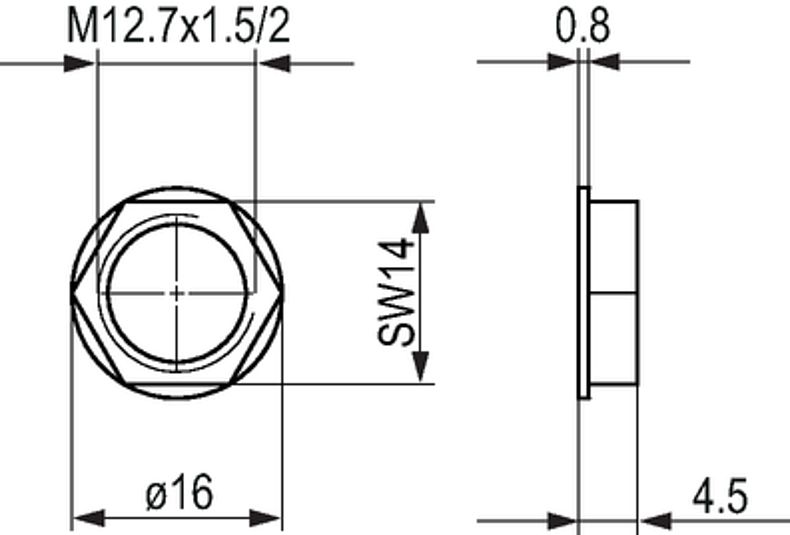

FEF, FEP, FEU, FIN, FIO, FPG1, FPG2, SWA1 (Frontpl), SWA2 (Print) Plastic nut M12.7 x 1.5 Plastics 0098.0043 ...

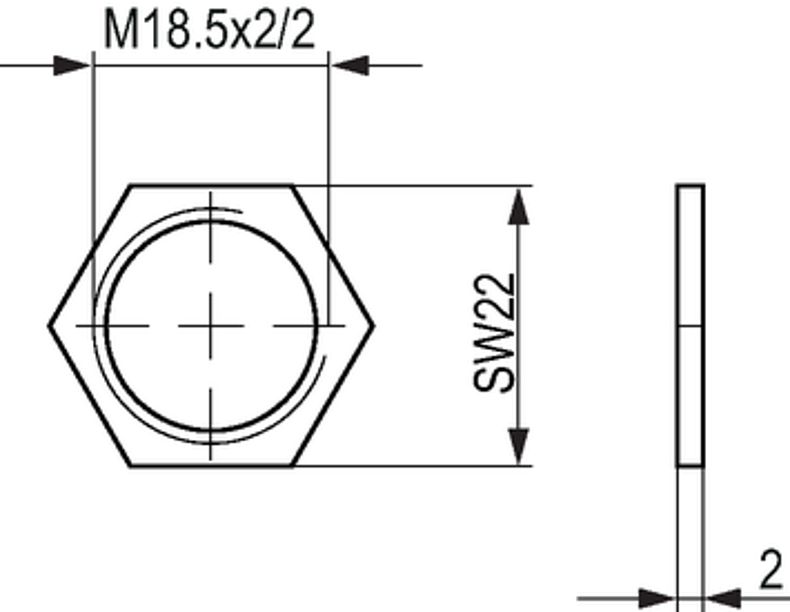

FIZ, FUL Metal nut M18.5 x 2 Metal 3-129-864 ...

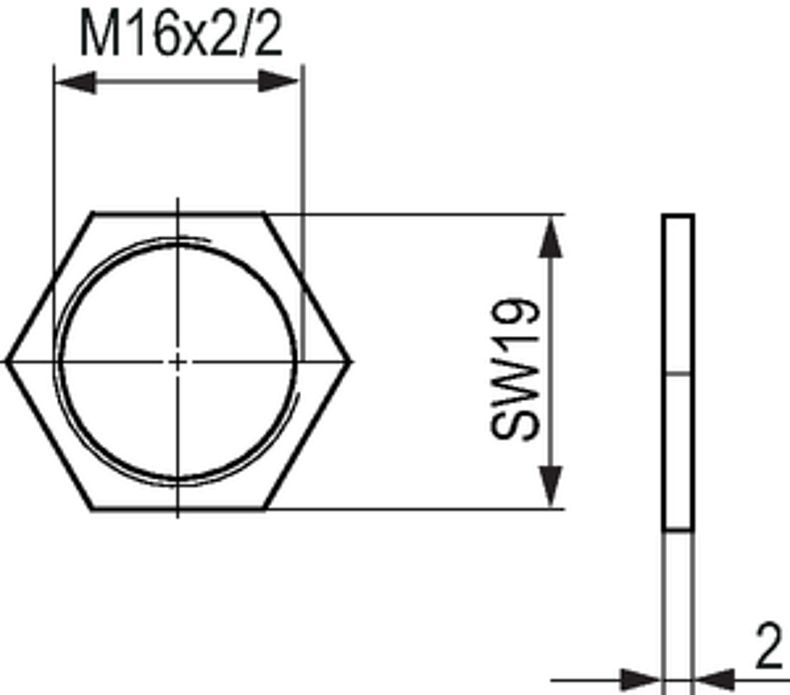

FEC Metal nut M16 x 2 Metal 3-129-865 ...

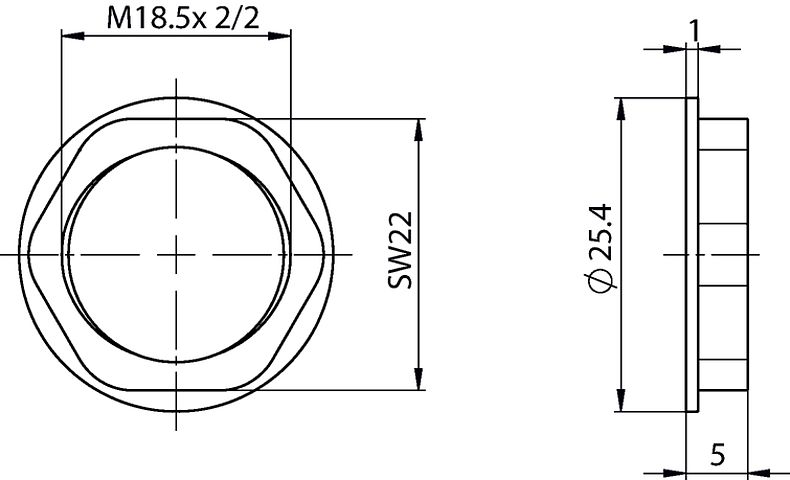

FIZ, FUL Plastic nut M18.5 x 2 Plastics 3-143-896 ...

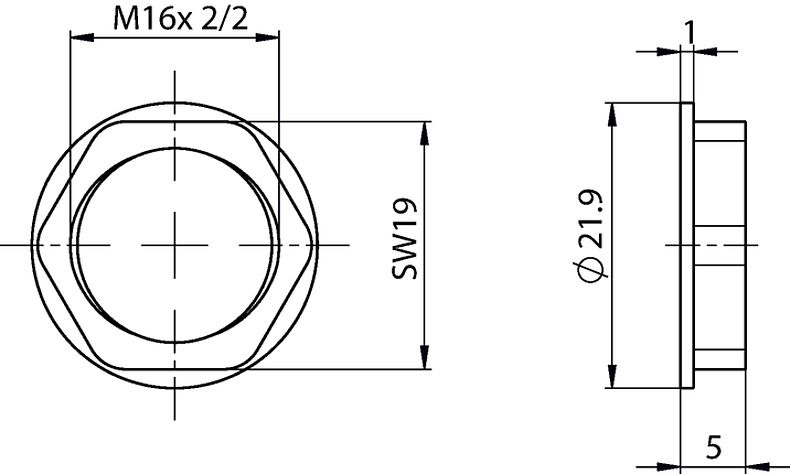

FEC Plastic nut M16 x 2 Plastics 3-143-897 ...
