PS 1061  PS 1061 Test Probe, Ø 2 mm, 10 A

Series: PS 1061

PS 1061 Test Probe, Ø 2 mm, 10 A

Free Sample Request


  • Test Probe
  • Diameter 2.0 mm


2 mm

Rated current

10 A

Allowable Operation Temperature

-25 °C to 70 °C

Resistance to Soldering Heat

260 °C / 5 sec acc. to IEC 60068-2-20 , Test Tb, method 1A


0.5 g

Material: Housing

Thermoplastic (PC), UL 94V-2

Surface of contacts

gold plated , Thickness 1.0 µm

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

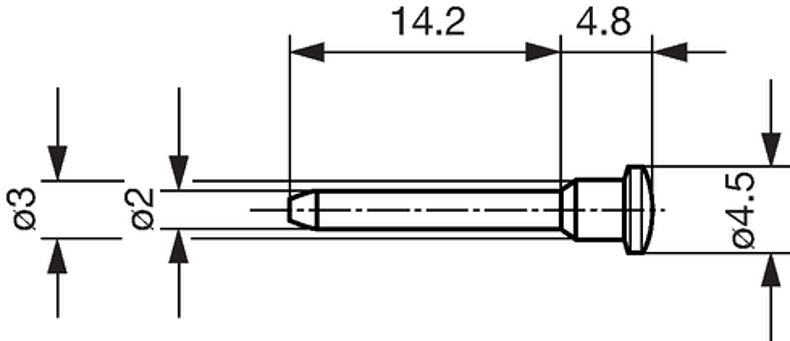

Dimensions [mm]

Short Table of Variants PS 1061 Open complete table PS 1061

Product group Color Order Number

Variant Details

The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular

Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample

Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check

The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

Test Probe red 0040.1062 ...

Packaging unit 100 Pcs

Mating Outlets/Connectors (5)

[Swipe to the left and right for more options]

PB 1011

PB 1011, 1 contact, 10 A, Test Jack

PB 1021

PB 1021, 1 contact, 3 inputs, 6.3 A, Test Jack

PB 1101

PB 1101, 10 A, Test Jack

PB 1111

PB 1111, 1 contact, 10 A, Test Jack

PB 1151

PB 1151, 6.3 A, Test Jack
