Series: TA45-ACC

Accessories to TA45

Free Sample Request

6 Variants


Description

  • Covers for IP54 or IP65
  • Locking device
  • Flat gaskets
  • Raised collar

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

040190000000006682
LOADING...

Dimension [mm]

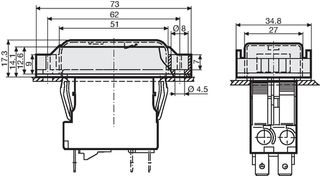

AZZ04

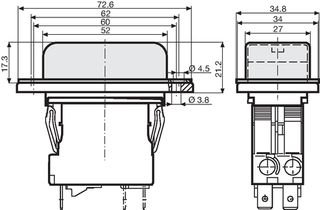

AZZ05

AZZ51

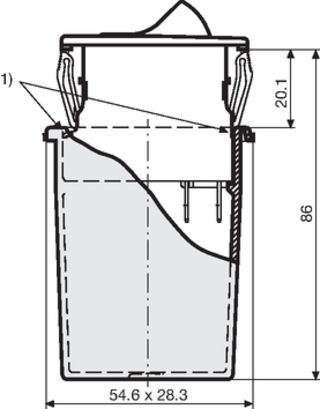

Snap-on fastener

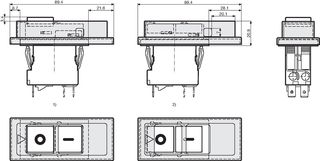

AZZ71

1) CBE switchable
2) CBE not switchable

Short Table of Variants TA45-ACC Open complete table TA45-ACC

Suitable for Type Designation Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

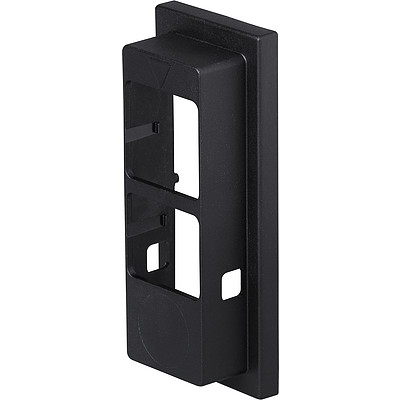

TA45 2 pole Push button CBE TA45-AZZ71 Locking device black, safety-lock type 4430.1625 ...
TA45 2 pole Push button, TA45 2 pole Rocker CBE TA45-AZZ51 Rear cover 4430.0519 ...

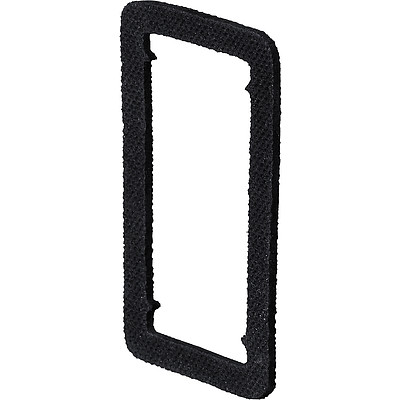

TA45 2 pole Push button CBE TA45-AZZ61 Flat gasket 4430.0499 ...
TA45 2 pole Rocker CBE TA45-AZZ31 Flat gasket 4430.0685 ...

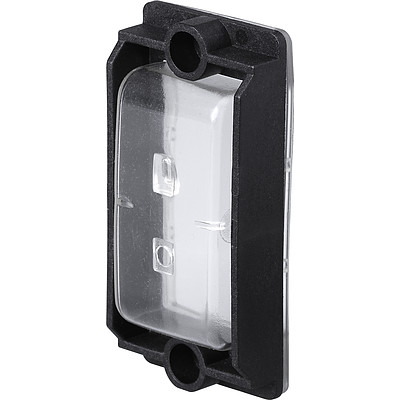

TA45 2 pole Rocker CBE TA45-AZZ04 Screw-on cover with collar 4430.0695 ...
TA45 2 pole Push button, TA45 3 pole Push button CBE TA45-AZZ05 Screw-on cover 4430.0835 ...
Order numbers 4430.1625 / 4430.0519 / 4430.0499 do not apply to variants with auxiliary contact.
