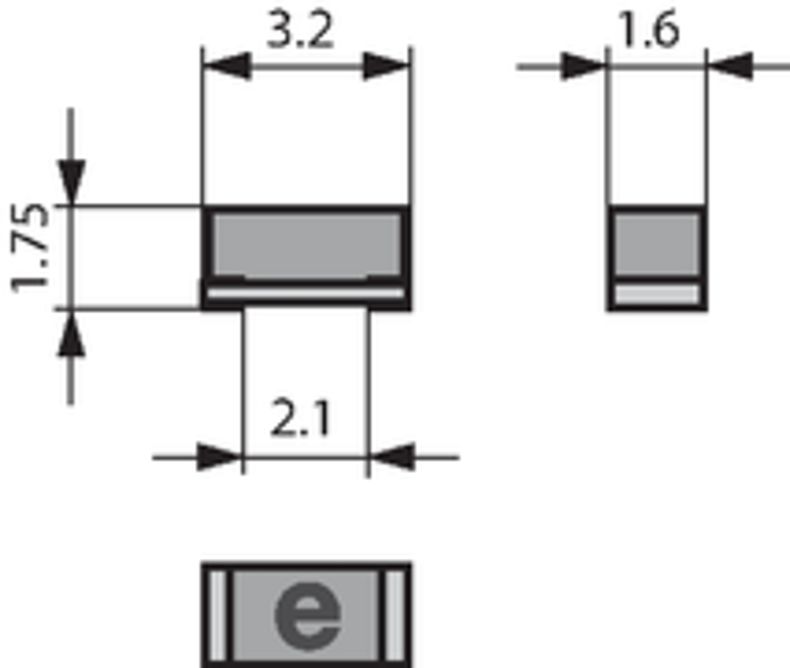

Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Description
- Complements USF 1206 with lower current ratings
- Impermeable to potting compound
Unique Selling Proposition
- Lowest voltage drop
- Very fast, precise opening
Applications
- Smart meters
- Battery protection
- Sensors
- Mobile devices
- Semiconductor protection
Rated Voltage
125 VAC, 63 VDC
Rated current
0.05 - 0.25 A
Breaking Capacity
100 A
Characteristic
Super-Quick-Acting FF
Mounting
PCB,SMT
Admissible Ambient Temp.
-55 °C to 90 °C
Climatic Category
55/090/21 acc. to IEC 60068-1
Material: Housing
Fiber-reinforced plastic, UL 94V-0
Material: Terminals
Gold-Plated Copper Alloy
Unit Weight
0.0133 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
Letter (see variants)
Soldering Methods
Reflow
Soldering Profile
Solderability
245 °C / 3 sec acc. to IEC 60068-2-58, Test Td
Resistance to Soldering Heat
260 +0/-5 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1
Moisture Sensitivity Level
MSL 1, J-STD-020
Case Resistance
acc. to EIA/IS-722, Test 4.7
>100 MΩ (between leeds and body)
Moisture Sensitivity Level
MIL-STD-202C, Method 103 B (Level 1)
IPC/JEDEC-J-STD-20C (85°C@85%RH@240h)
Thermal Shock
IEC 60068-2-14, CECC 4200 (5 Cycles 40°C - 125°C)
Resistance to Solvents
MIL-STD-202, Method 215
(EIA-722, 4.11)
Terminal Strength
MIL-STD-202, Method 211A
(Deflection of board 1 mm for 1 minute)
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: USFF 1206
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
UL | UR File Number: E41599 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | UL 248-14 | Low voltage fuses - Part 14: Supplemental fuses |
|
Designed according to | CSA22.2 No. 248.14 | Low-Voltage Fuses - Part 14: Supplemental Fuses |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | SCHURTER strives to offer our customers halogen free products. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Derating Curves
Pre-Arcing Time
| Rated Current In | 1.0 x In min. | 2.5 x In max. | 10.0 x In min. | 10.0 x In max. |
|---|---|---|---|---|
| 0.05 A | 4 h | 5 s | 0.1 ms | 1 ms |
| 0.125 A | 4 h | 5 s | 0.1 ms | 3 ms |
| 0.16 A - 0.25 A | 4 h | 5 s | 0.1 ms | 1 ms |

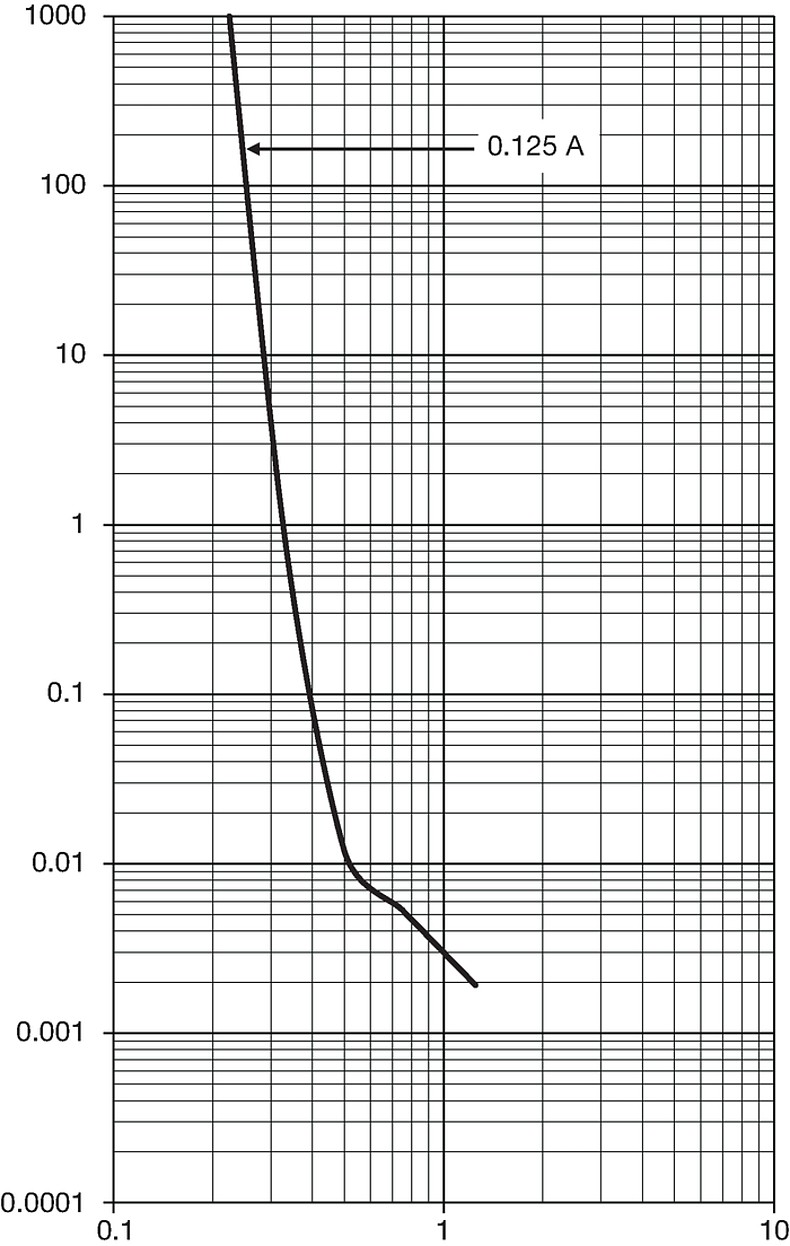

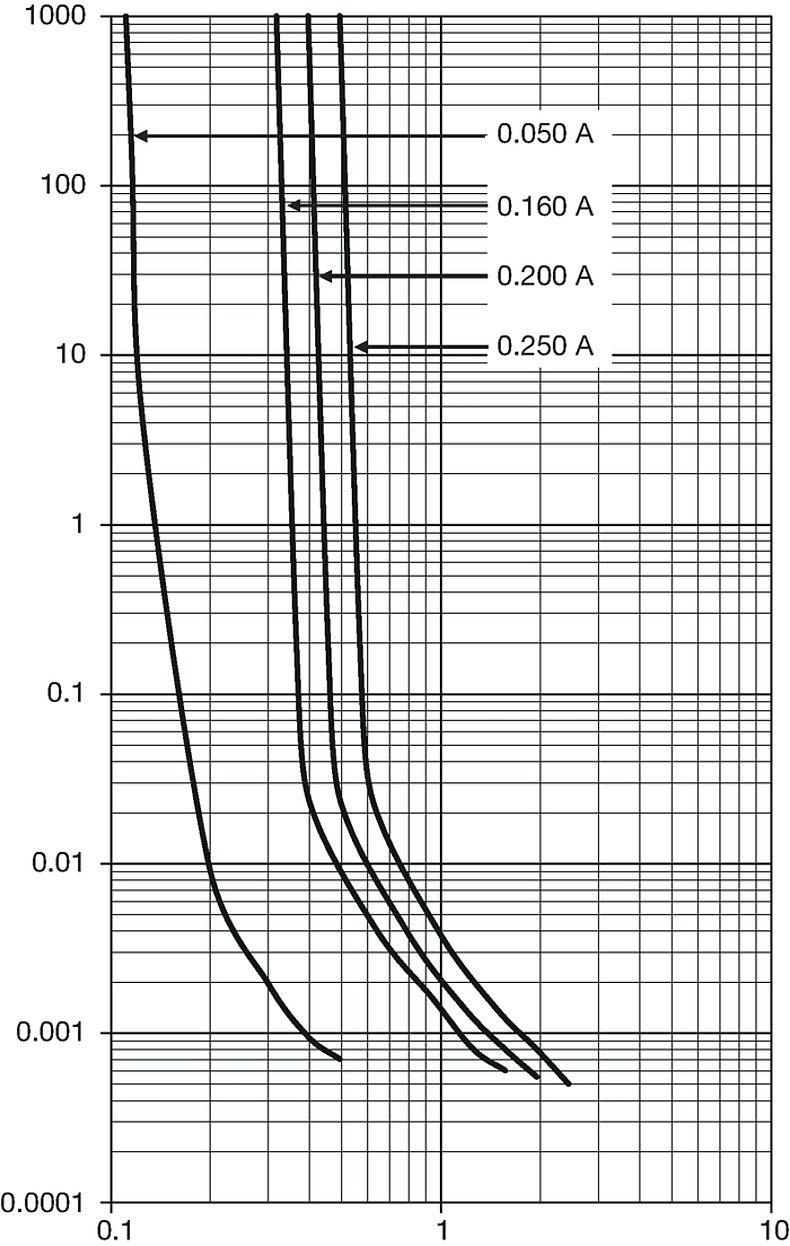

Time-Current-Curves
Short Table of Variants USFF 1206 Open complete table USFF 1206
| Rated Current [A] | Rated Voltage [VAC] | Rated Voltage [VDC] | Order Number | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 | 125 | 63 | 3413.0002.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.05 | 125 | 63 | 3413.0002.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.05 | 125 | 63 | 3413.0002.24 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.05 | 125 | 63 | 3413.0002.26 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.125 | 125 | 63 | 3413.0006.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.125 | 125 | 63 | 3413.0006.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.125 | 125 | 63 | 3413.0006.24 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.125 | 125 | 63 | 3413.0006.26 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.16 | 125 | 63 | 3413.0008.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.16 | 125 | 63 | 3413.0008.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.16 | 125 | 63 | 3413.0008.24 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.16 | 125 | 63 | 3413.0008.26 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.2 | 125 | 63 | 3413.0009.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.2 | 125 | 63 | 3413.0009.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.2 | 125 | 63 | 3413.0009.24 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.2 | 125 | 63 | 3413.0009.26 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.25 | 125 | 63 | 3413.0010.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.25 | 125 | 63 | 3413.0010.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.25 | 125 | 63 | 3413.0010.24 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.25 | 125 | 63 | 3413.0010.26 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1) 10 A @ 125 VAC, 100 A @ 32 VAC, 100 A @ 63 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Unit
acc. IEC 60286-3 Type 2a |
|
21.11.2024
