231660  Clip, 10.3 x 38 mm, UR

Series: 231660

Clip, 10.3 x 38 mm, UR

Free Sample Request

Description

  • Through hole mounting

Applications

  • Combiner Boxes in Photovoltaic Systems

Fuse-Link

10.3 x 38 mm

Mounting

PCB

Terminal

Solder THT

Rated current

20 A (UL)

Degree of Protection

IP00

Material: Terminals

see variants

Unit Weight

4.1 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen, Type, Certification marks

Soldering Methods

Wave
Soldering Profile

Solderability

235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A

Contact Resistance

< mΩ at 100 mA

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: 231660

Approval Logo Certificates Certification Body Description
Approval marks UR UL UR File Number: E41738


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks UL Designed according to UL 4248-1 Industrial Control Equipment


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010020420000000545
LOADING...

Dimension [mm]

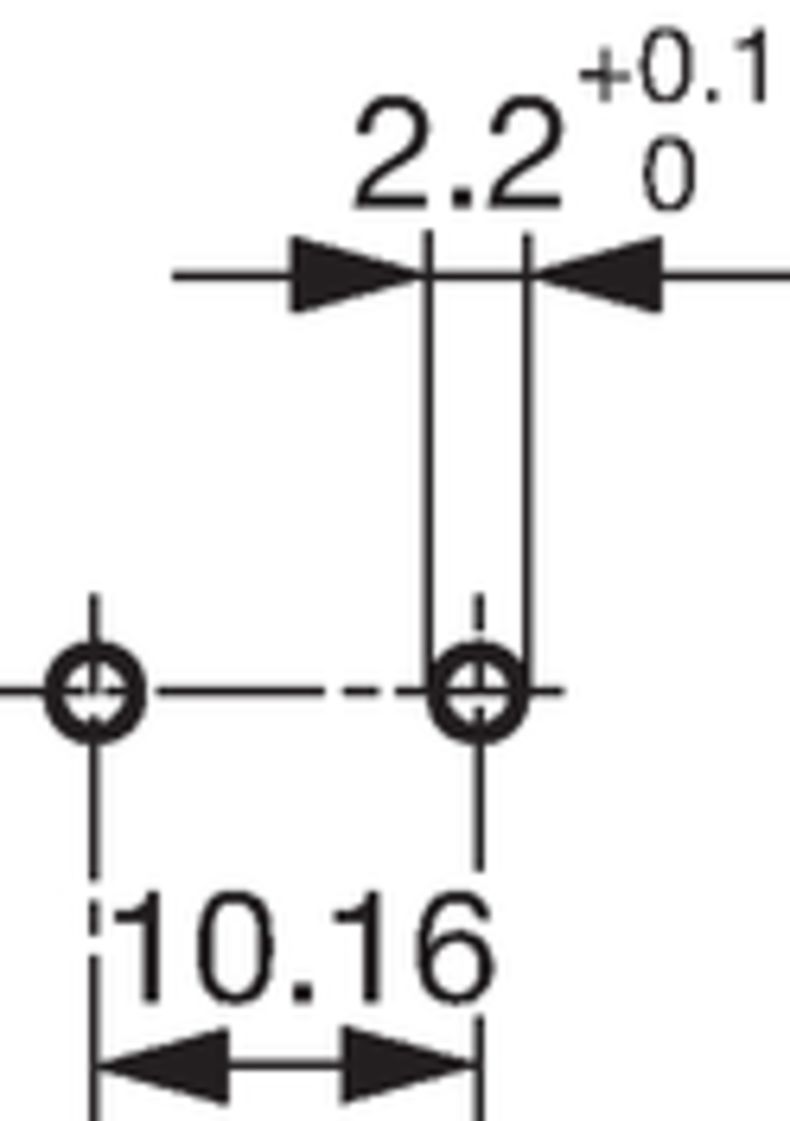

Drilling diagram
