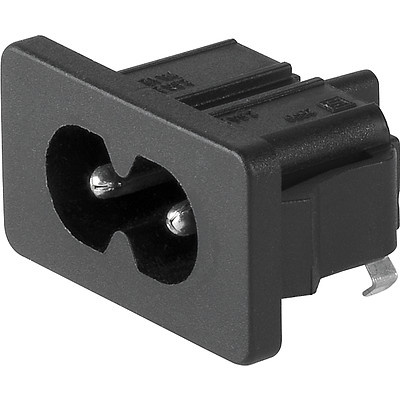

2570-1110

2570-2210

2570-1210

2570-1310

Series: 2570

IEC Appliance Inlet C8, Solder, PCB or Quick-connect Terminal

4 Variants

Connectors (Inlets/Outlets)

70° C

Approvals and Compliances

CAD

Description

Panel mount: Splitpanel (sandwich) or snap-in version front side
Appliance Inlet, Pin temperature 70 °C, Protection class II
Solder / Quick Connect / PCB Terminal

Unique Selling Proposition

Complete approvals
Well-priced product

Detailed request for product

Details 2570

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

2.5 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

2.5 A / 250 VAC; 60 Hz

7 A / 125 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2.5 kVAC between L-N
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP20 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class II acc. to IEC 61140

Panel Thickness S

See details in drawing
Snapper

Snap-in: from 0.6 mm to 2.0 mm
Sandwich: 1.5 mm

Material: Housing

PA6, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C8 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 2.5 A, Protection Class II

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 2570

Certificates	Certification Body	Description
VDE Approvals	VDE	VDE Certificate Number: 40044595
UL Approvals	UL	UR File Number: E96454
CCC Approvals	CCC	CCC Certificate Number: 2016180204001695

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Halogen Free	SCHURTER AG	SCHURTER strives to offer our customers halogen free products.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimensions [mm]

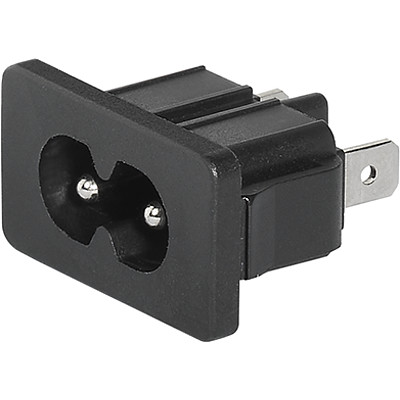

	2570-1310 Snap-in mounting with quick connect terminal

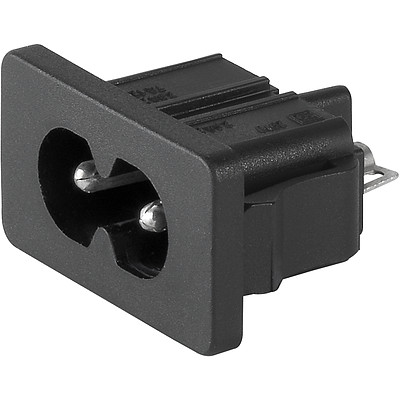

	2570-1110 Snap-in mounting with quick solder terminal

	2570-1210 Snap-in mounting with PCB terminal

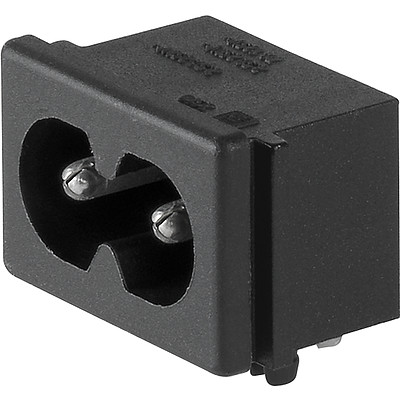

	2570-2210 Sandwich mounting with PCB terminal

Short Table of Variants 2570 Open complete table 2570

Type	Panel mounting	Panel Thickness s [mm]	Order Number	...

2570-1110	Snap-in	0.6 - 2.0	4300.0102	...
2570-1210	Snap-in	0.6 - 2.0	4300.0103	...
2570-1310	Snap-in	0.6 - 2.0	4300.0105	...
2570-2210	Sandwich	1.5	4300.0104	...

Packaging unit

100 Pcs

Table of Variants 2570

Type	Panel mounting	Panel Thickness s [mm]	Terminal	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

2570-1110	Snap-in	0.6 - 2.0	Solder terminals	4300.0102	100
2570-1210	Snap-in	0.6 - 2.0	PCB terminals	4300.0103	100
2570-1310	Snap-in	0.6 - 2.0	Quick connect 4.8 x 0.8 mm	4300.0105	100
2570-2210	Sandwich	1.5	PCB terminals	4300.0104	100

Packaging unit

100 Pcs

References / Document Downloads

Mating Components 2570

Mating Outlets/Connectors (4)

[Swipe to the left and right for more options]

6013.0474

QP009_Katalogbild_1_SGE_GST_PG07_Geraeteanschlussleitung

Cord Sets 2.5 A, IEC Connector, Black, 2.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, H05VVH2-F 2x0.75 mm2 2m BLK, black

6013.0478

Cord Sets 2.5 A, IEC Connector, Black, 4.0 m, H03VVH2-F 2x0,75mm2, Connector IEC C7, H05VVH2-F2G0.75, black

6010.5274

QP01_Katalogbild_1_SGE_GST_PG07_Geraeteanschlussleitung

Cord Sets 2.5 A, North America, Black, 2.0 m, SVT 2x18AWG, Connector IEC C7, NISPT-2, black

6010.5278

Cord Sets 2.5 A, North America, Black, 4.0 m, SVT 2x18AWG, Connector IEC C7, NISPT-2, black
