Series: 5124

IEC Appliance Inlet C14 with Filter, very high attenuation, ECO design, Screw- or Snap-in Mounting

Free Sample Request

24 Variants


Connectors (Inlets/Outlets)

C14
Connector Logo
70° C

Description

  • Compact IEC C14 Appliance Inlet with Filter
  • Snap-in or screw-on mounting:
  • Appliance Inlet Protection class I,
  • Line filter in standard and medical version

Unique Selling Proposition

  • Very high attenuation
  • V-Lock cord retaining
  • Metal flange for optimal shielding
  • Compact design

Characteristics

  • Compact filter with very high attenuation
    Optimal shielding due to completely closed filter case, unpotted
  • Ideal for application with high disturbance level
  • Suitable for applications according IEC/UL 62368-1
    Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Other versions on request

  • Snap-in for panel thickness >2mm to 3mm
  • flexible wire with various lenghts
  • Class X1- and Y1-capacitors for enhanced withstand voltage
  • Variant with metal flange for front or rear mounting

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

Leakage Current


The leakage current is an electric current flowing in an undesirable current path. In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

Dielectric Strength


Information abou the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

Climatic Category


Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects.
Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Protection Class


Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.

Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminals 6.3 x 0.8 mm

Panel Thickness S

Panel Thickness S



See details in drawing
Snapper

Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 2 mm
(all steps with one variant)

Material

Themoplast / steel tin-plated, black / metallic, UL 94V-0

Appliance inlet/-outlet

Appliance inlet/-outlet


Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42

Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Line Filter

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medical: < 0.1 mA

Standard and Medical Version, IEC 60939, UL 60939-3, CSA C22.2 no. 8
Technical Details

MTBF

MTBF


The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 3'000'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: 5124

Approval Logo Certificates Certification Body Description
Approval marks ENEC 10 VDE Certificate Number: 40016382
Approval marks cURus UL UR File Number: E495089
Approval marks CQC CQC CQC Certificate Number: CQC20001259802


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Partners IEC_Certification_Body Designed according to IEC 60939 Passive filters for suppressing electromagnetic interference
Partners UL_Certification_Body Designed according to UL 498 Standard for Attachment Plugs and Receptacles
Partners UL_Certification_Body Designed according to UL 60939-3 Electromagnetic interference filters
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 42 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Partners CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Partners IEC_Certification_Body Suitable for applications acc. IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Components V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Environment_Safety Medical.jpg SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

020060160000001656
LOADING...

Dimensions [mm]

Front side mounting with plastic flange

Snap-in mounting from front side

Dimensions for class I version also apply class II


Diagrams

Standard version / Medical version M80

1) Line
2) Load
Medical Version (M5)

1) Line
2) Load

Technical Data of Filter-Components

Rated Current [A] Filter-Type Inductances L [mH] Capacitance CX [nF] Capacitance CY [nF] R [MΩ]
1 Standard version 2 x 89 220 2.2 1
2 Standard version 2 x 33 220 2.2 1
4 Standard version 2x 8.7 220 2.2 1
6 Standard version 2x 4.7 220 2.2 1
10 Standard version 2 x 1.5 220 2.2 1
15 Standard version 2 x 0.6 220 2.2 1
1 Medical Version (M5) 2 x 89 220 - 1
2 Medical Version (M5) 2 x 33 220 - 1
4 Medical Version (M5) 2x 8.7 220 - 1
6 Medical Version (M5) 2x 4.7 220 - 1
10 Medical Version (M5) 2 x 1.5 220 - 1
15 Medical Version (M5) 2 x 0.6 220 - 1

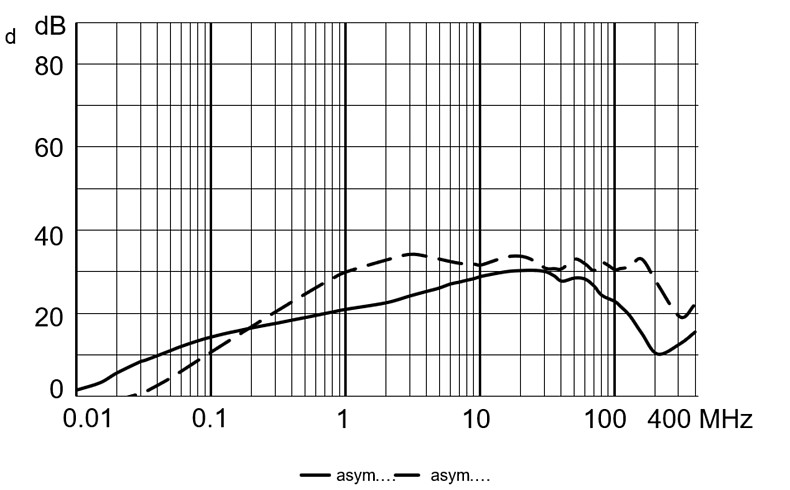

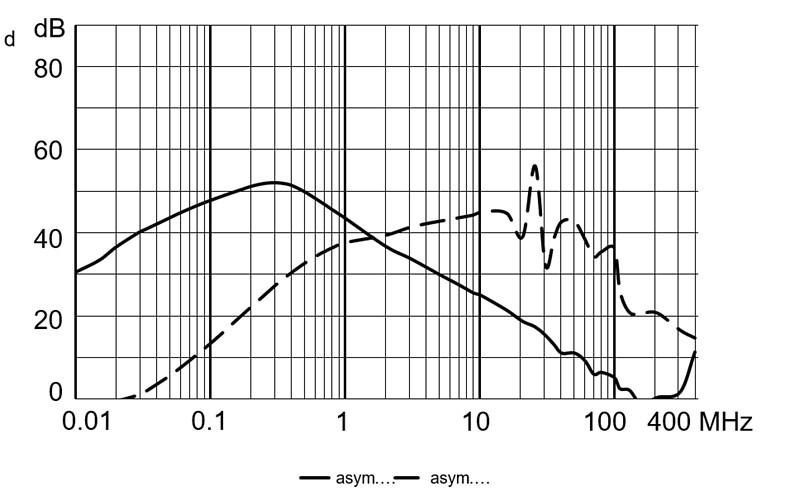

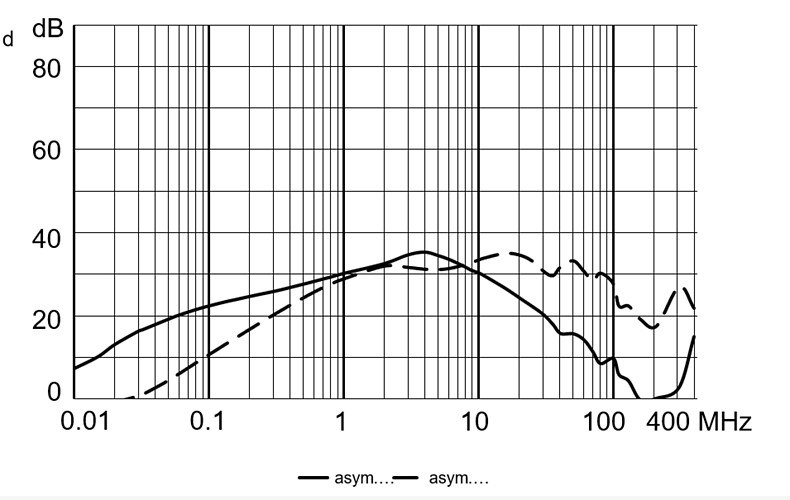

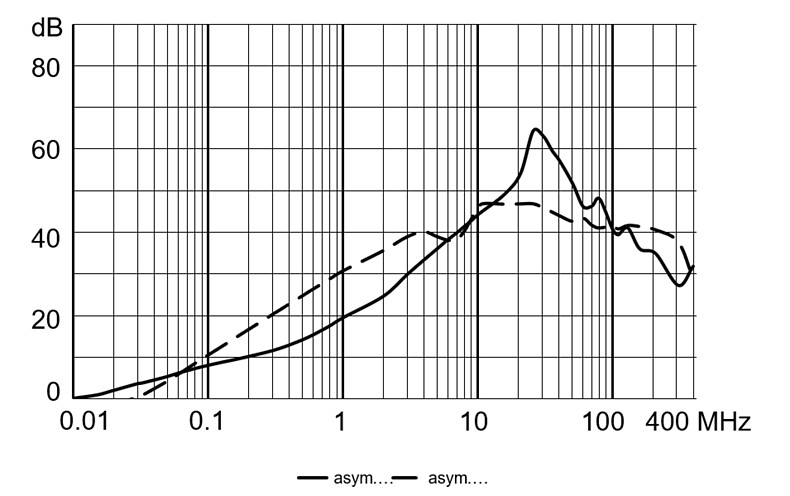

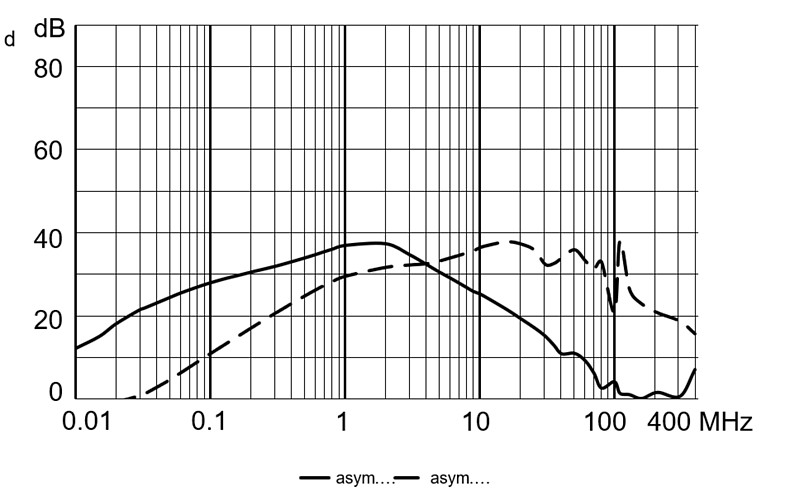

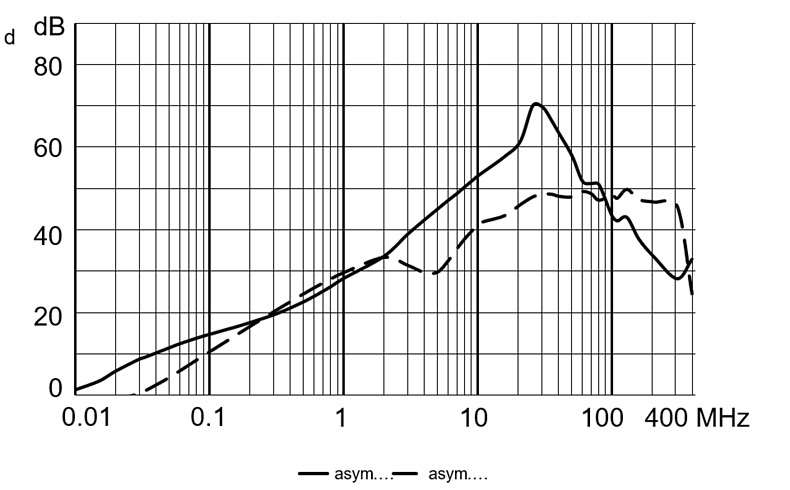

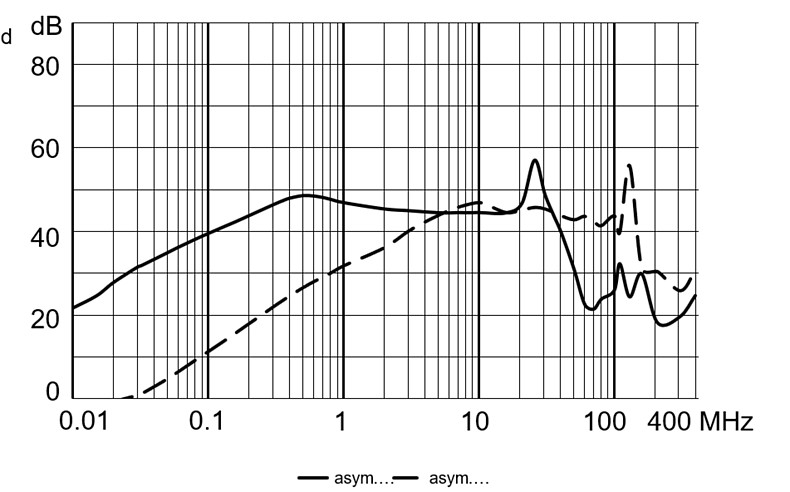

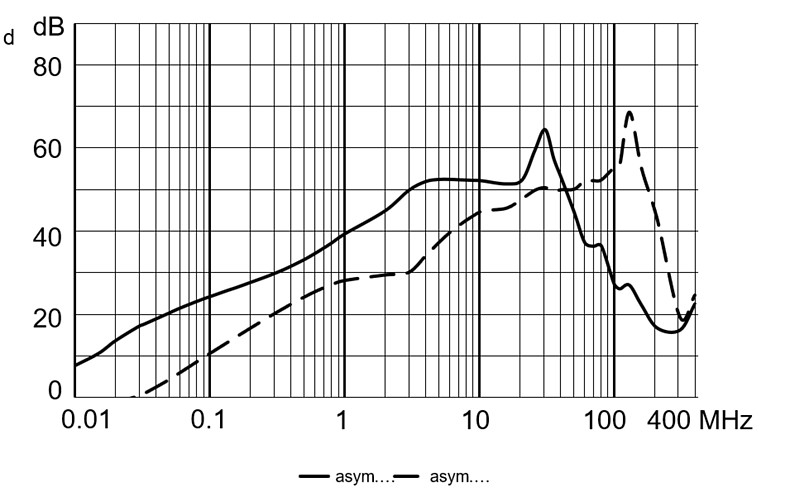

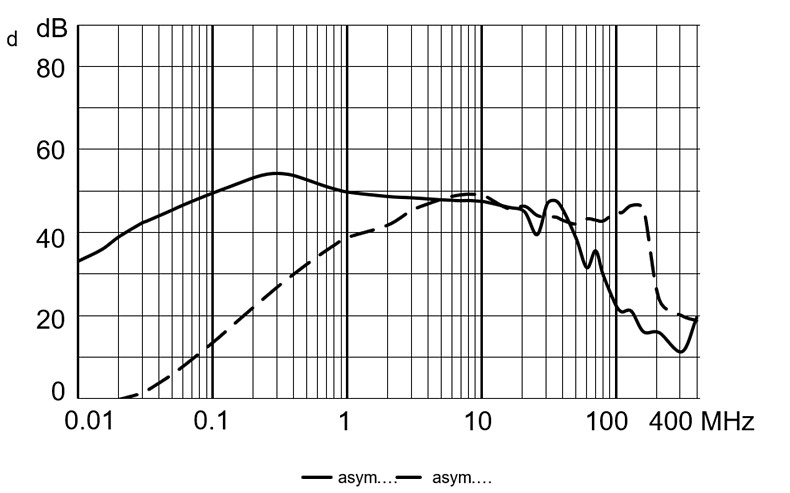

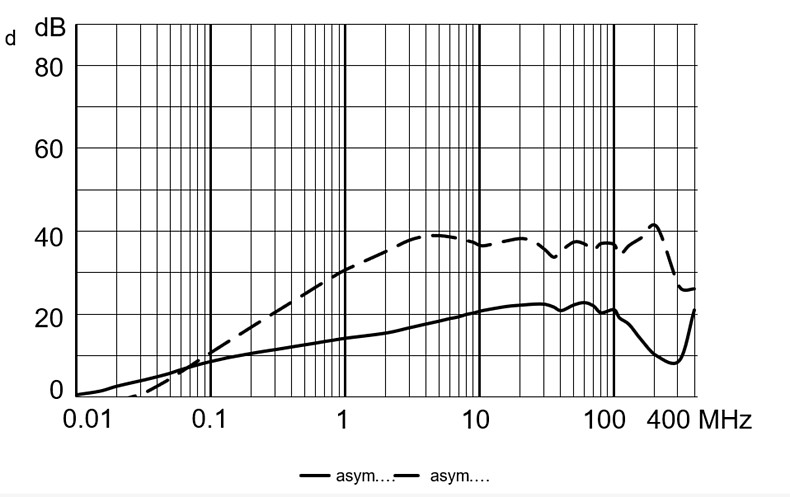

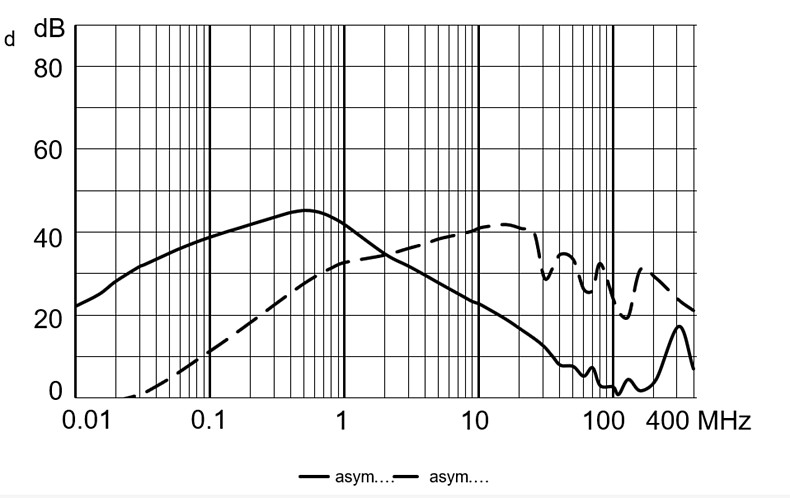

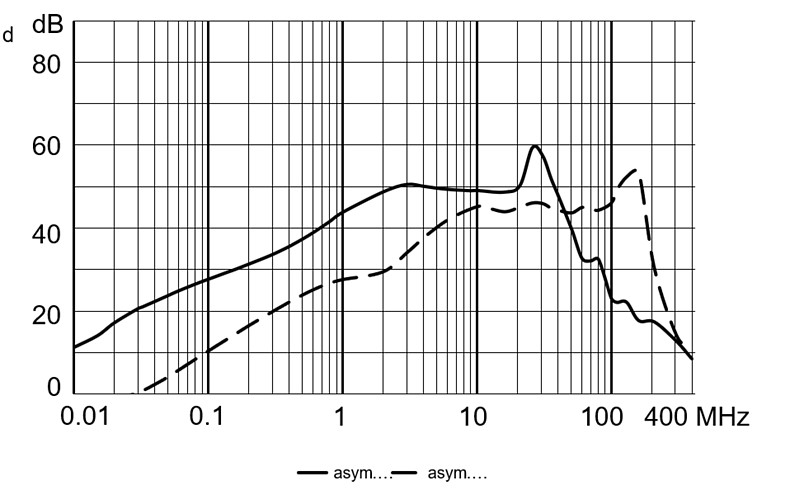

Attenuation Loss

1A

2A

4A

6A

10A

15A

1A

2A

4A

6A

10A

15A


Short Table of Variants 5124 Open complete table 5124

Rated Current [A]

Rated current


Max. rated current according to IEC vs. UL/CSA- approval for the listed type.
Further details see data sheet

Filter-Type

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medical: < 0.1 mA

Mounting

Mounting Versions


The products can be installed differently. Therefore the attachment method is primarily of interest. Next it must be clarified whether the component will need to be mounted from the front or the back or if it can be mounted on a circuit board.

Further criteria as snap method or snap-position are explained in order to distinguish the different offers also .

Full details for installation are explained in detail in the general product information.
Mounting

Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

1 Standard version Snap-in 3-130-941 ...
2 Standard version Snap-in 3-130-962 ...
4 Standard version Snap-in 3-130-963 ...
6 Standard version Snap-in 3-130-964 ...
10 Standard version Snap-in 3-130-965 ...
15 Standard version Snap-in 3-130-966 ...
1 Standard version Screw 3-121-370  A  ...
2 Standard version Screw 3-130-953  A  ...
4 Standard version Screw 3-130-954  A  ...
6 Standard version Screw 3-130-955  A  ...
10 Standard version Screw 3-130-956  A  ...
15 Standard version Screw 3-121-378  A  ...
1 Medical Version (M5) Snap-in 3-130-967 ...
2 Medical Version (M5) Snap-in 3-130-968 ...
4 Medical Version (M5) Snap-in 3-130-969 ...
6 Medical Version (M5) Snap-in 3-130-970 ...
10 Medical Version (M5) Snap-in 3-130-971 ...
15 Medical Version (M5) Snap-in 3-130-972 ...
1 Medical Version (M5) Screw 3-130-935 ...
2 Medical Version (M5) Screw 3-130-936 ...
4 Medical Version (M5) Screw 3-130-937 ...
6 Medical Version (M5) Screw 3-130-938 ...
10 Medical Version (M5) Screw 3-130-939 ...
15 Medical Version (M5) Screw 3-130-940 ...

Most Popular.

- 15 A version only according UL/CSA

Packaging unit 10 Pcs

020060160000001656
LOADING...
Mating Outlets/Connectors (6)

[Swipe to the left and right for more options]

4787

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

4788

4788, Mounting: Snap-in version, Appliance Outlet: IEC Solder / Quick Connect, 10 A, Suitable for appliances with protection class I

5091

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

Mating Outlets/Connectors shuttered (3)

[Swipe to the left and right for more options]

4783

4783 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

VAC13KS

VAC13KS, Overview, V-Lock cord retaining, diverse Connector IEC C13, diverse, black

VAC17KS

VAC17KS, V-Lock cord retaining, diverse m, Connector IEC C17, diverse, black / grey / white

Accessories (4)

[Swipe to the left and right for more options]

Wire Harness

Wire harness for SCHURTER products

Assorted Covers

Rear Cover

RC320

Rear Cover for Power Entry Module

Cord retaining kits

Cord retaining strain relief


14.09.2023

it prod Cambiando la versione del catalogo (Desktop <> Mobile), il sistema resetta i filtri scelti
