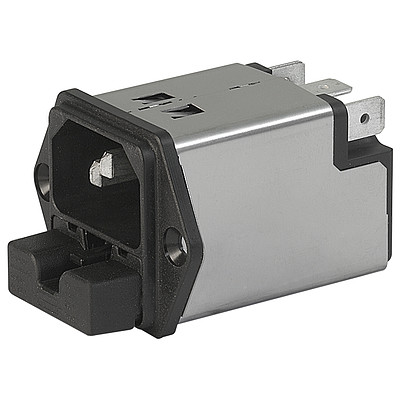

5220  Screw-on from front side with 2-pole fuseholder
Screw-on from front side
with 2-pole fuseholder
5220  Snap-in mounting from front side with 2-pole fuseholder
Snap-in mounting from front side
with 2-pole fuseholder
5220  Screw-on from front side with 2-pole fuseholder
5220  Snap-in mounting from front side with 2-pole fuseholder

Series: 5220

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole

Free Sample Request

24 Variants


Connectors (Inlets/Outlets)

C14
Connector Logo
70° C

Description

  • Panel mount: Snap-in or screw-on mounting front side
  • 3 Functions: Appliance Inlet Protection class I, Fuseholder for fuse-links 5 x 20 mm 2-pole, Line filter in standard and medical version
  • Quick connect terminals 6.3 x 0.8 mm

Unique Selling Proposition

  • Ultra-compact design
  • Recessed faston connectors
  • High quality filter case made of stainless steel
  • Highly resistant since potted filter

Characteristics

  • All single elements are already wired
  • Plug removal necessary for fuse-link replacement
  • Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)
    For applications according IEC/UL 62368-1 we recommend variants with bleed resistor

Ratings IEC

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

1 - 10 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Quick connect terminals 6.3 x 0.8 mm

Panel Thickness S

Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

C14 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Fuseholder

2-pole, Shocksafe category PC2 acc. to IEC 60127-6,
for fuse-links 5 x 20 mm

Rated Power Acceptance @ Ta 23 °C

5 x 20: 1.6 W (2-pole)

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Line Filter

Standard and Medical Version, IEC 60939-2, UL 60939-3, CSA C22.2 no. 8
Technical Details

MTBF

> 2'300'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: 5220

Approval Logo Certificates Certification Body Description
Approval marks ENEC_10 VDE Certificate Number: 101307
Approval marks cURus UL UR File Number: E495089


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Approval marks IEC_Certification_Body Designed according to IEC 60939-2 Passive filters for suppressing electromagnetic interference
Approval marks IEC_Certification_Body Designed according to IEC 60127-6 Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Approval marks UL Designed according to UL 60320-1 Standard for Attachment Plugs and Receptacles
Approval marks UL Designed according to UL 60939-3 Passive filters for suppressing electromagnetic interference
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 60320-1 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Environment_Safety Glow_Wire_Proof SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Environment_Safety Medical SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

020060160000001505
LOADING...

Dimension [mm]

Screw-on mounting type 5220

Snap-in mounting type 5220


Diagrams

5220 Standard Version

1) Line
2) Load
5220 Medical Version (M5)

1) Line
2) Load

Derating Curves

2-pole

Admissible power acceptance in Watt per pole
Ambient air temperature Ta °C


Technical Data of Filter-Components

Rated Current [A] Filter-Type Inductances L [mH] Capacitance CX [nF] Capacitance CY [nF] R [MΩ]
1 Standard version 2 x 11 47 2.2 -
2 Standard version 2 x 4 47 2.2 -
4 Standard version 2 x 1.6 47 2.2 -
6 Standard version 2 x 0.7 47 2.2 -
8 Standard version 2 x 0.6 47 2.2 -
10 Standard version 2 x 0.4 47 2.2 -
1 Medical Version (M5) 2 x 11 47 - 1
2 Medical Version (M5) 2 x 4 47 - 1
4 Medical Version (M5) 2 x 1.6 47 - 1
6 Medical Version (M5) 2 x 0.7 47 - 1
8 Medical Version (M5) 2 x 0.6 47 - 1
10 Medical Version (M5) 2 x 0.4 47 - 1

Attenuation Loss

1 A

2 A

4 A

6 A

8 A

10 A

1 A

2 A

4 A

6 A

8 A

10 A


Short Table of Variants 5220 Open complete table 5220

Rated Current [A] Filter-Type Panel mounting Order Number Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

1 Standard version Snap-in 5220.0143.1 ...
2 Standard version Snap-in 5220.0243.1 ...
4 Standard version Snap-in 5220.0443.1 ...
6 Standard version Snap-in 5220.0643.1 ...
8 Standard version Snap-in 5220.0843.1 ...
10 Standard version Snap-in 5220.1043.1 ...
1 Standard version Screw 5220.0123.1 ...
2 Standard version Screw 5220.0223.1 ...
4 Standard version Screw 5220.0423.1 ...
6 Standard version Screw 5220.0623.1 ...
8 Standard version Screw 5220.0823.1 ...
10 Standard version Screw 5220.1023.1 ...
1 Medical Version (M5) Snap-in 5220.0143.3 ...
2 Medical Version (M5) Snap-in 5220.0243.3 ...
4 Medical Version (M5) Snap-in 5220.0443.3 ...
6 Medical Version (M5) Snap-in 5220.0643.3 ...
8 Medical Version (M5) Snap-in 5220.0843.3 ...
10 Medical Version (M5) Snap-in 5220.1043.3 ...
1 Medical Version (M5) Screw 5220.0123.3 ...
2 Medical Version (M5) Screw 5220.0223.3 ...
4 Medical Version (M5) Screw 5220.0423.3 ...
6 Medical Version (M5) Screw 5220.0623.3 ...
8 Medical Version (M5) Screw 5220.0823.3 ...
10 Medical Version (M5) Screw 5220.1023.3 ...

Packaging unit 10 Pcs
