Series: AST

LED Holder for 3 mm and 5 mm LED

14 Variants

Approvals and Compliances

CAD

Description

PCB,:
Up to 8 holders possible
Arrangement in-line and in blocks
For 3 mm or 5 mm LED's

Detailed request for product

Details AST

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Climatical Data

Operating Temperature

-25 to 85 °C

Storage Temperature

-55 to 100 °C

Soldering Data

Solderability

235 °C / 2 sec acc. to IEC 60068-2-20 , Test Ta, method 1

Resistance to Soldering Heat

260 °C / 5 sec acc. to IEC 60068-2-20 , Test Tb, method 1A

Material

Socket

Thermoplastic

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimension [mm]

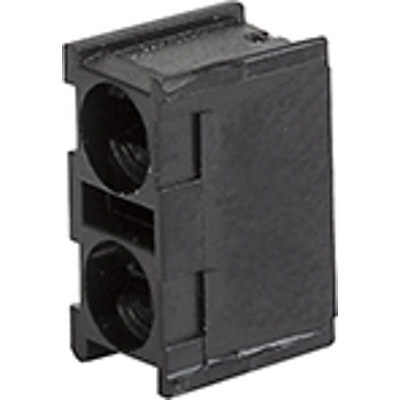

	AST single 3 mm / AST row 3 mm

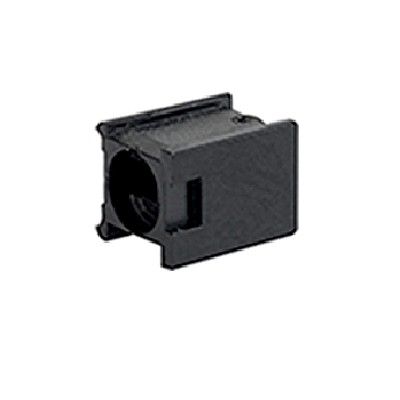

	AST double 3 mm / AST double row 3 mm

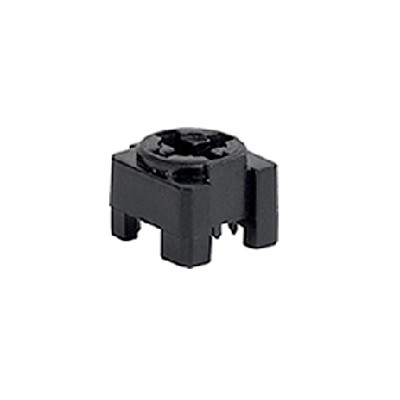

	AST row 5 mm

Order number key AST

Short Table of Variants AST Open complete table AST

Diameter LED	Type	Order Number	...

5 mm	1x4 Array	0035.9203	...
5 mm	1x3 Array	0035.9204	...
5 mm	1x2 Array	0035.9205	...
5 mm	1x1 Array	0035.9206	...
3 mm	1x1 Array	0035.9610	...
3 mm	1x2 Array	0035.9611	...
3 mm	1x3 Array	0035.9612	...
3 mm	1x4 Array	0035.9613	...
3 mm	1x5 Array	0035.9614	...
3 mm	1x8 Array	0035.9617	...
3 mm	2x1 Array	0035.9660	...
3 mm	2x2 Array	0035.9661	...
3 mm	2x3 Array	0035.9662	...
3 mm	2x4 Array	0035.9663	...

Packaging unit

100 pcs

Table of Variants AST

Diameter LED	Type	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

5 mm	1x4 Array	0035.9203	100
5 mm	1x3 Array	0035.9204	100
5 mm	1x2 Array	0035.9205	100
5 mm	1x1 Array	0035.9206	100
3 mm	1x1 Array	0035.9610	100
3 mm	1x2 Array	0035.9611	100
3 mm	1x3 Array	0035.9612	100
3 mm	1x4 Array	0035.9613	100
3 mm	1x5 Array	0035.9614	100
3 mm	1x8 Array	0035.9617	100
3 mm	2x1 Array	0035.9660	100
3 mm	2x2 Array	0035.9661	100
3 mm	2x3 Array	0035.9662	100
3 mm	2x4 Array	0035.9663	100
