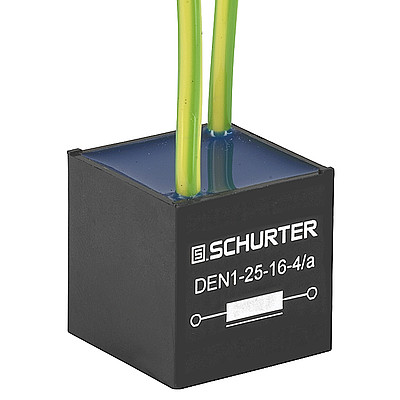

DEN  Low frequency ground wire choke, fully potted resign

Series: DEN

Low frequency ground wire choke, fully potted resign

Free Sample Request

2 Variants


Description

  • Ground wire chokes (ground line chokes)
  • Wire leads
  • Fully potted resign

Applications

  • Separating the main earth line to periphery devices
  • This type of chokes permits the building of a system free of ground wire loops

Rated Current

16 - 25 A @ Ta 40 °C

Rated inductance

4 mH

Power Operating Frequency

< 5 MHz

Terminal Type

Wire leads

Material

UL 94V-0

Sealing Compound

UL 94V-0

Isolation Voltage

2 kV eff., winding to ambient

Climatic Category

25/100/21 acc. to IEC 60068-1

Allowable Operation Temp.

-25 °C to 100 °C

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

800810070000006054
LOADING...

Dimension [mm]

Case 25

1) yellow/green
Case 40


Short Table of Variants DEN Open complete table DEN

In [A] Ln [mH] Rcu [mΩ] Order Number
A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER Contact us for availability on other product variants, lead-times vary:
Contact Form

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

16 4 27 DEN-25-0001  A  ...
25 4 10.5 DEN-40-0001 ...

Most Popular.
