DTII 500V  Fuse DTII 500V

Series: DTII 500V

Fuse DTII 500V

Free Sample Request

7 Variants


Description

  • Operation full range cable defensive fuses
  • Over-load and short-circuit protection
  • Colored characteristic detector in the middle
  • Characteristic gG
  • According to IEC 269

Rated Current In

2-  25 A

Rated Voltage

500 VAC

Breaking Capacity

50 kA

Rated Power Operating Frequency fe

50 Hz

Basic Design

Insulator

Ceramics

Metal components

Brass

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in   Details about Approvals


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900130010000005007
LOADING...

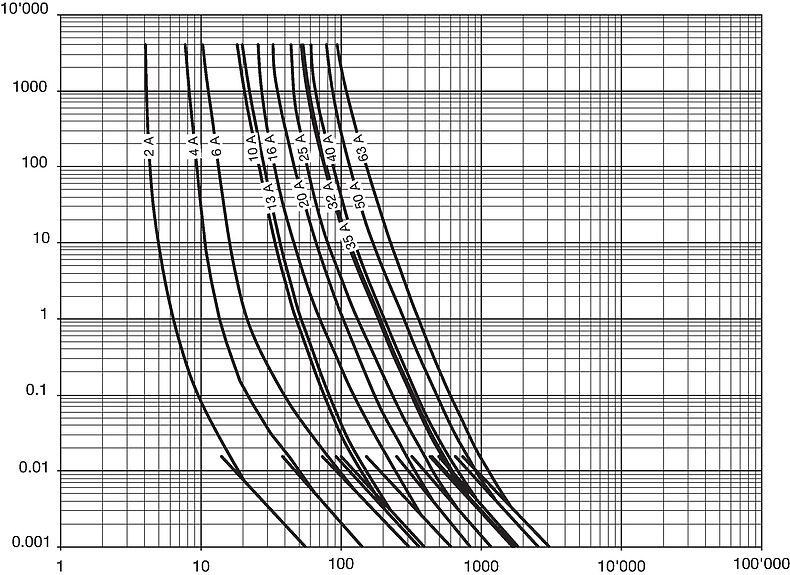

Time-Current-Curves

DT II - DT III

Time in Seconds
Current in Amperes


Short Table of Variants DTII 500V Open complete table DTII 500V

Rated current Color Packaging unit E-No. A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
[A]     Pcs

2 rosé 25 800250209  A  ...
4 brown 25 800250409  A  ...
6 green 25 800250609  A  ...
10 red 25 800251009  A  ...
16 grey 25 800251509  A  ...
20 blue 25 800252009  A  ...
25 yellow 25 800252509  A  ...

Most Popular.
