Series: FMAB NEO

AC Filter, High Symmetrical Attenuation

168 Variants

Approvals and Compliances

CAD

Microsite EMC-Service

Description

1-stage-line-filter with high attenuation
Version with ground line choke
Protection class II variants
4 designsN) excellent symmetrical noise attenuationP) high symmetrical noise attenuationQ) standard symmetrical noise attenuationHP) high performance

Unique Selling Proposition

Excellent symmetrical attenuation
Compact and cost optimized
Completely closed steel housing
Optional wire leads

Characteristics

Compact filter with high symmetrical attenuation
Designed for universal industrial applications
Especially designed forapplications with symmetrical noise caused by switching semiconductors
Suitable for use in equipment according to IEC/UL 62368-1
Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP), (Protection class II: 2 MOOP, 2 MOPP)

Other versions on request

Version with wire connection
Version with varistor for overvoltage protection

Detailed request for product

Details FMAB NEO

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Ratings IEC

1 - 60 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

1 - 60 A @ Ta 40 °C / 125/250 VAC; 60 Hz

Leakage Current

industrial < 1 mA (250 V / 60 Hz)
standard < 0.5 mA (250 V / 60 Hz)
medical (M5) < 5 µA (250 V / 60 Hz)
medical (M80) < 80 µA (250 V / 60 Hz)

Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PEProtection class II:>5.6kVDC between L/N-metal housing
Test voltage (2 sec)

Allowable Operation Temperature

-40 °C to 100 °C

Climatic Category

40/100/21 acc. to IEC 60068-1

Protection Class

Suitable for appliances with protection class I or II acc. to IEC 61140

Terminal

Quick connect terminal 6.3 x 0.8 mm
Bolt and nut

Material

Nickel plated steel

Surge protection

320 VAC 420 VDC 67 J

Line Filter

Standard, medical and industrial version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details

MTBF

> 200'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: FMAB NEO

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	Certificate Number: 40041643
	UL Approvals	UL	UR File Number: E72928

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60939	Passive filters for suppressing electromagnetic interference
Designed according to	UL 1283	Passive filters for suppressing electromagnetic interference
Designed according to	CSA C22.2 no. 8	Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

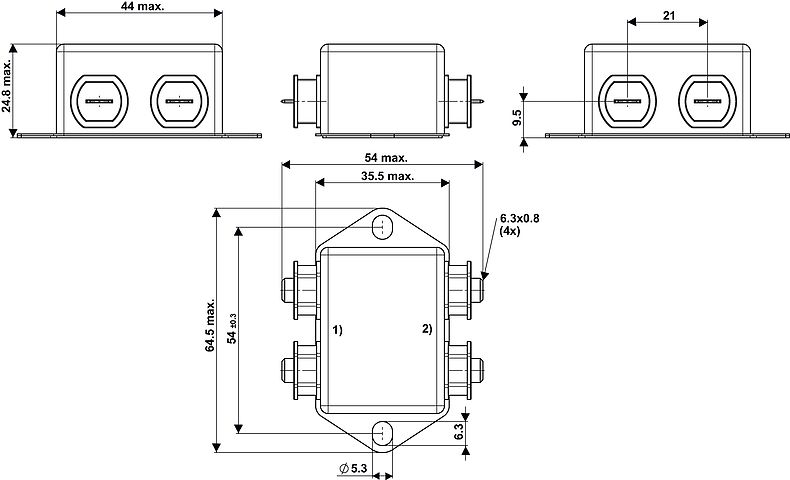

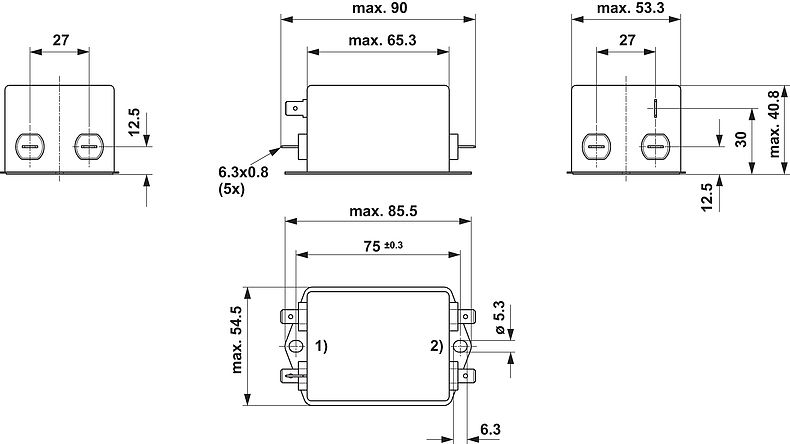

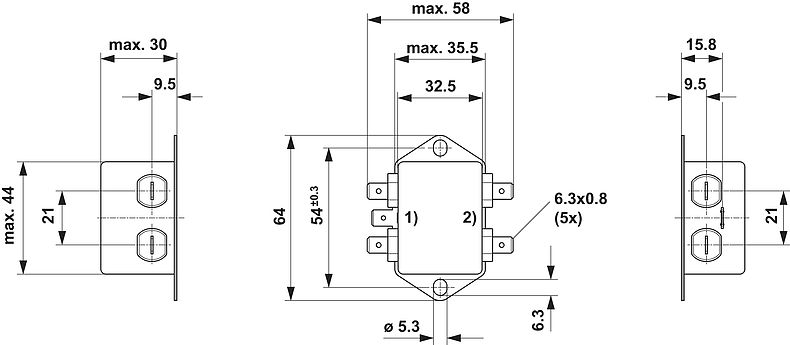

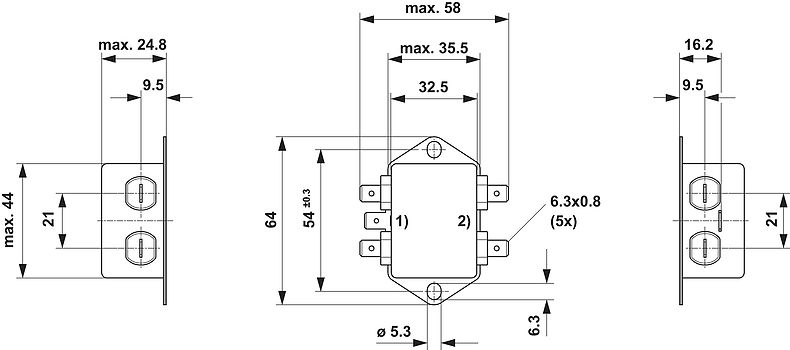

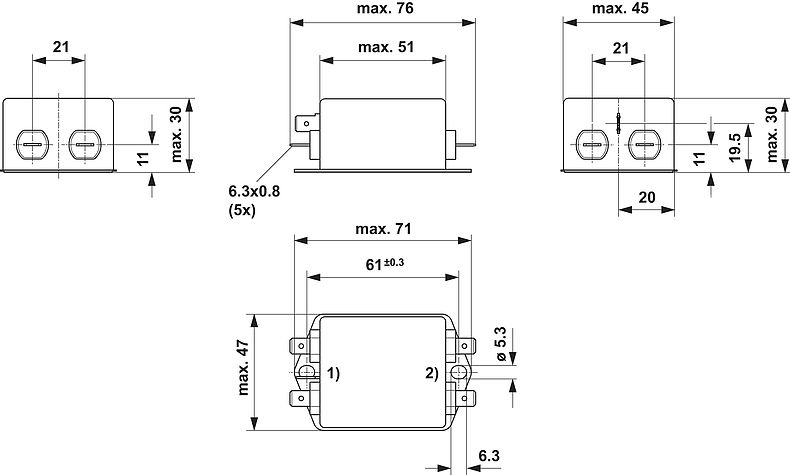

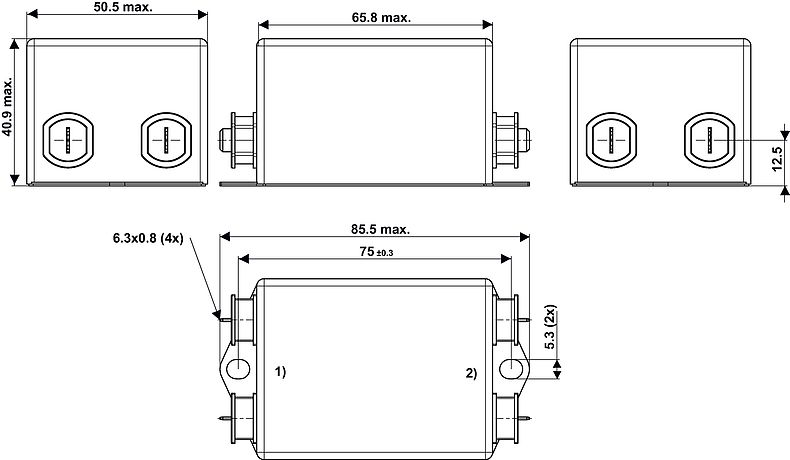

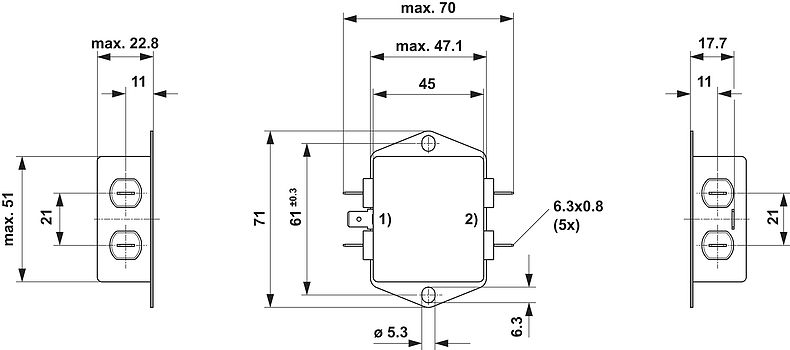

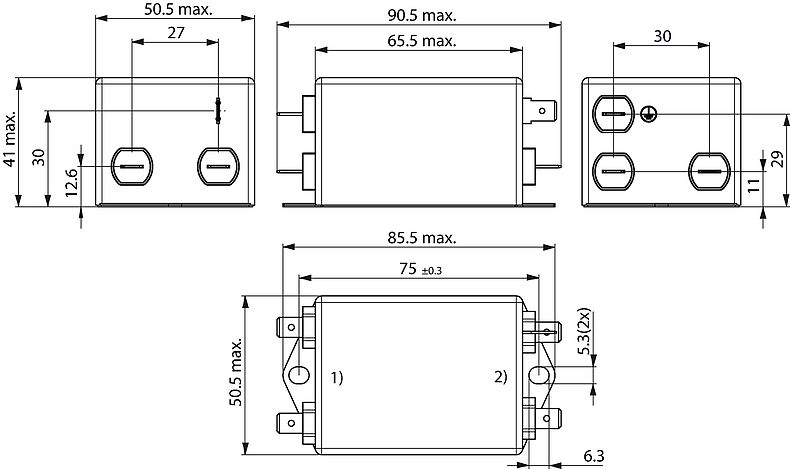

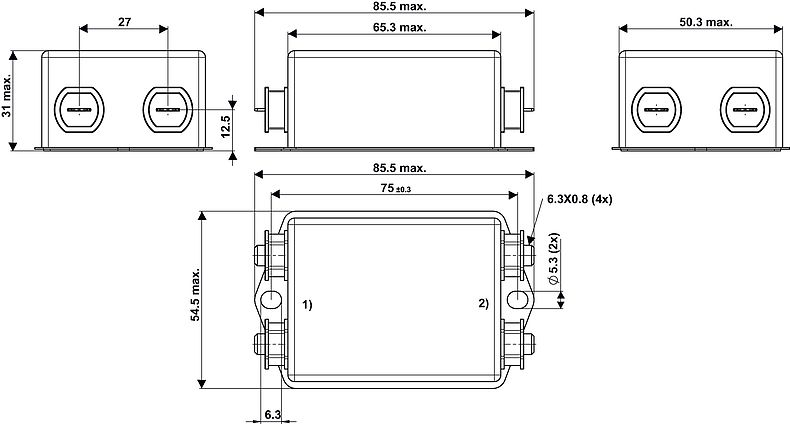

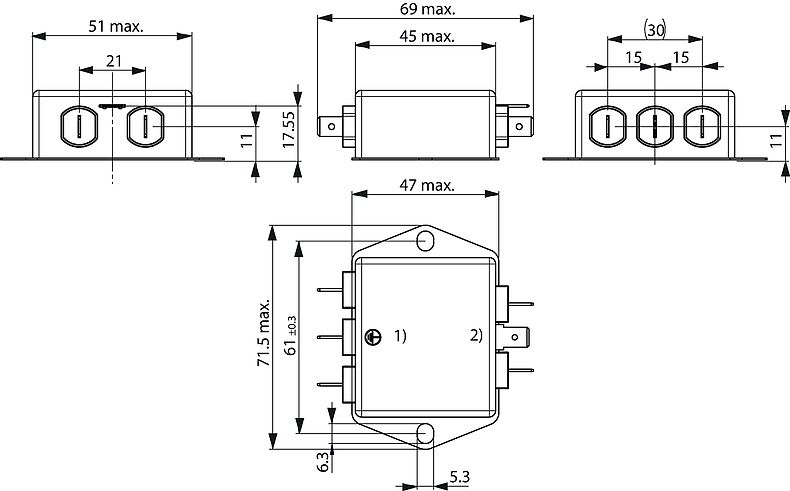

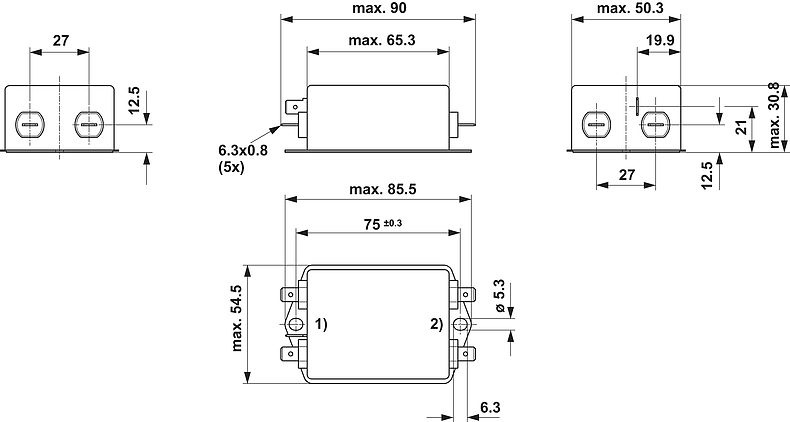

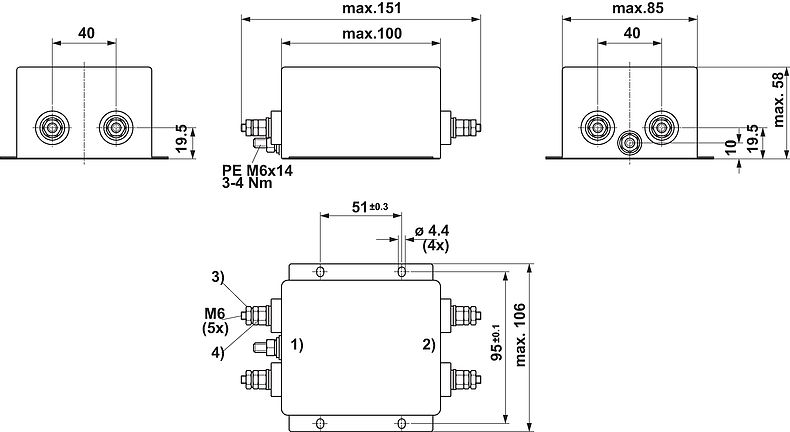

Dimension [mm]

	Case PG with quick connect terminals

	1) Line 2) Load

	Case PH with quick connect terminals

	1) Line 2) Load

	Case PI with quick connect terminals

	1) Line 2) Load

	Case PK with quick connect terminals

	1) Line 2) Load

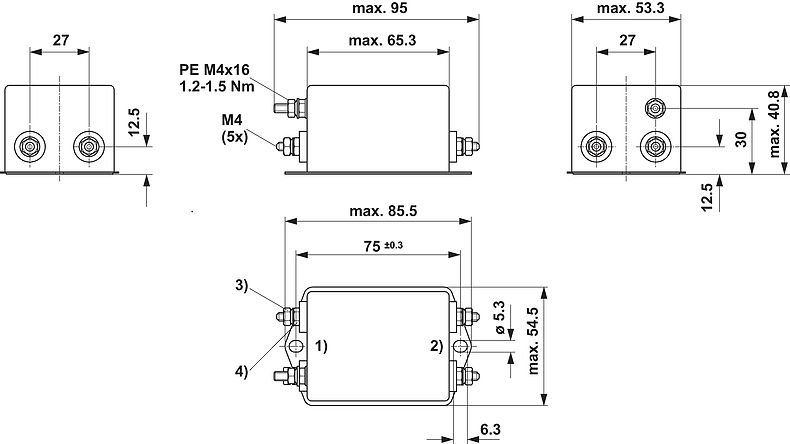

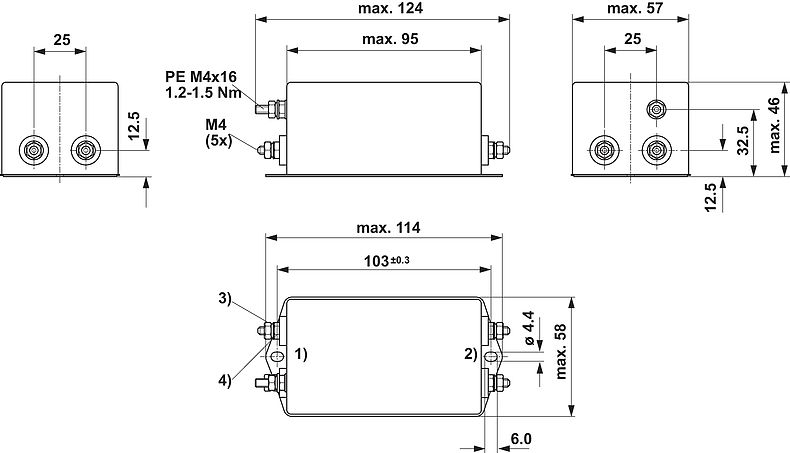

	Case PK with bolt and nut

	1) Line 2) Load 3) Nut torque 0.8...1 Nm, keep lock-nut fastened 4) Lock-nut do not unscrew

	Case QC with quick connect terminals

	1) Line 2) Load

	Case QD with quick connect terminals

	1) Line 2) Load

	Case QE with bolt and nut

	1) Line 2) Load 3) Nut torque 0.8...1 Nm, keep lock-nut fastened 4) Lock-nut do not unscrew

	Case QF with bolt and nut

	1) Line 2) Load 3) Nut torque 0.8...1 Nm, keep lock-nut fastened 4) Lock-nut do not unscrew

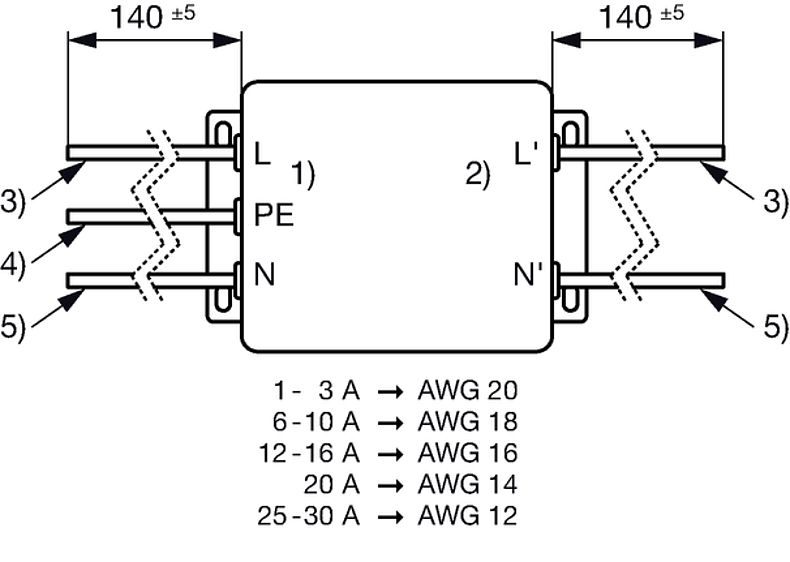

	Case with wire leads

	1) Line 2) Load 3) Brown 4) Yellow-Green 5) Blue

	Case UL Protection class II

	1) Line 2) Load

	Case UM Protection class II

	1) Line 2) Load

	Case UN Protection class II

	1) Line 2) Load

	Case UO Protection class II

	1) Line 2) Load

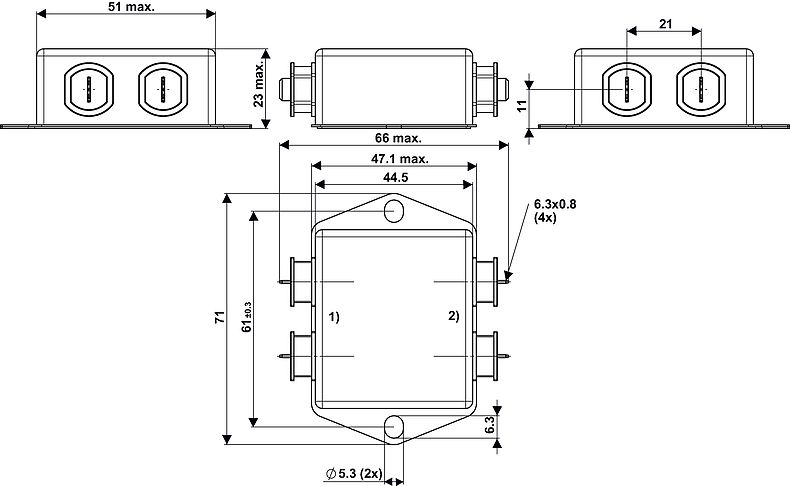

	Case UG with Ground Line Choke

	1) Line 2) Load

	Case UI with Ground Line Choke

	1) Line 2) Load

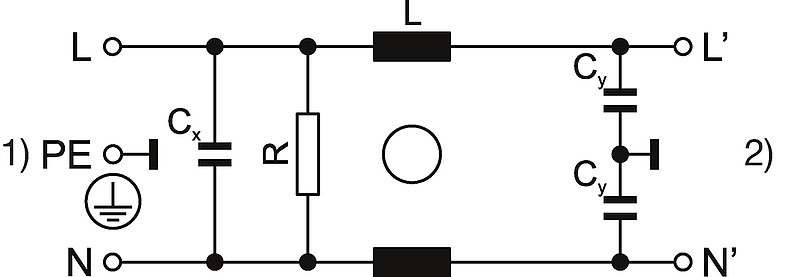

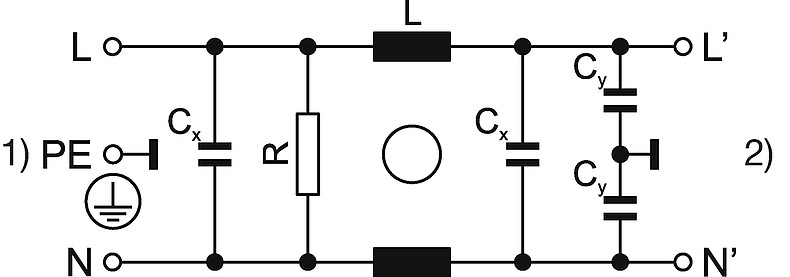

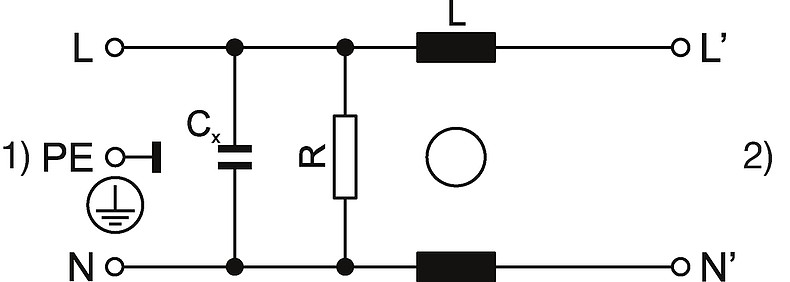

Diagrams

	Standard Version or medical M80 Design N, P

	1) Line 2) Load

	Medical Version (M5) Design N, P

	1) Line 2) Load

	Standard Version or medical M80 Design Q

	1) Line 2) Load

	Medical Version (M5) Design Q

	1) Line 2) Load

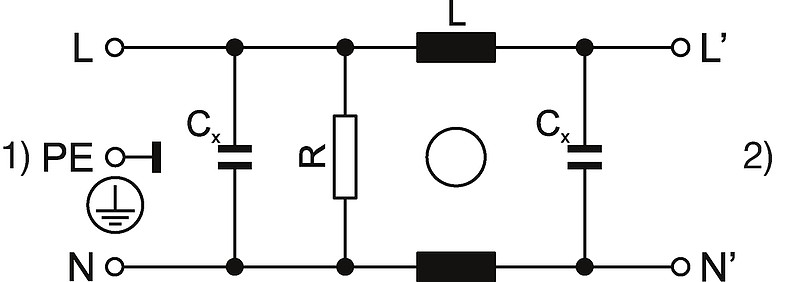

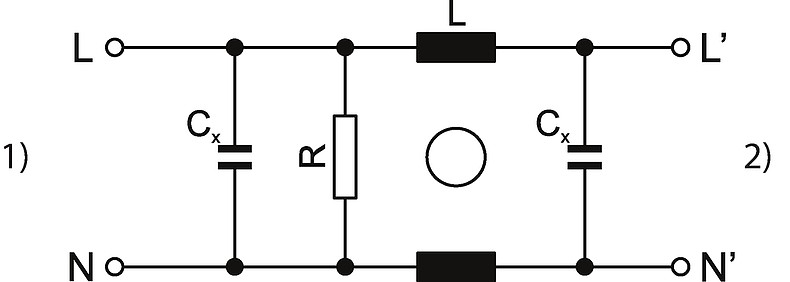

	Medical Version (M5) Protection class II

	1) Line 2) Load

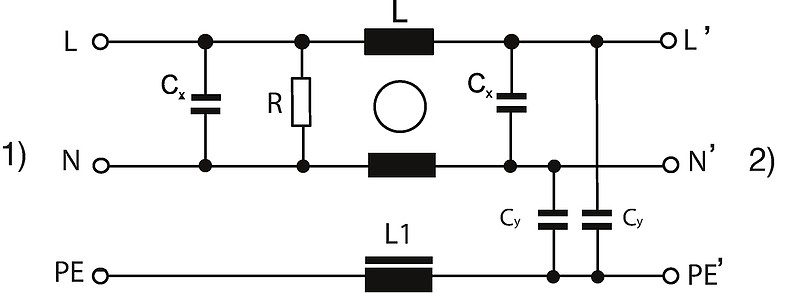

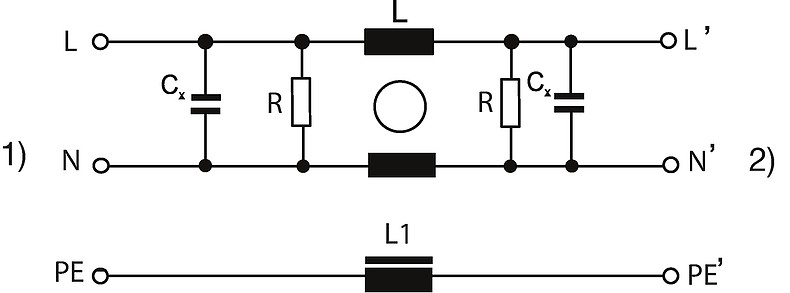

	Standard or Medical Version (M80) with ground line choke Design N

	1) Line 2) Load

	Medical Version (M5) with ground line choke Design N

	1) Line 2) Load

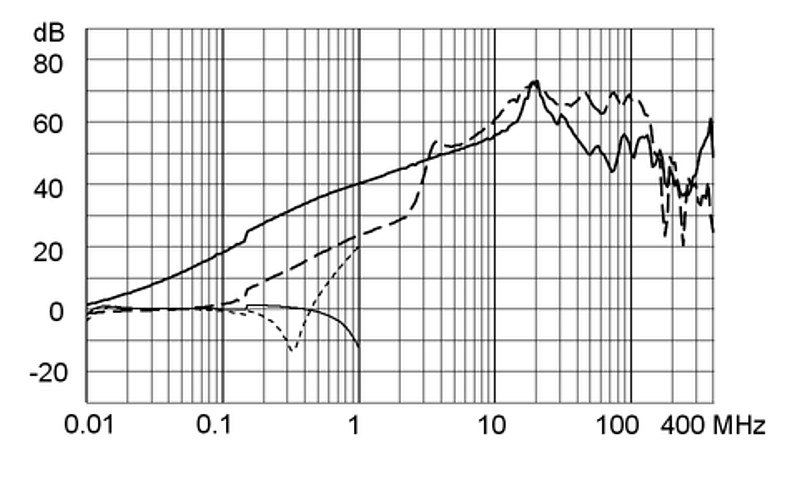

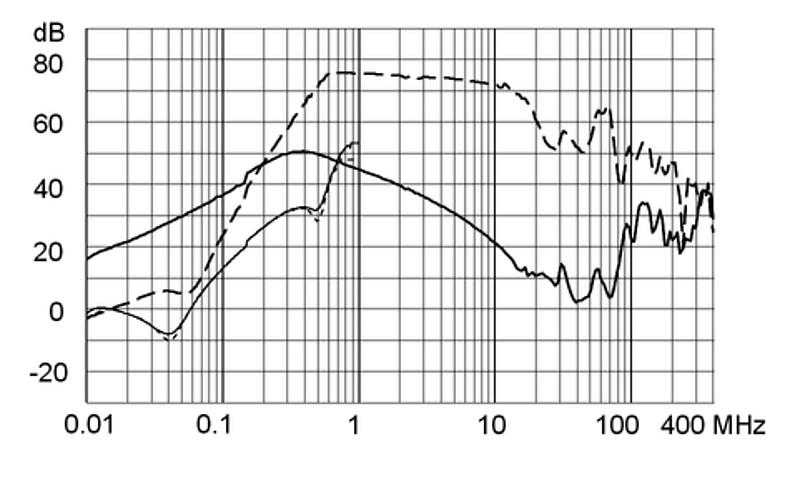

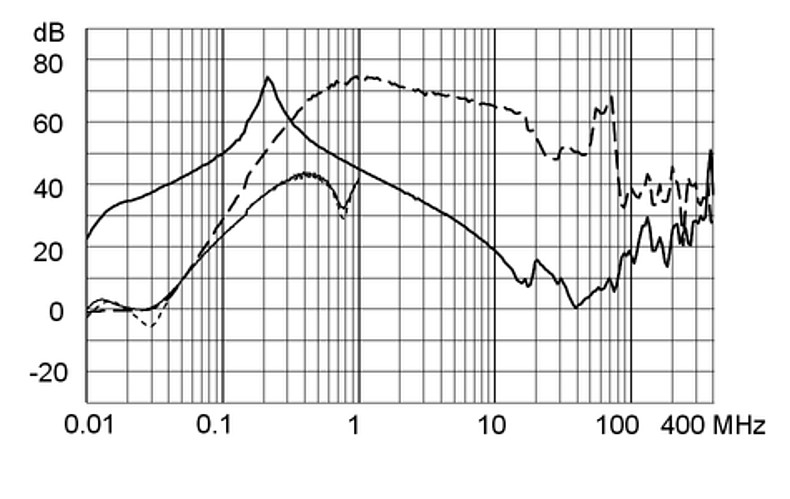

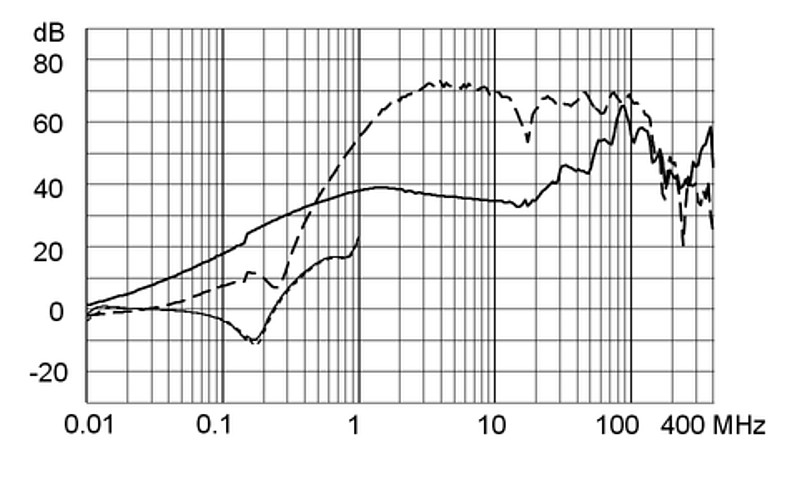

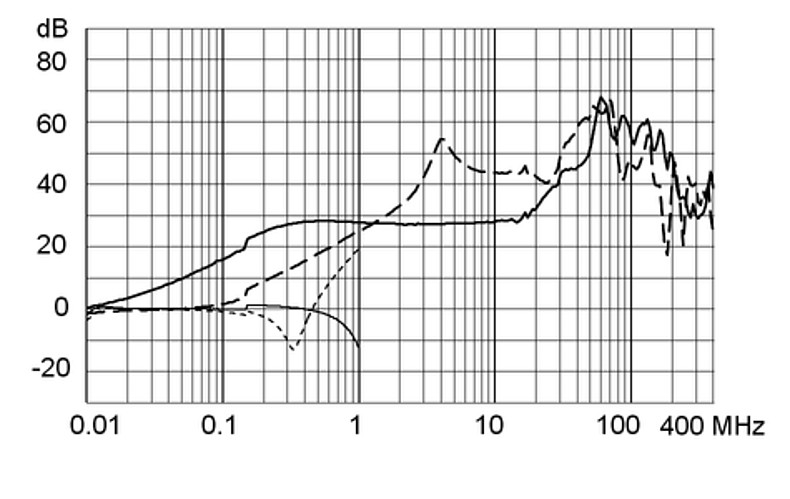

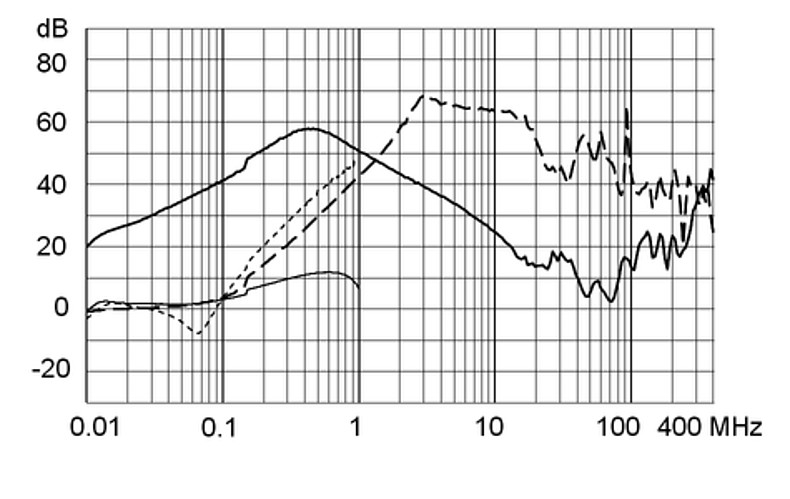

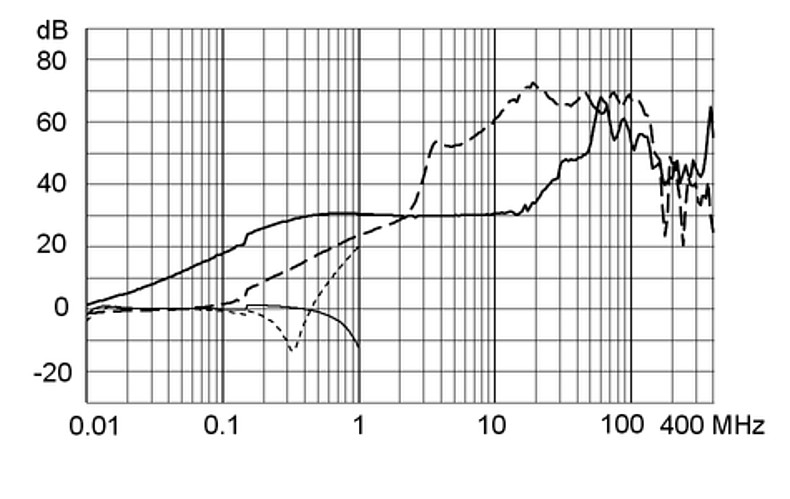

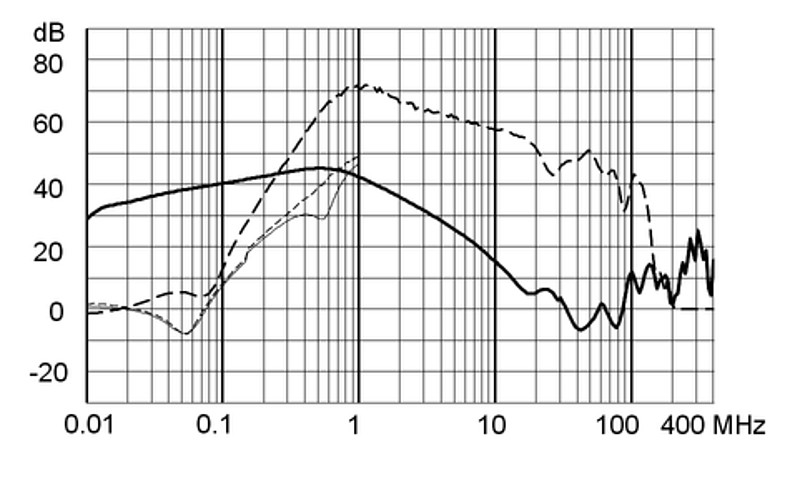

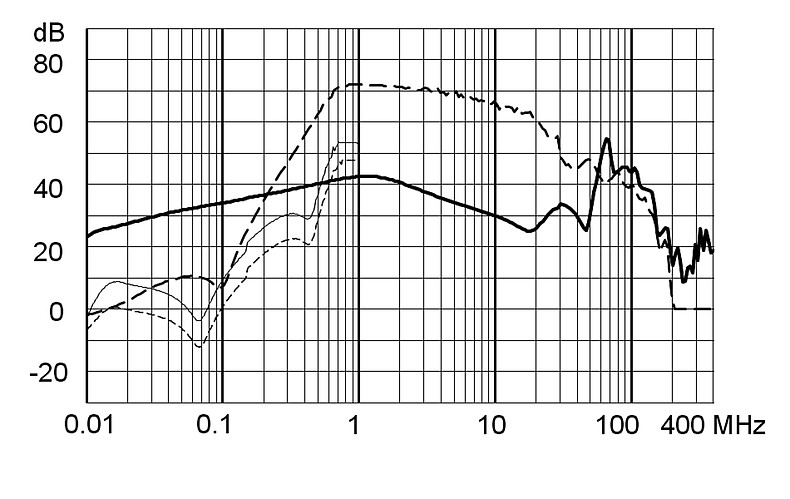

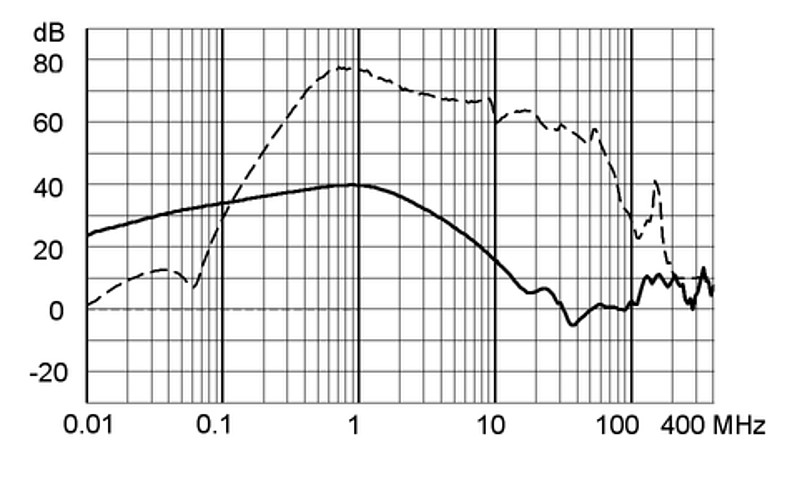

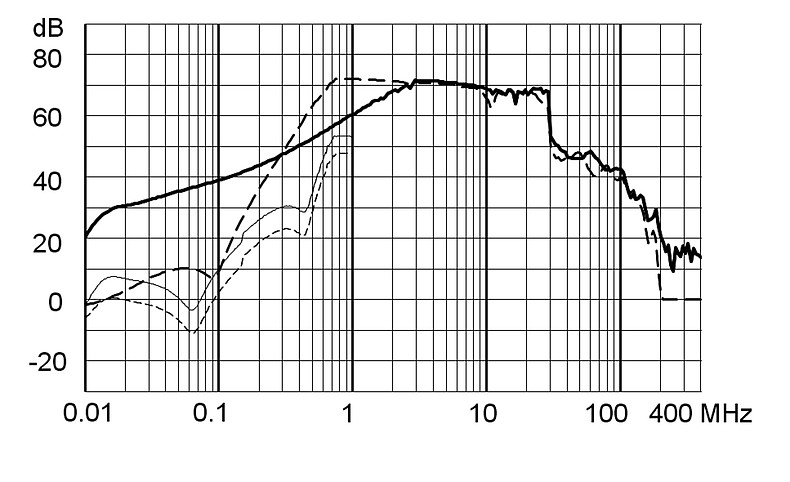

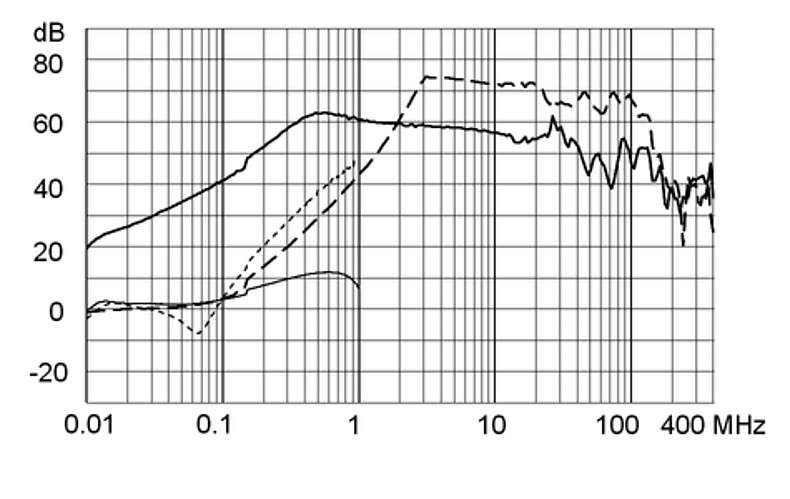

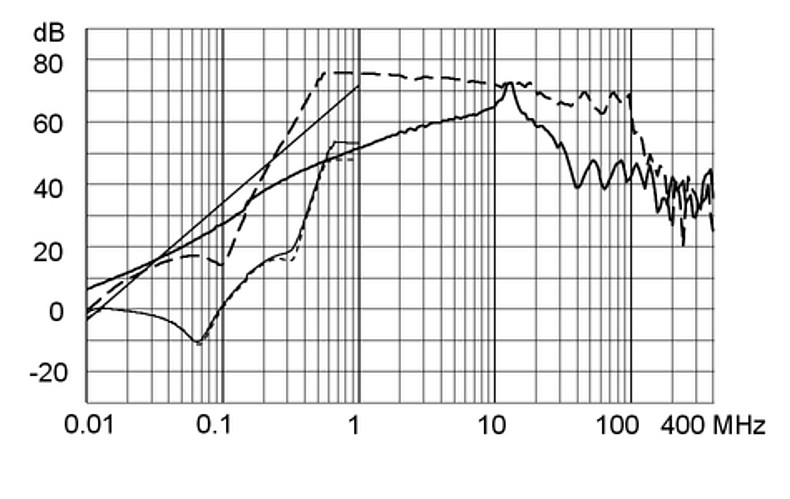

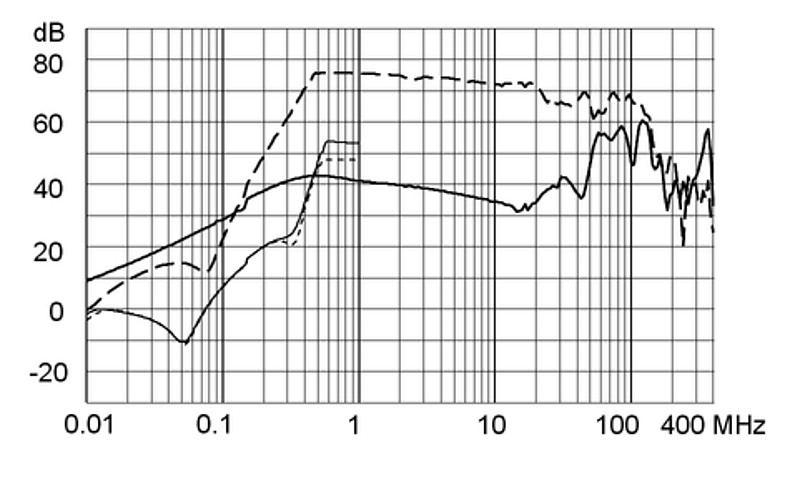

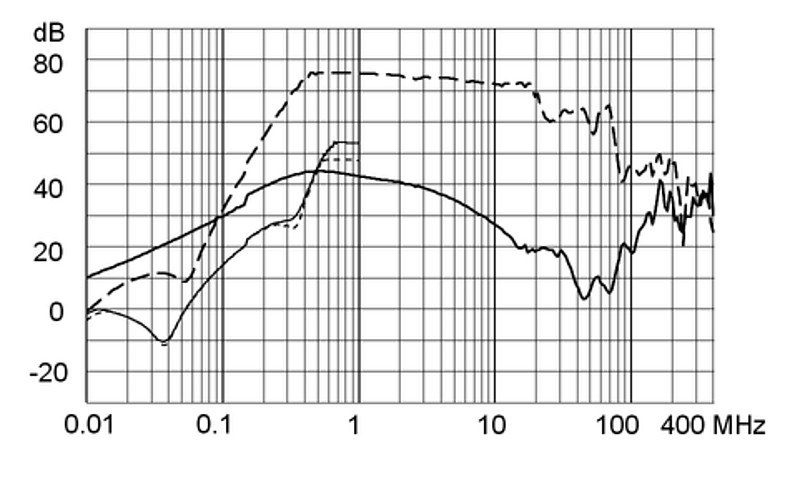

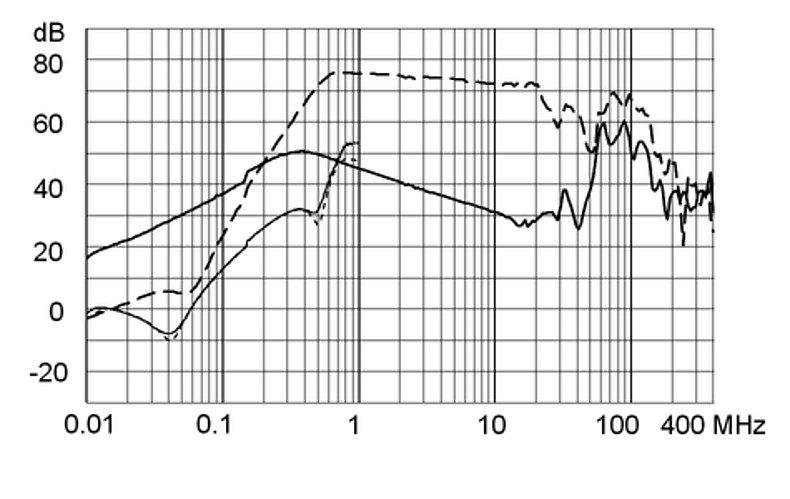

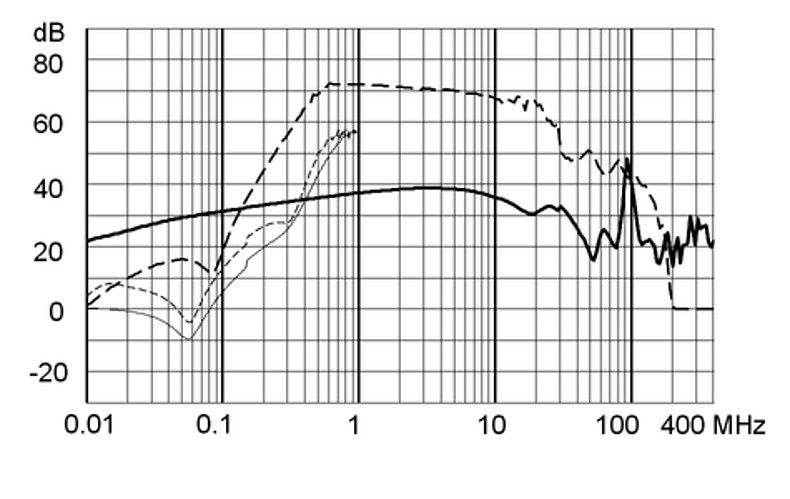

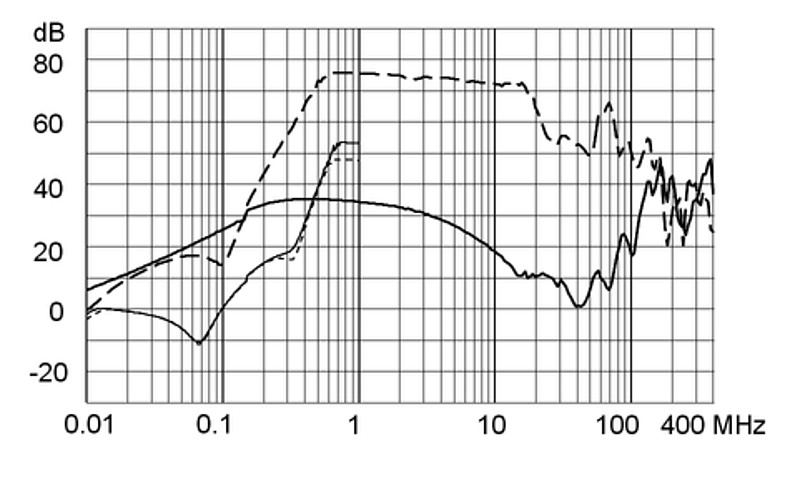

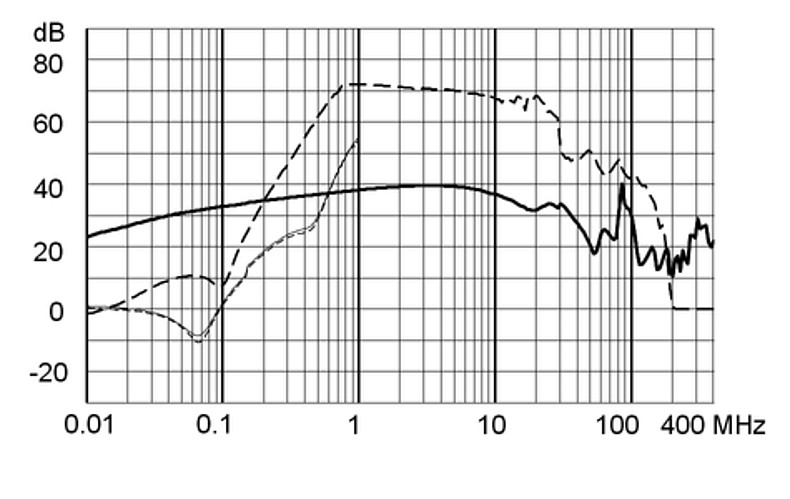

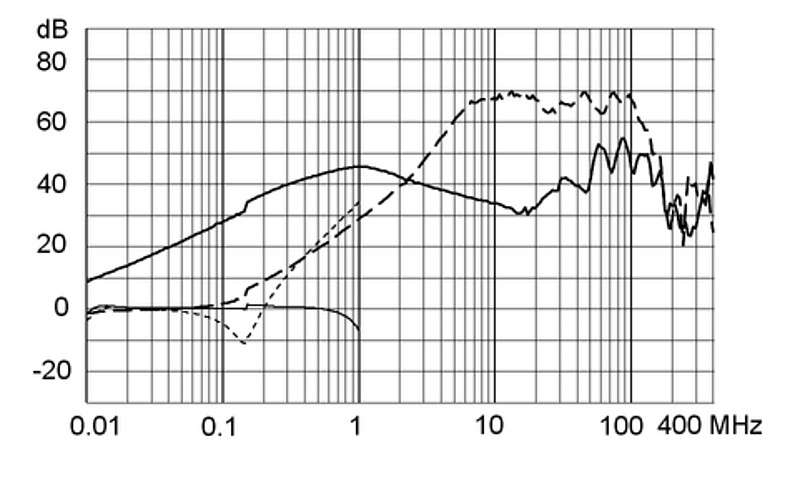

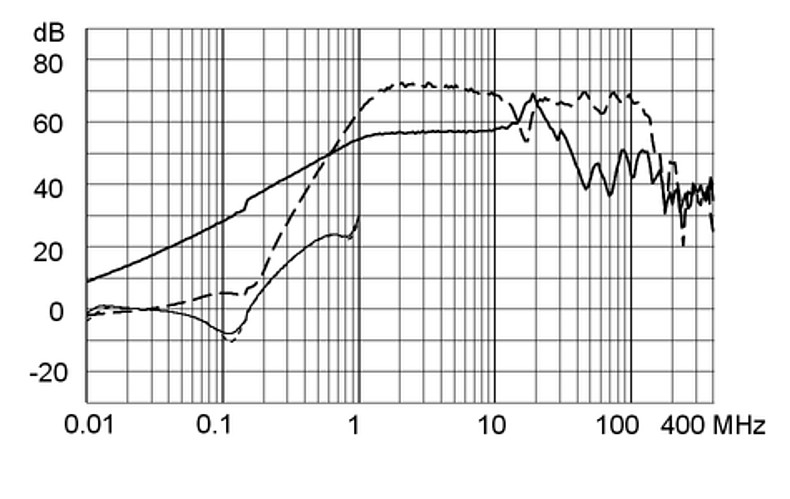

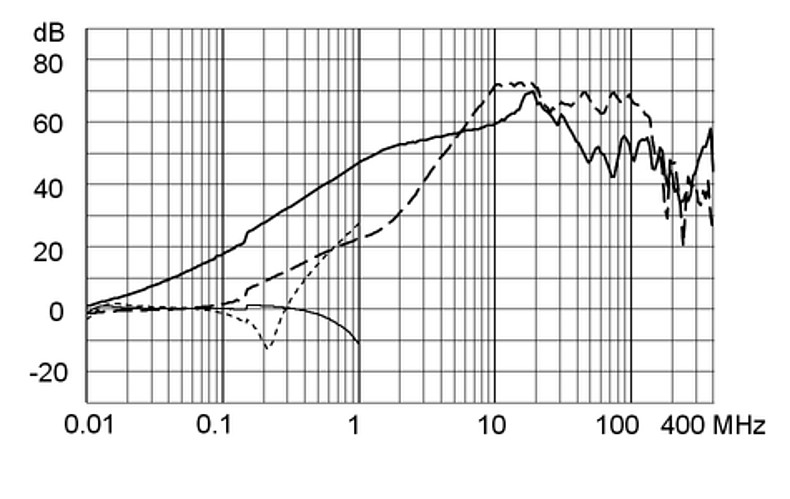

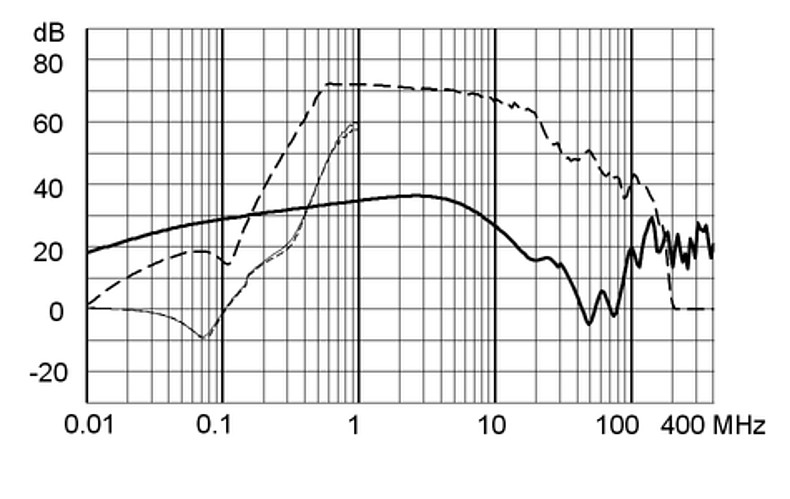

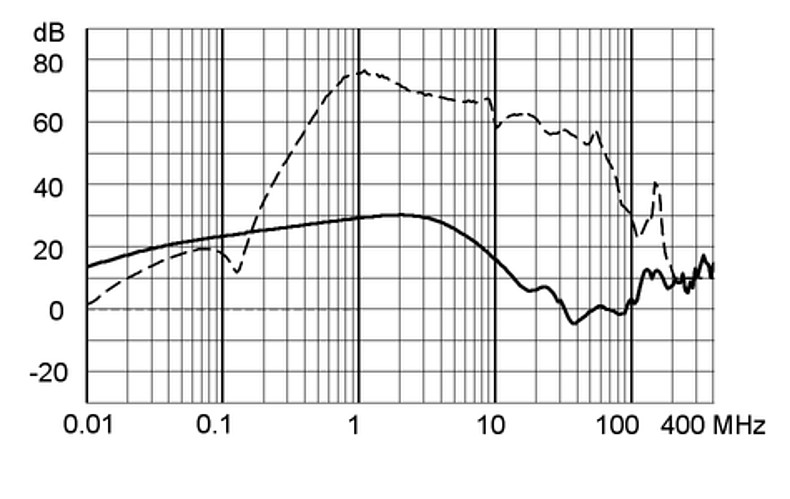

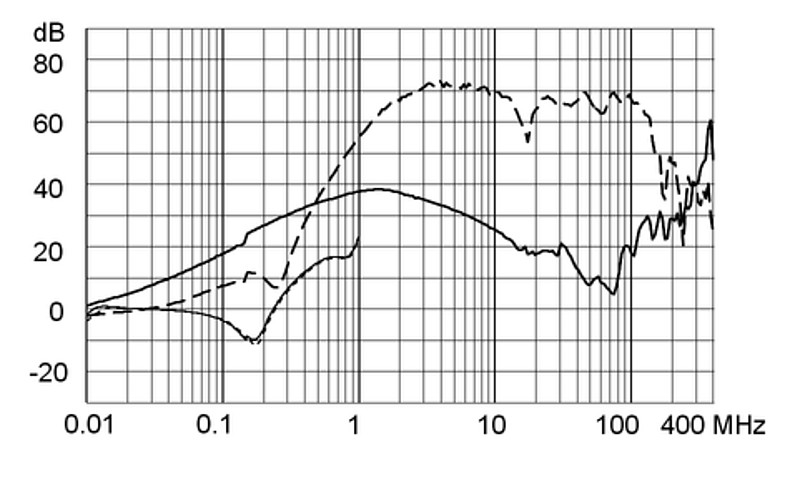

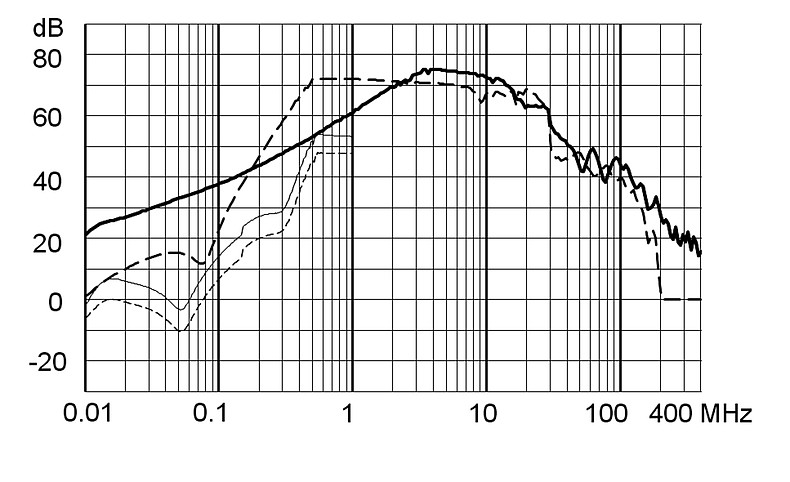

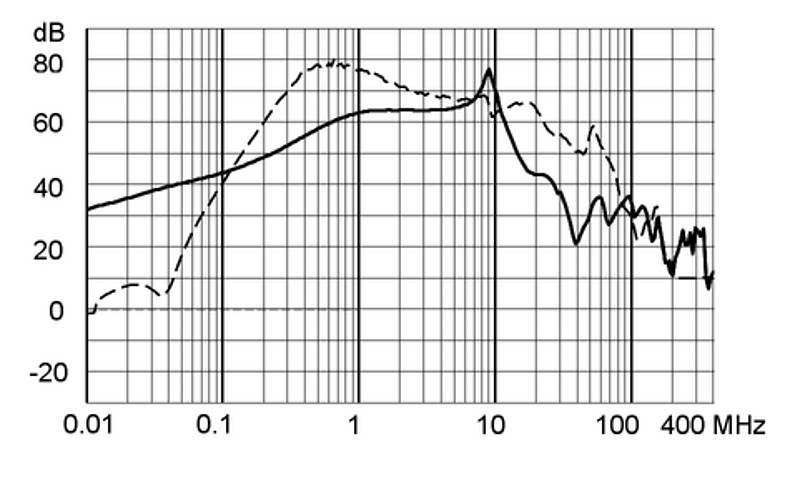

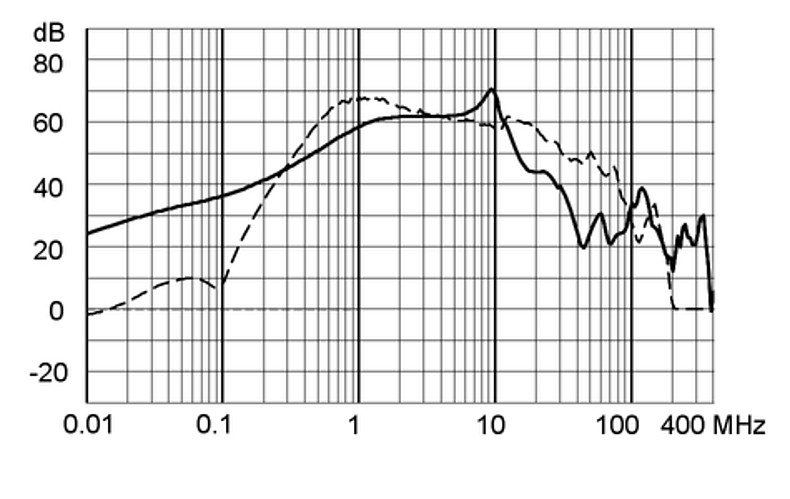

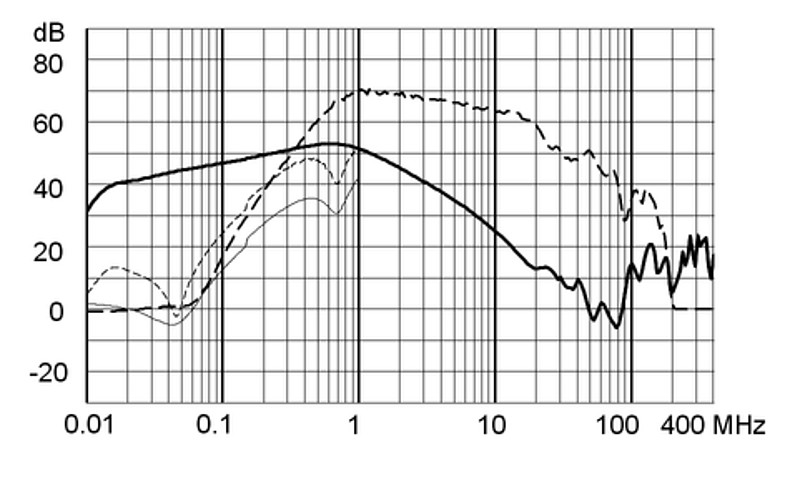

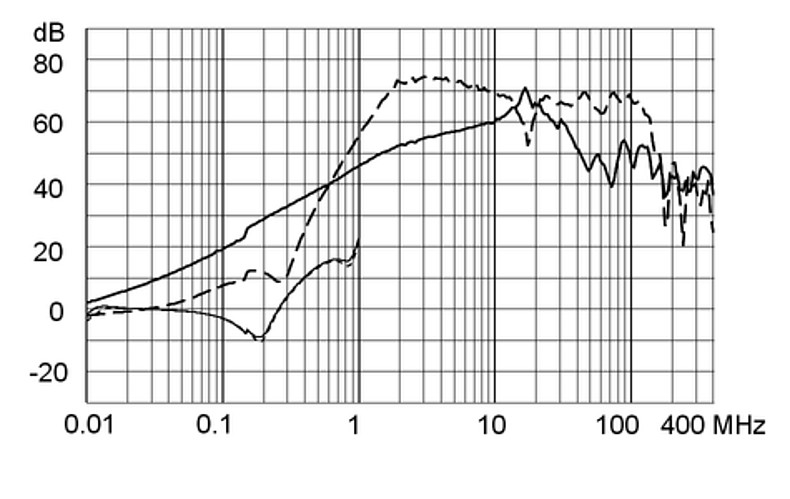

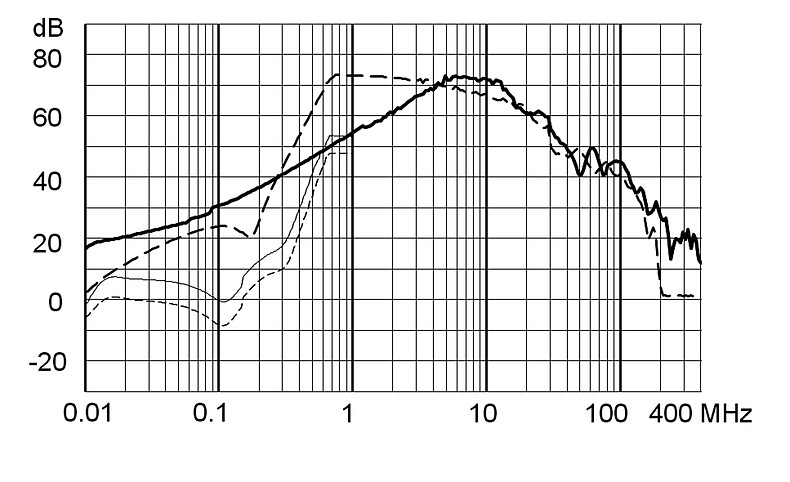

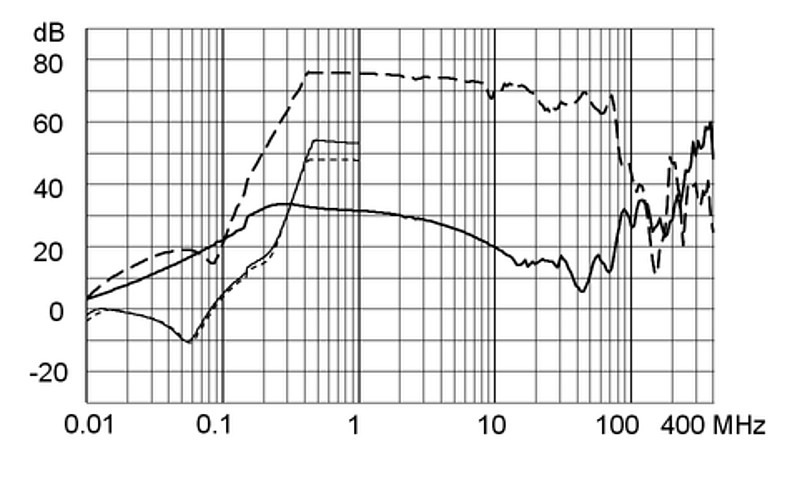

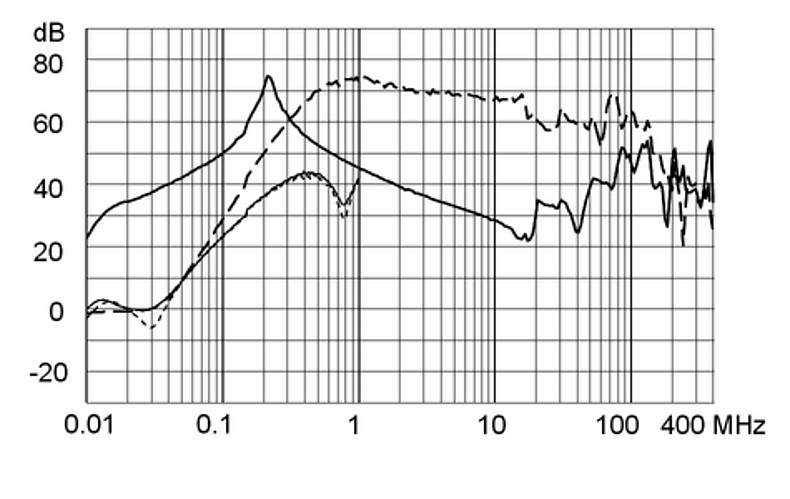

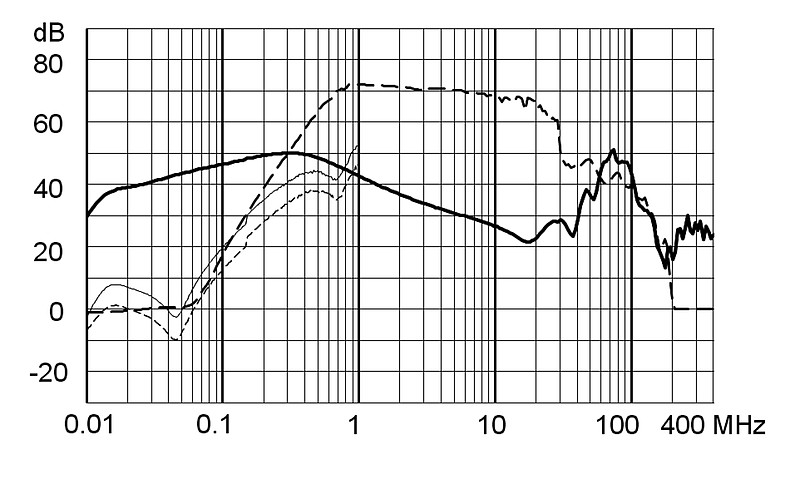

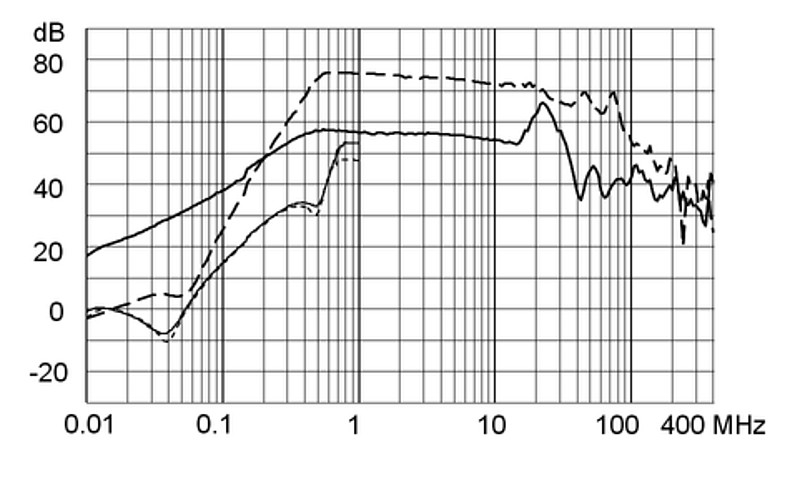

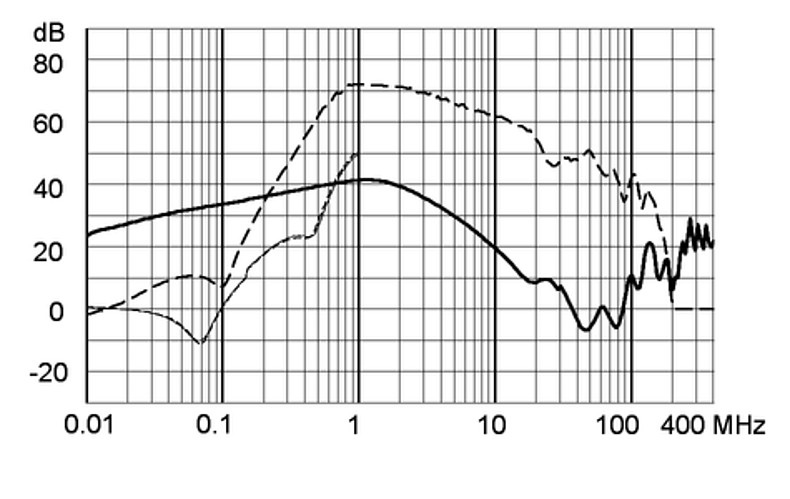

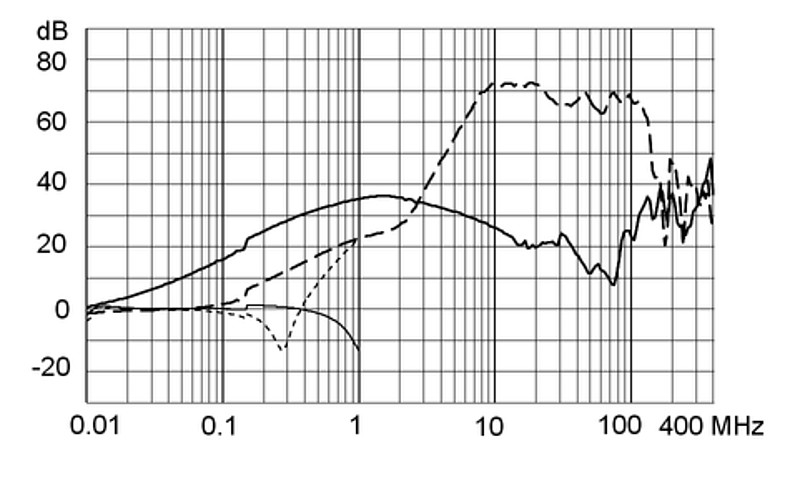

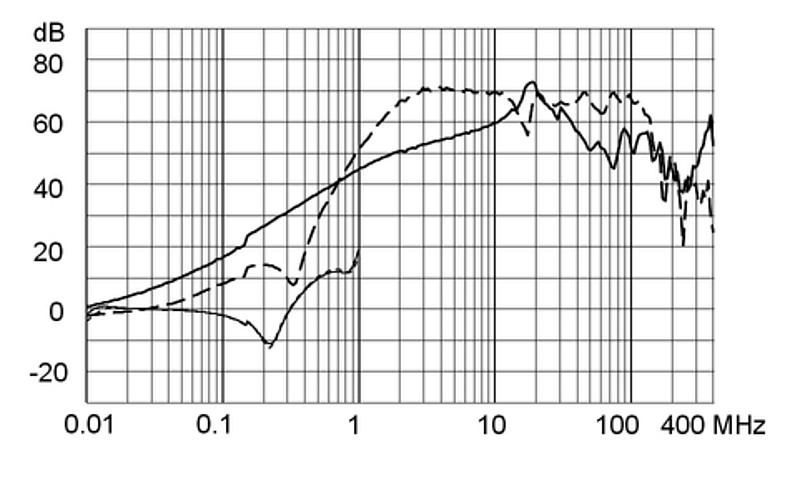

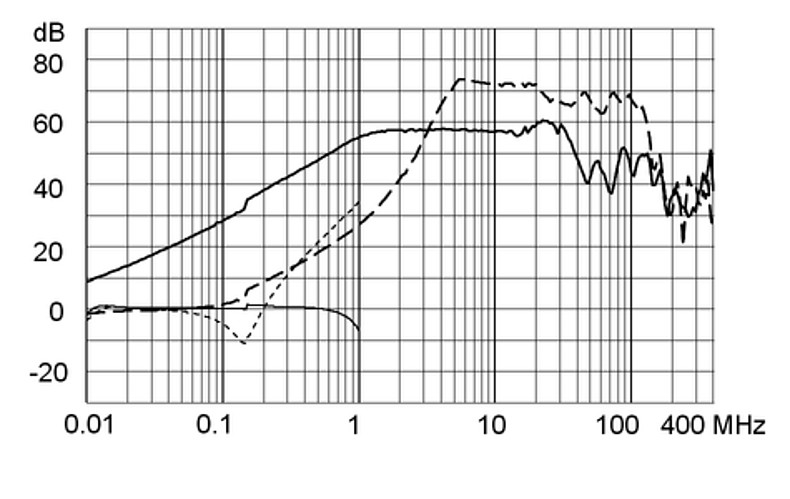

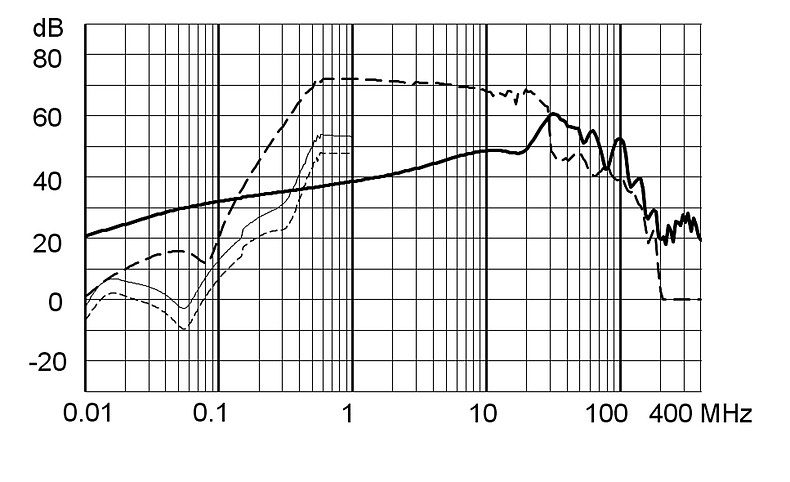

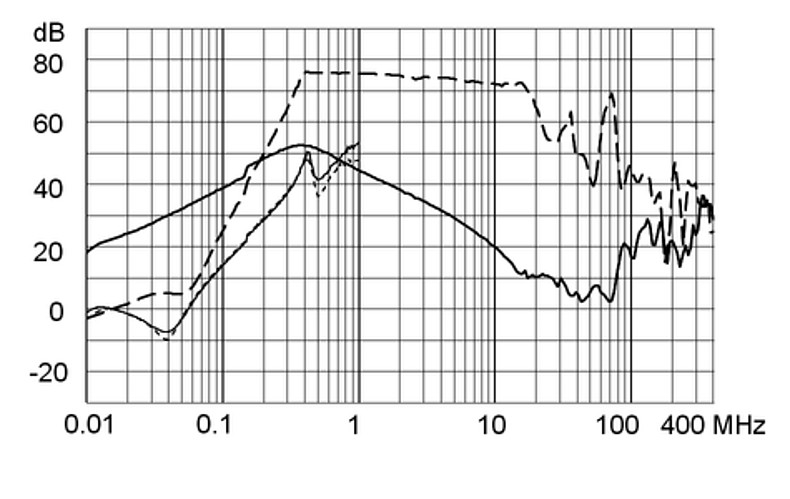

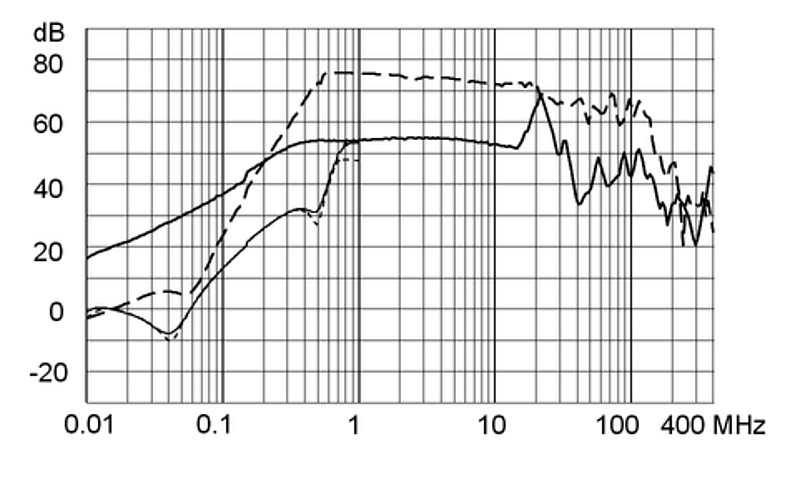

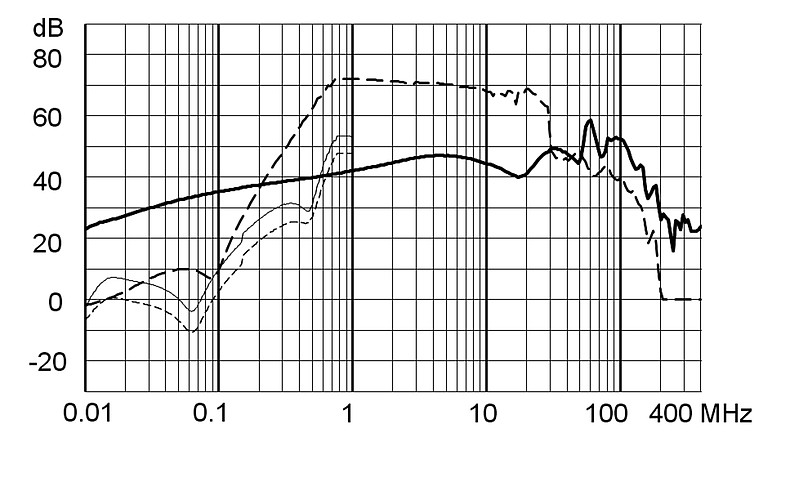

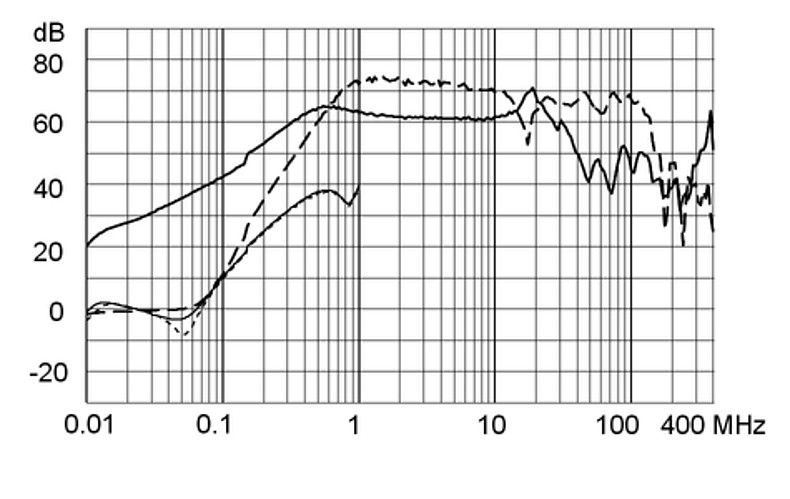

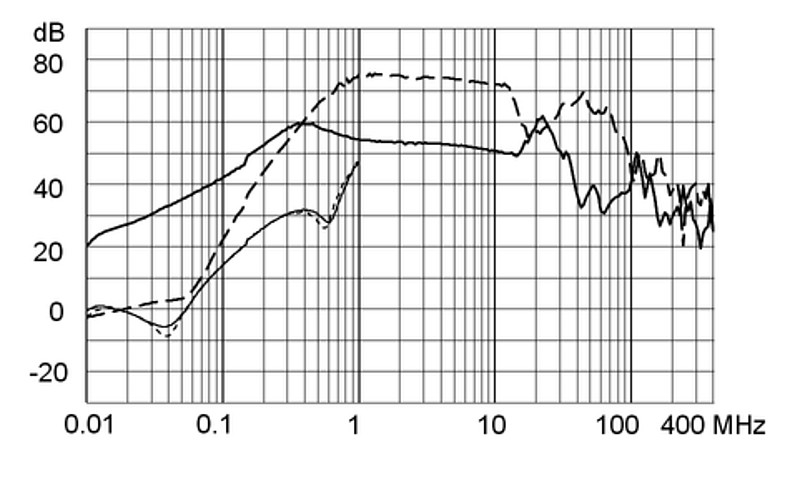

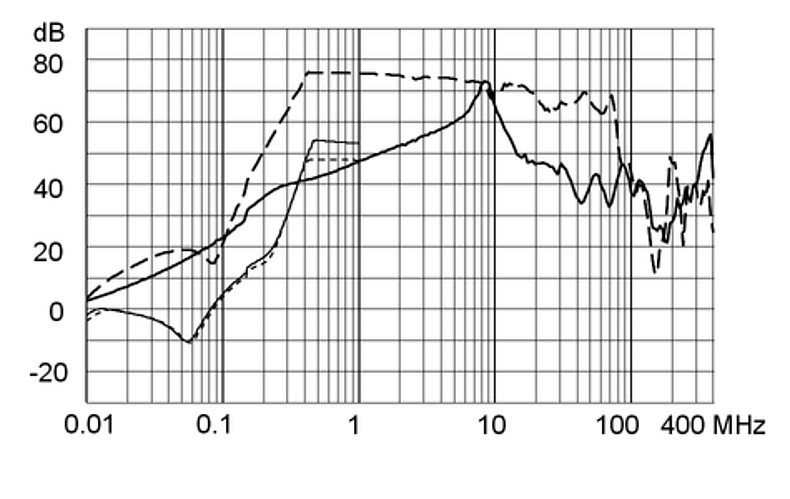

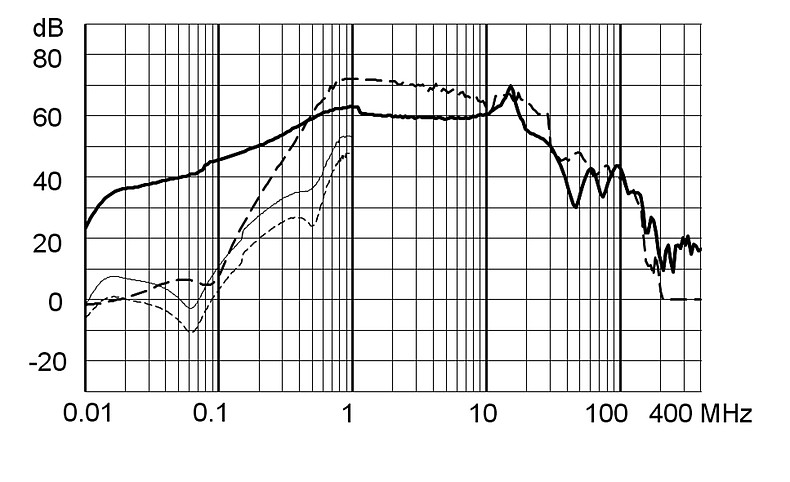

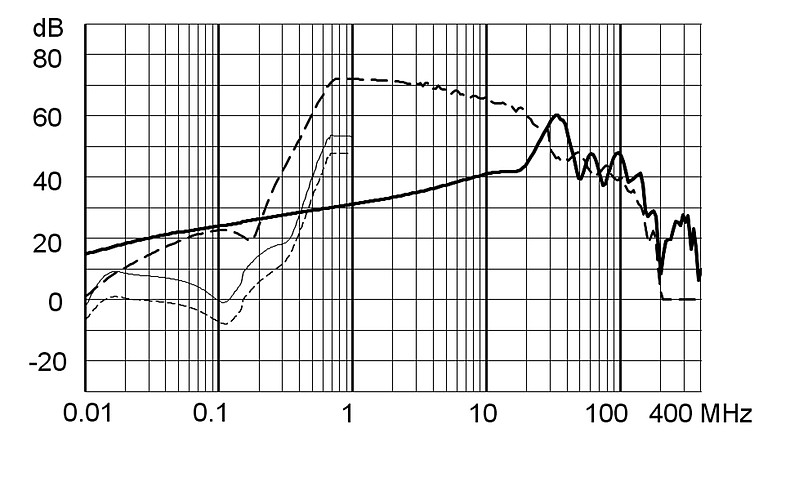

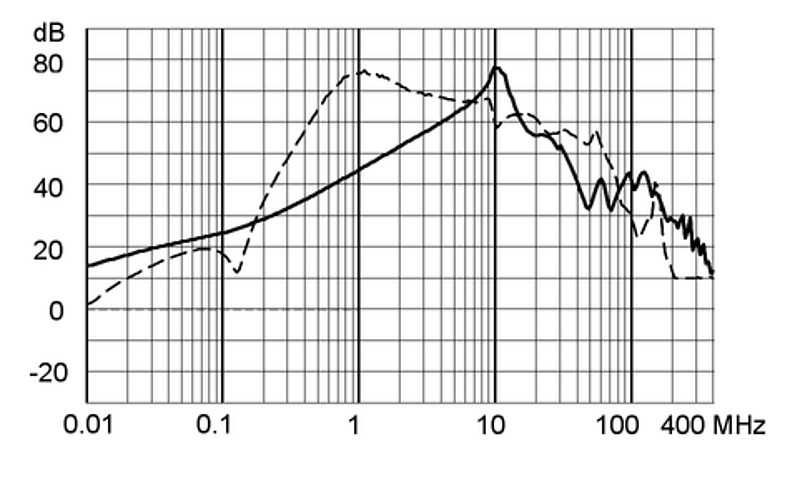

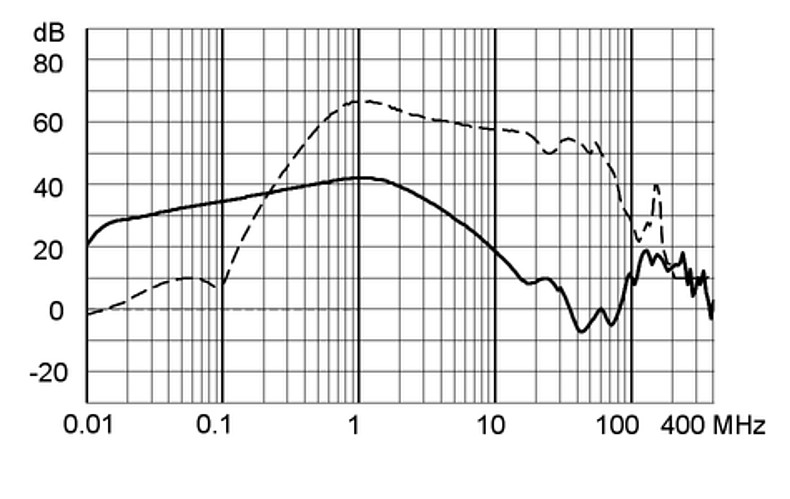

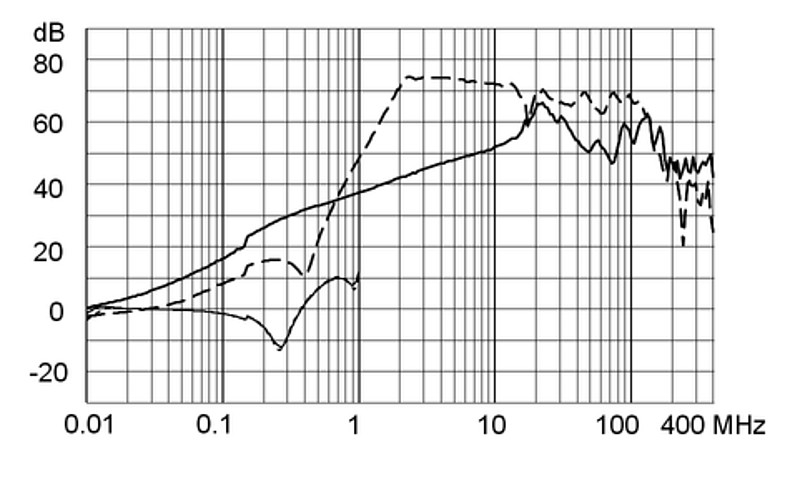

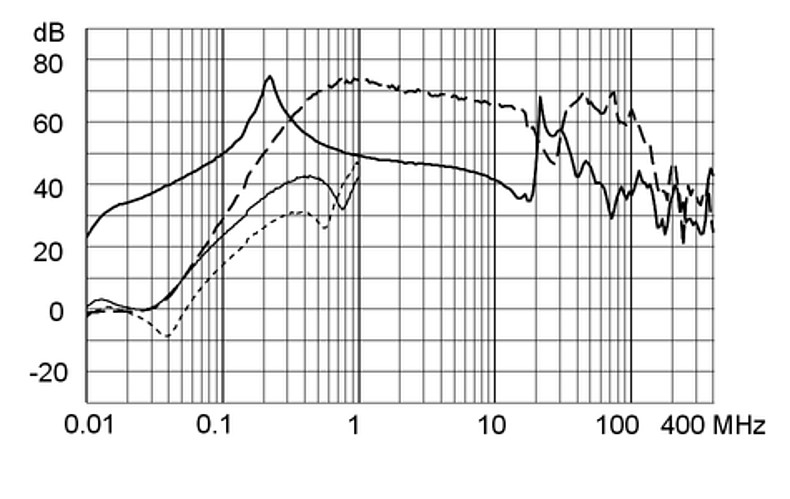

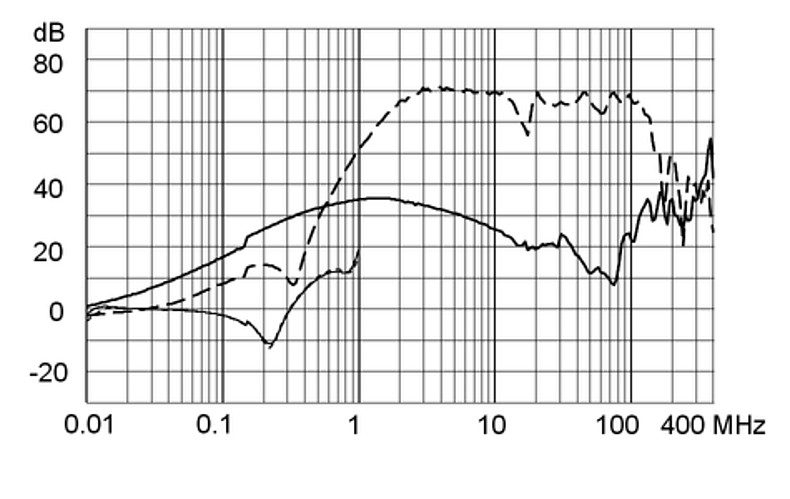

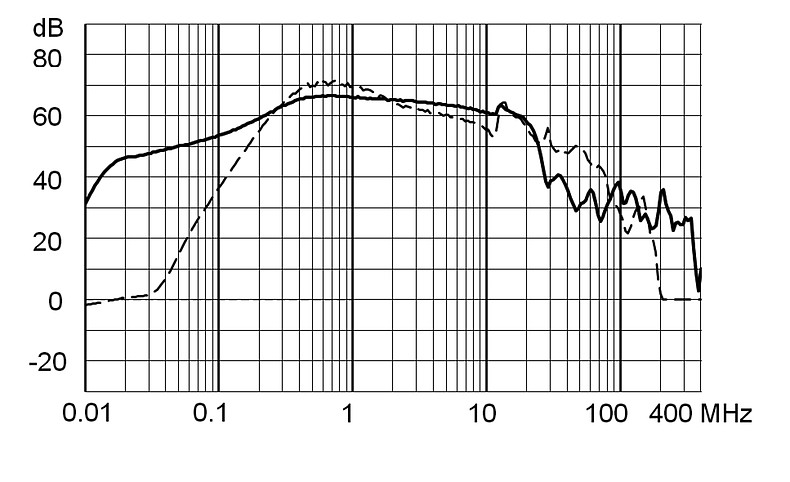

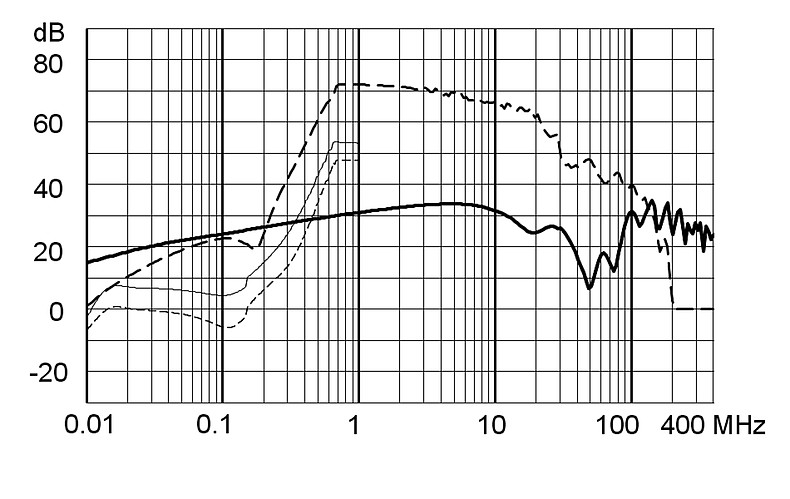

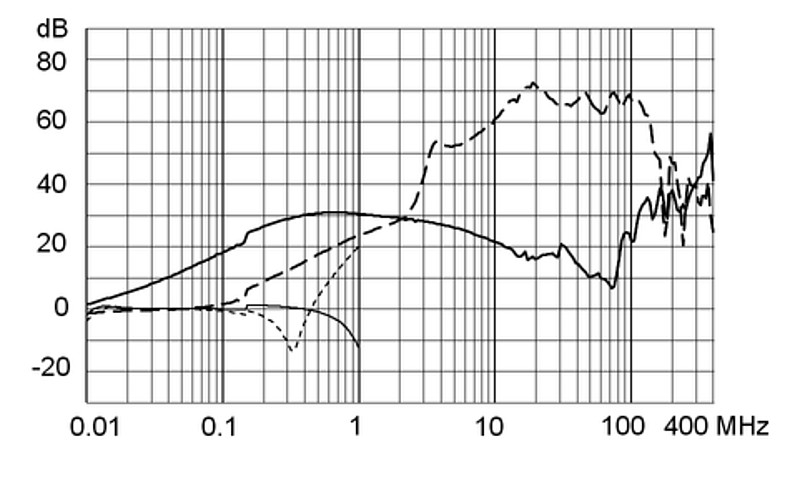

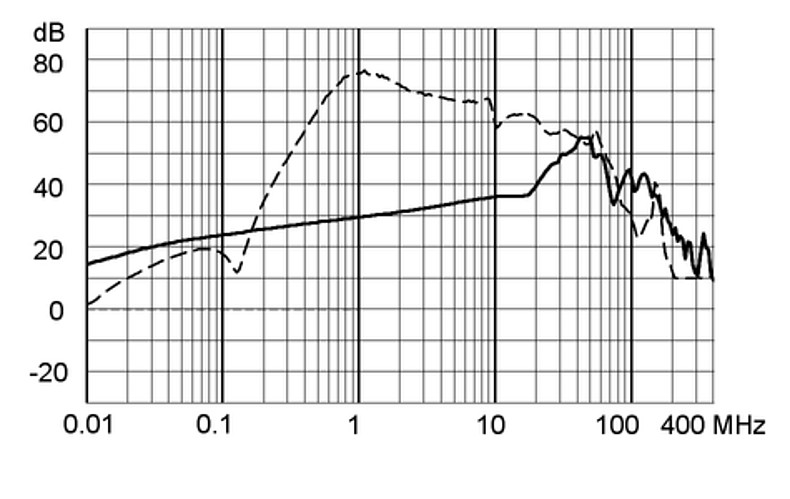

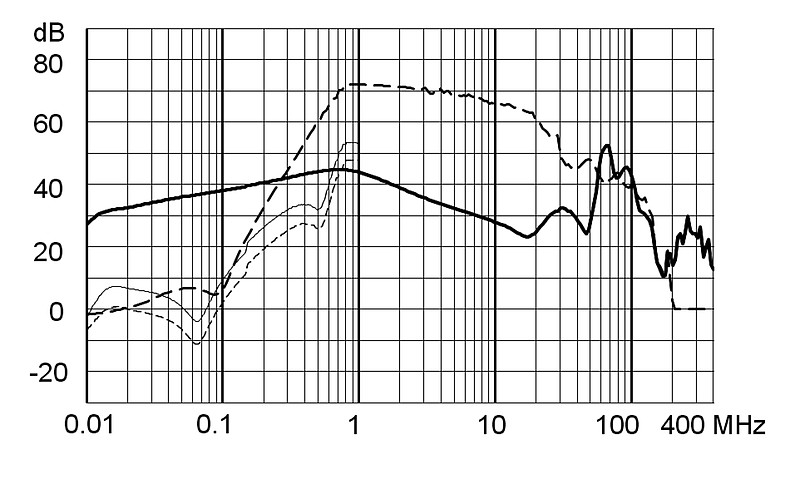

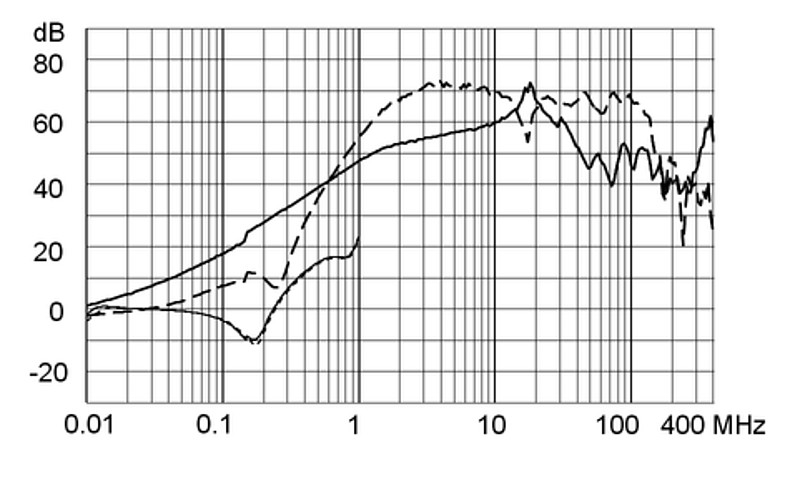

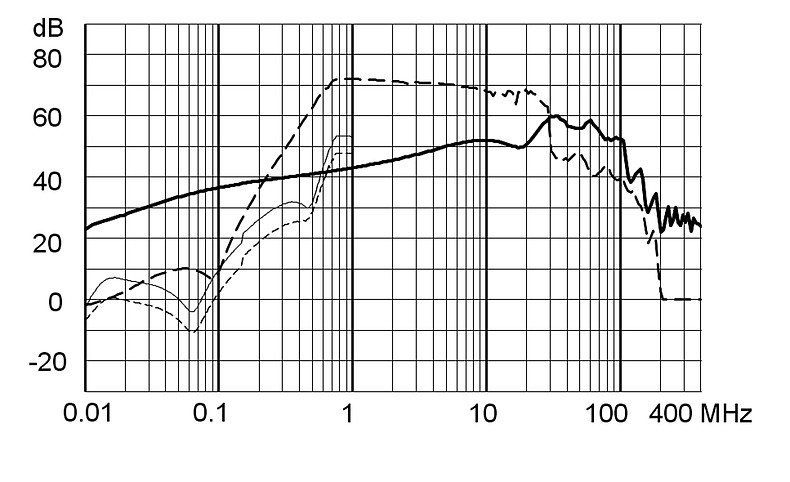

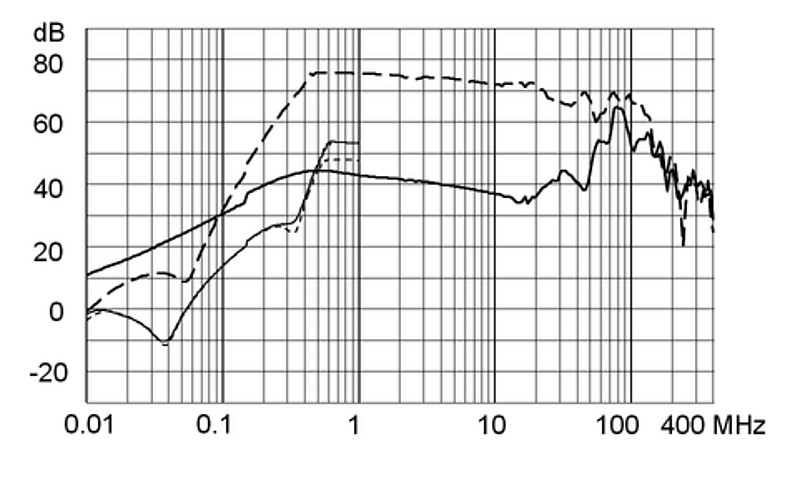

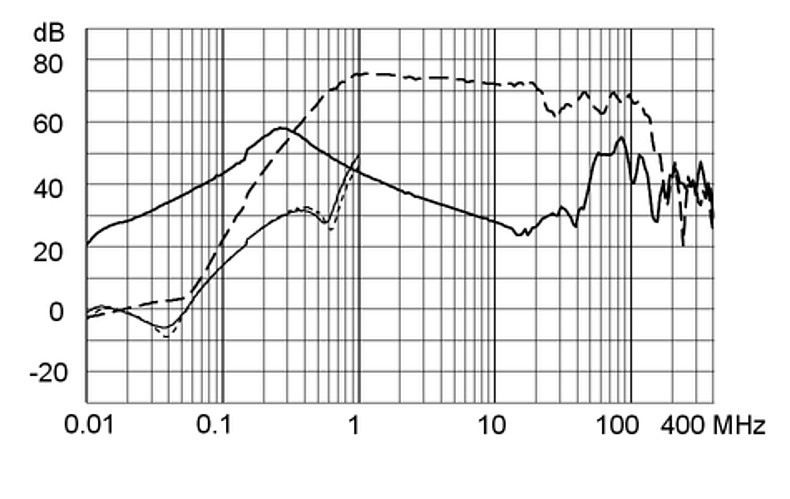

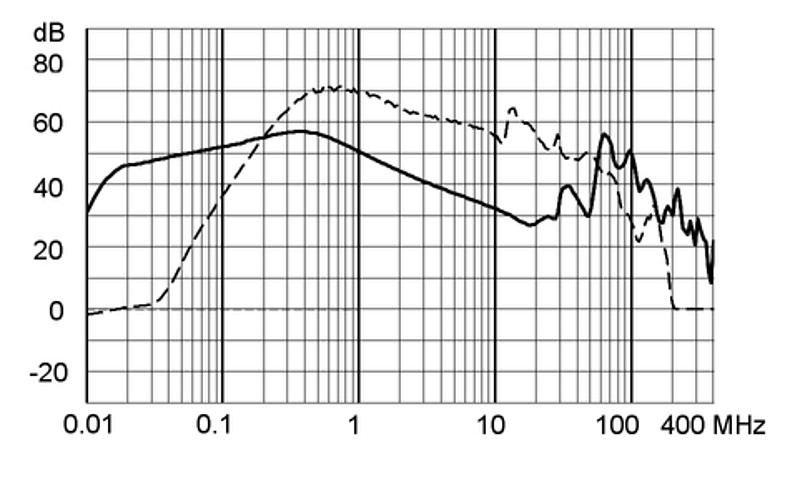

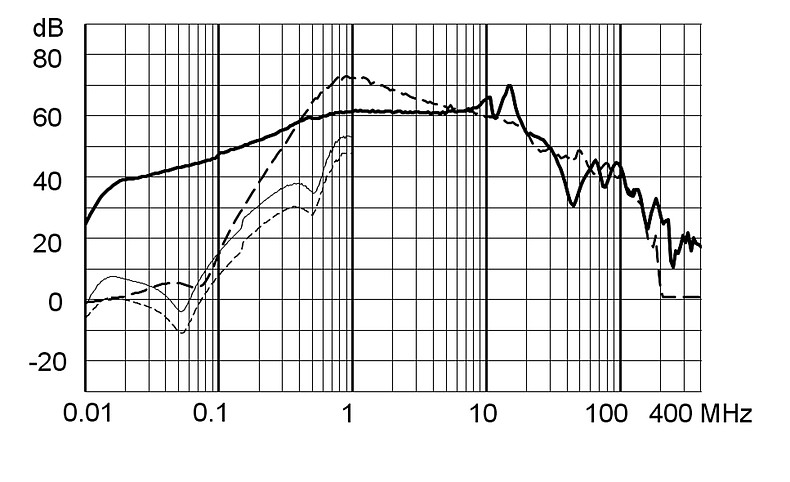

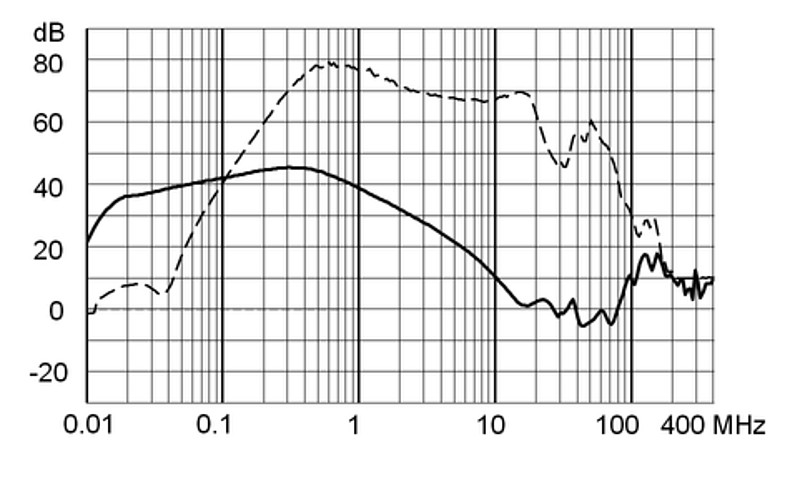

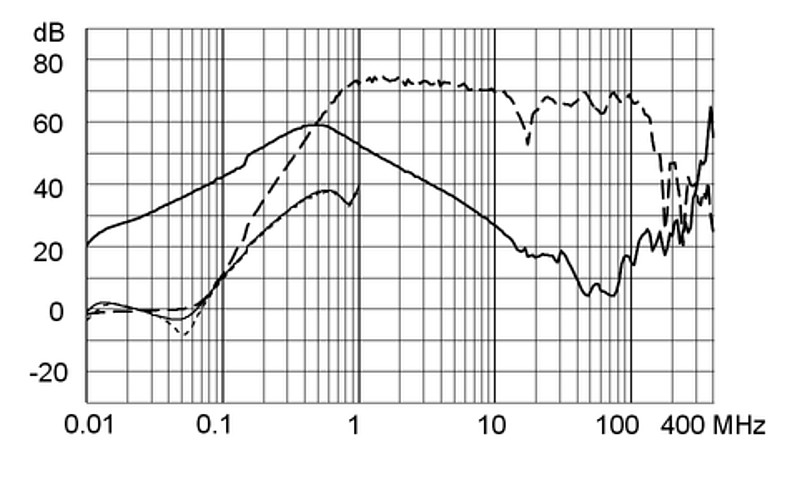

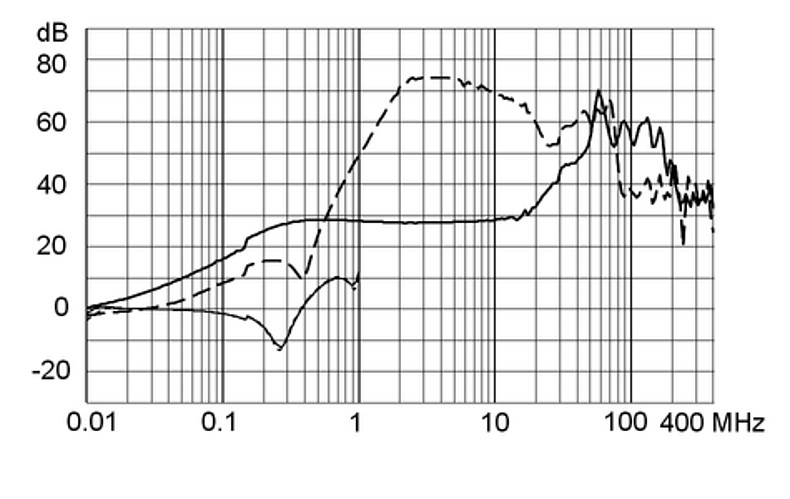

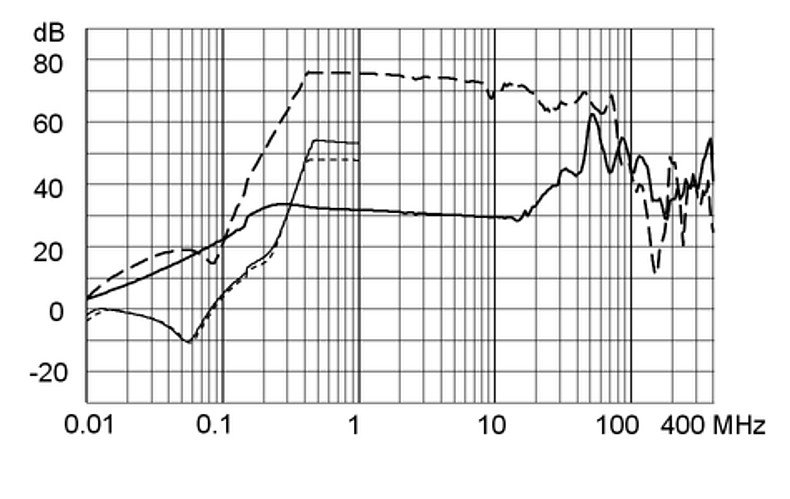

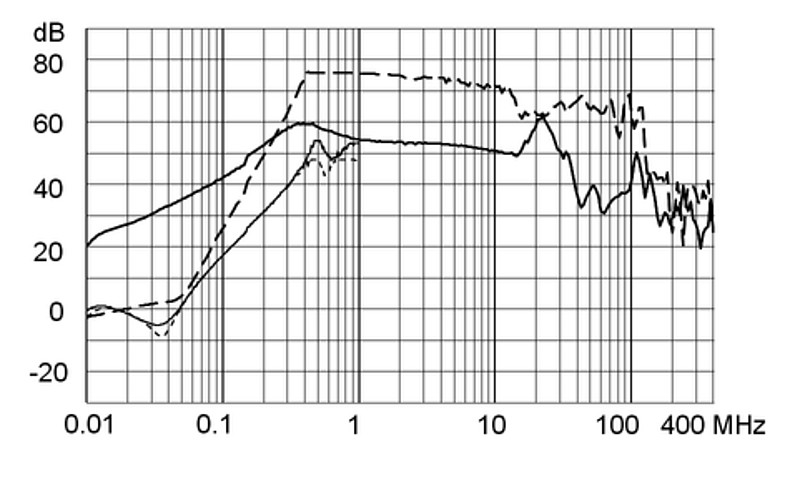

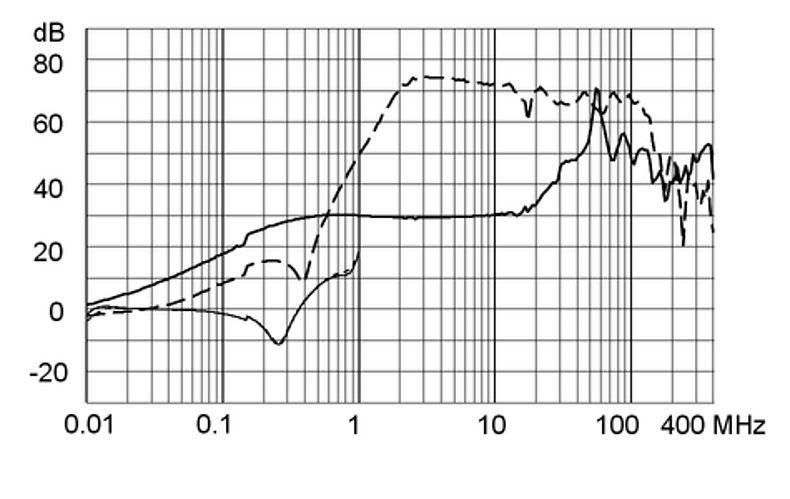

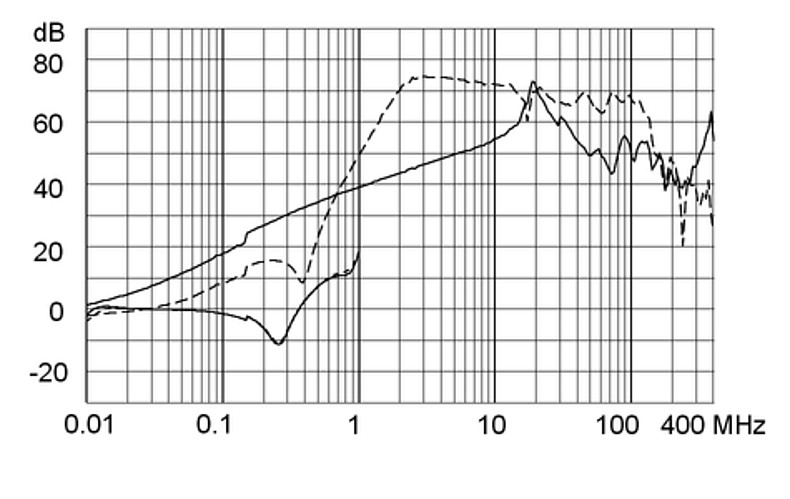

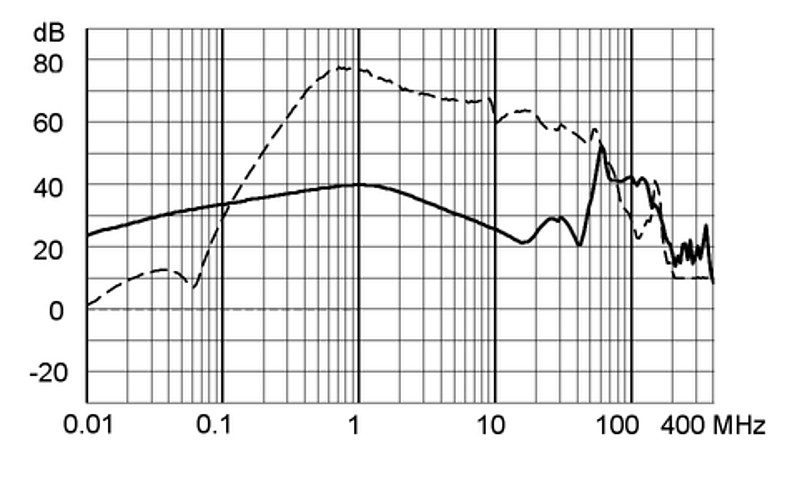

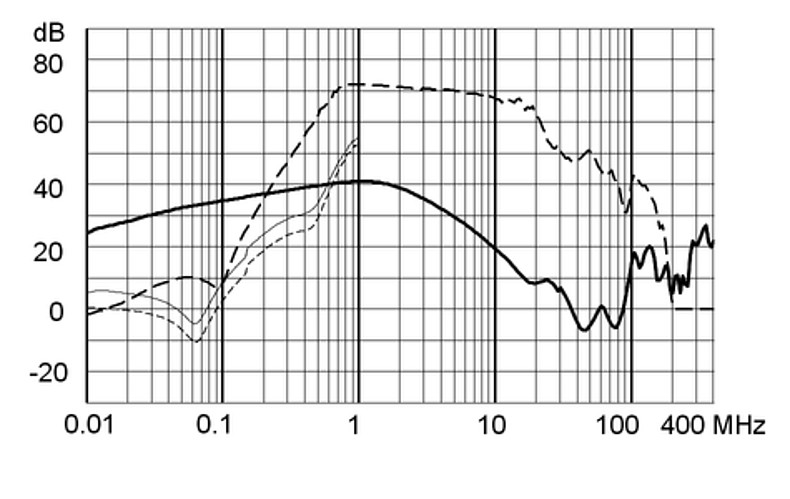

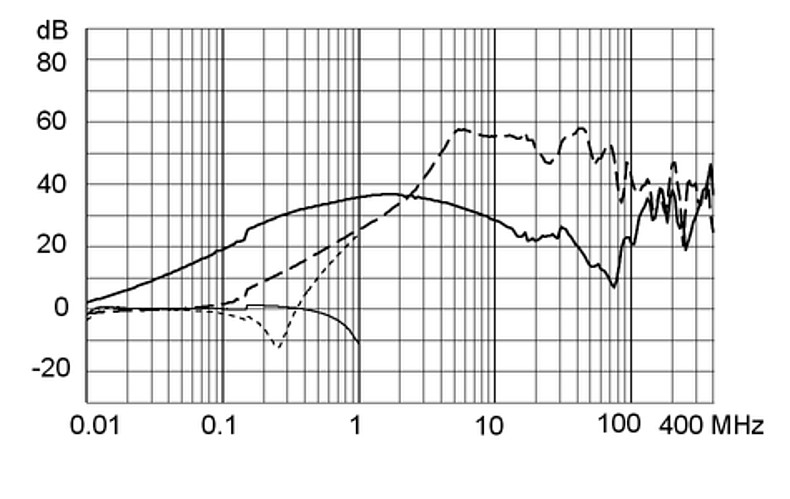

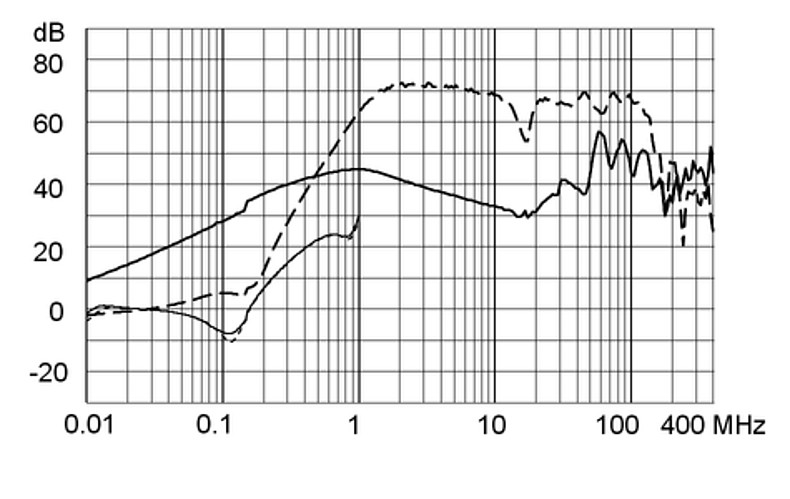

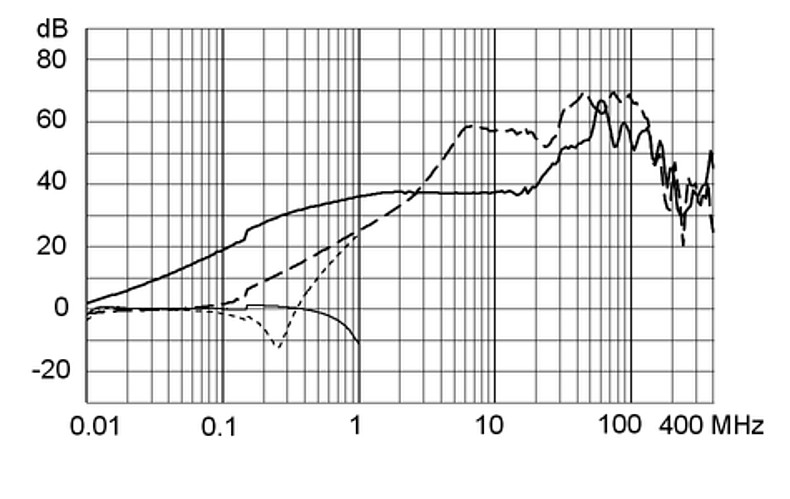

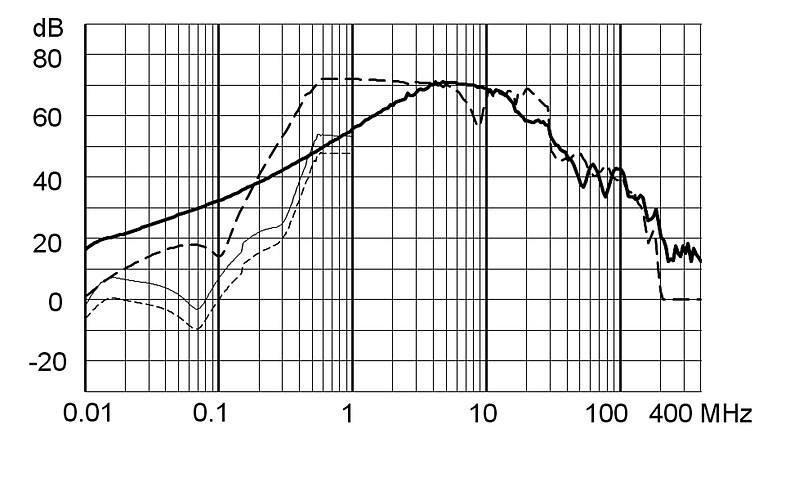

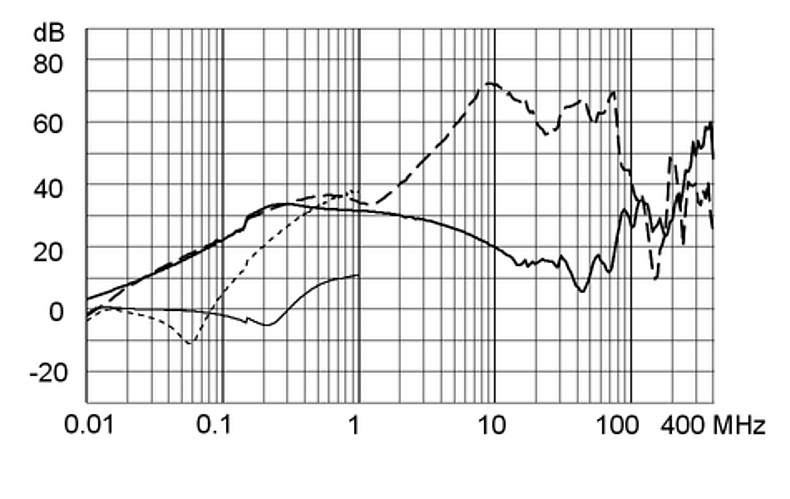

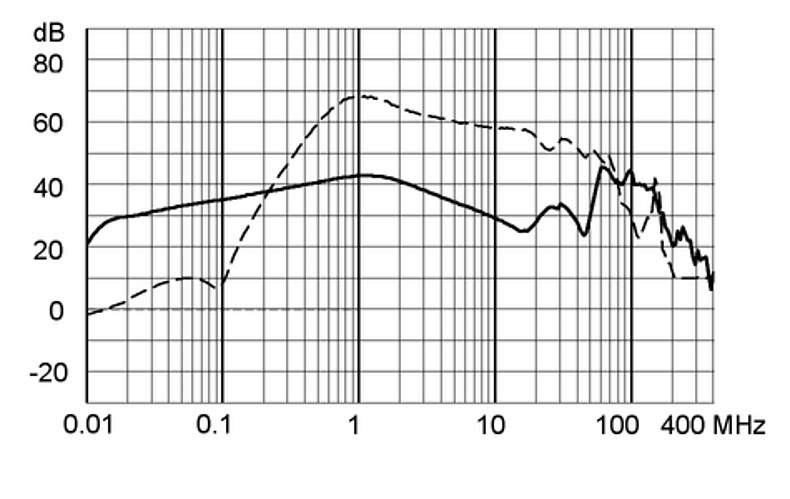

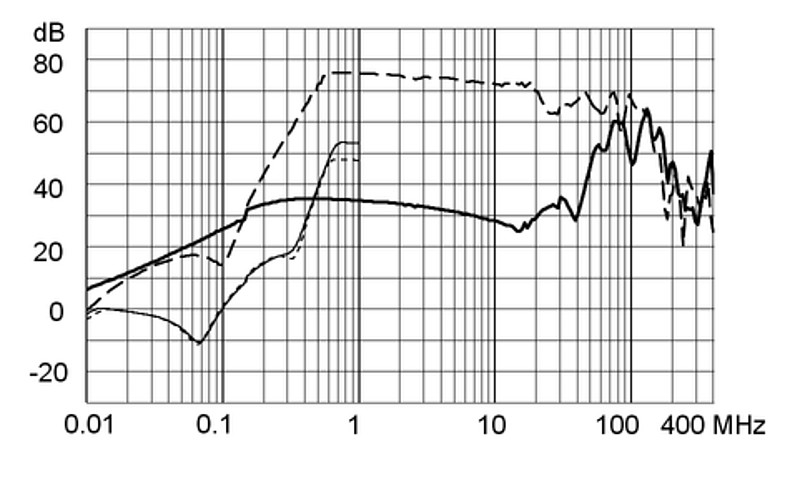

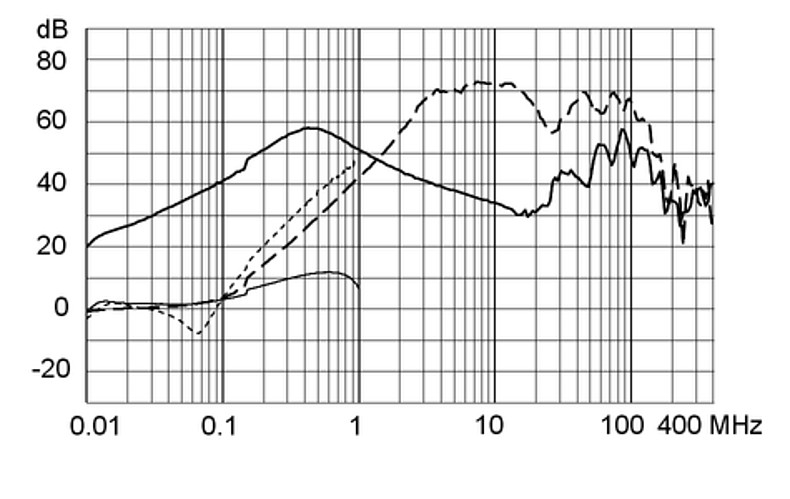

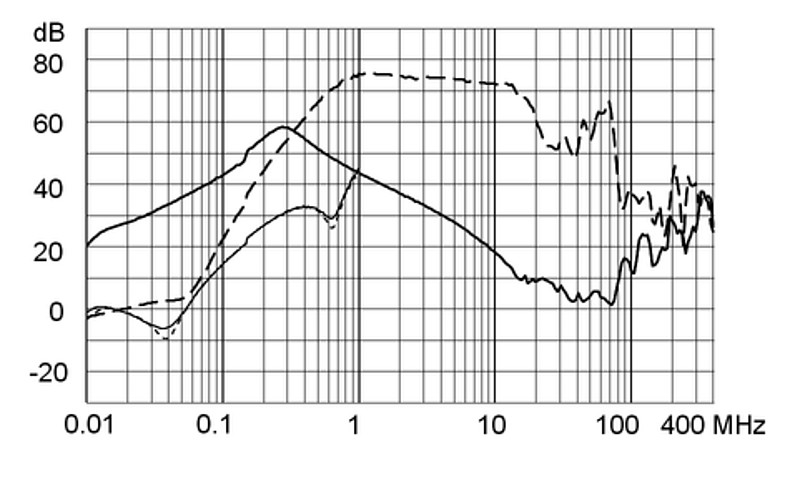

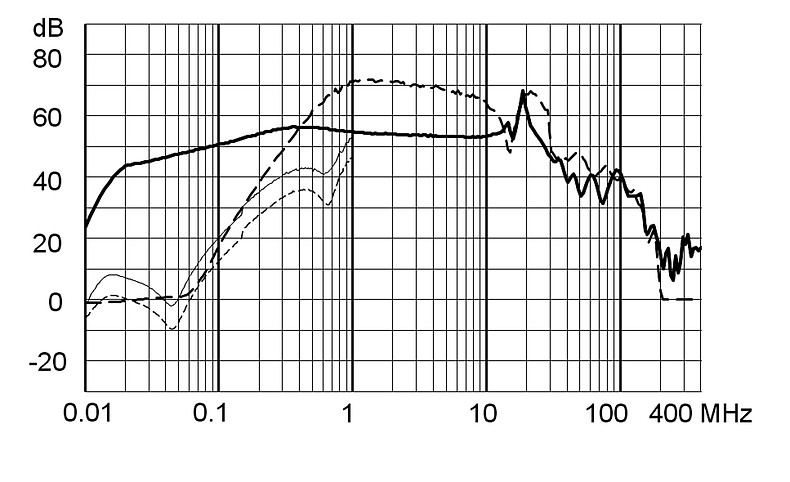

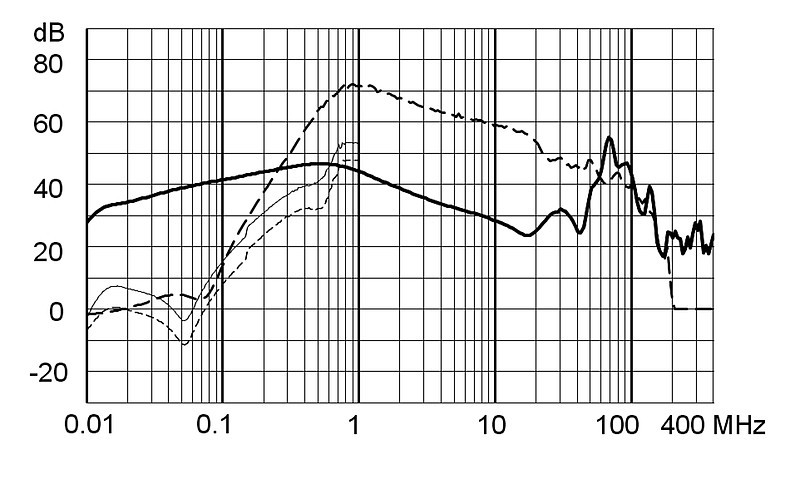

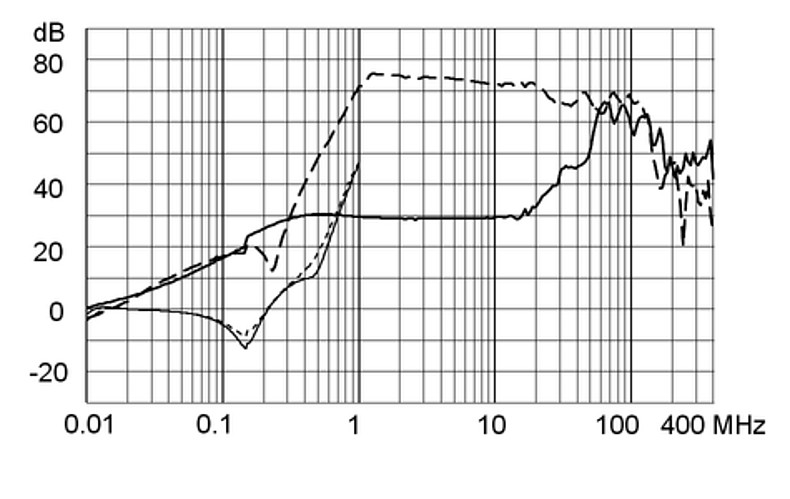

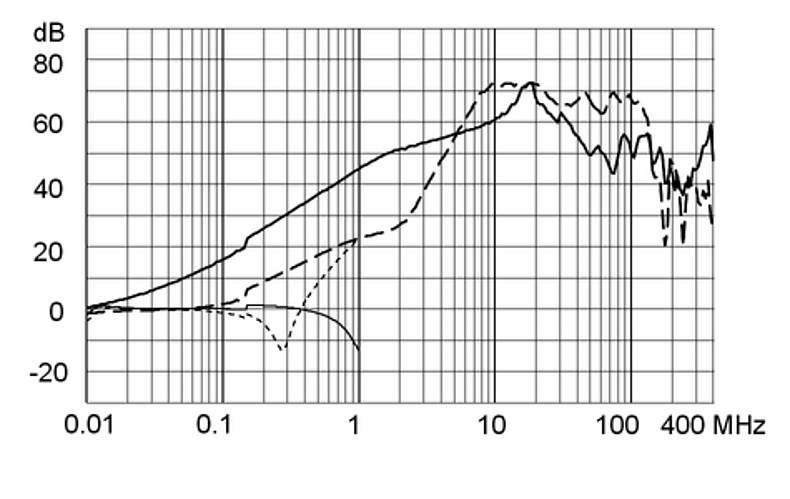

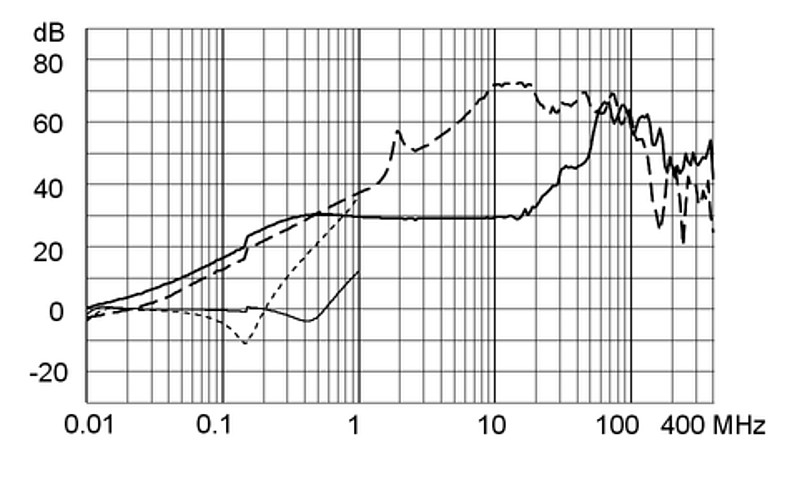

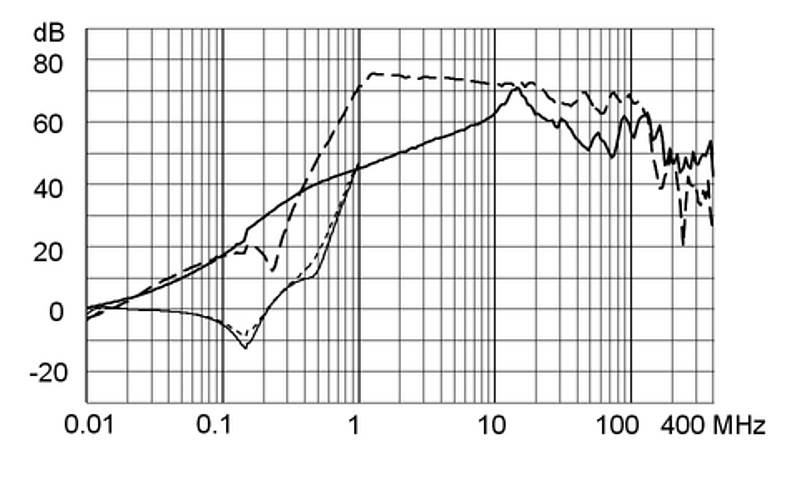

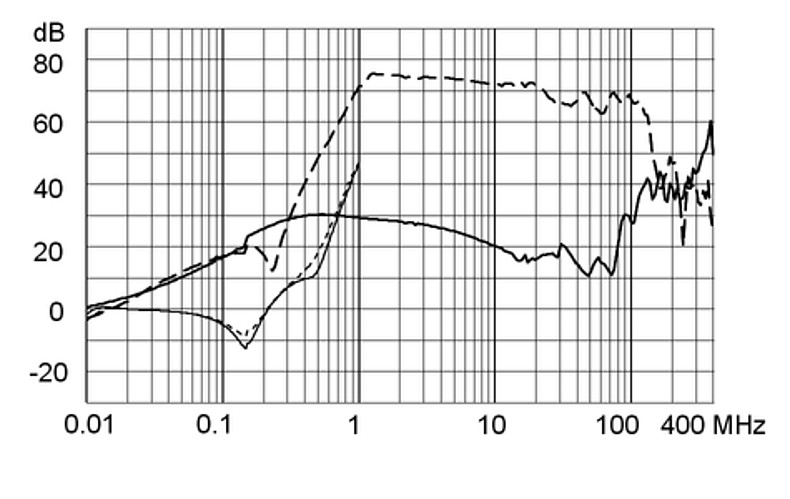

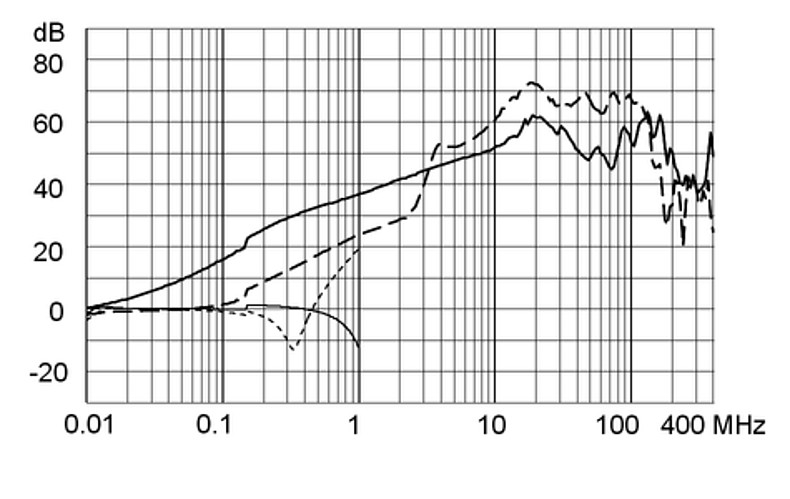

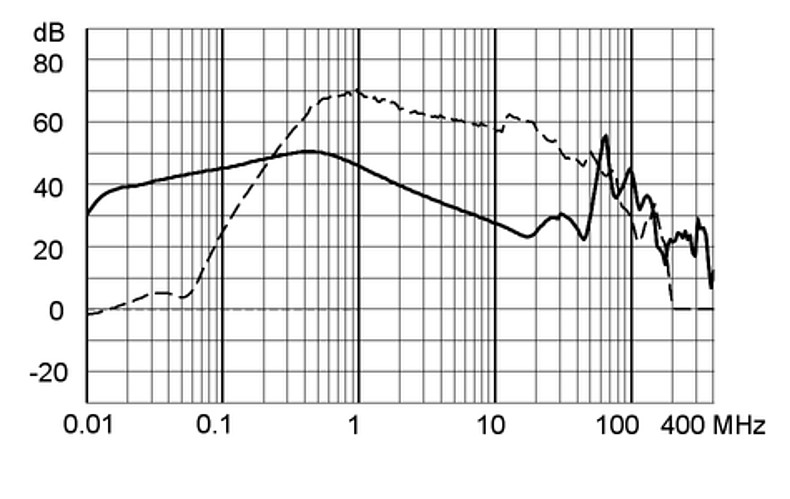

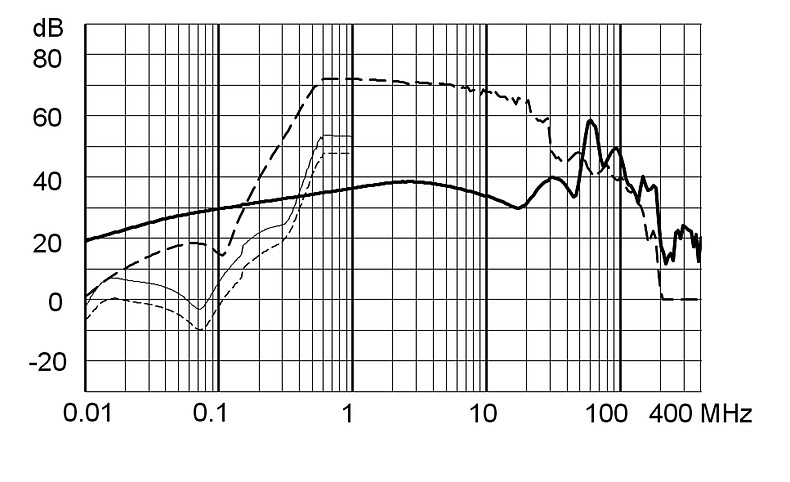

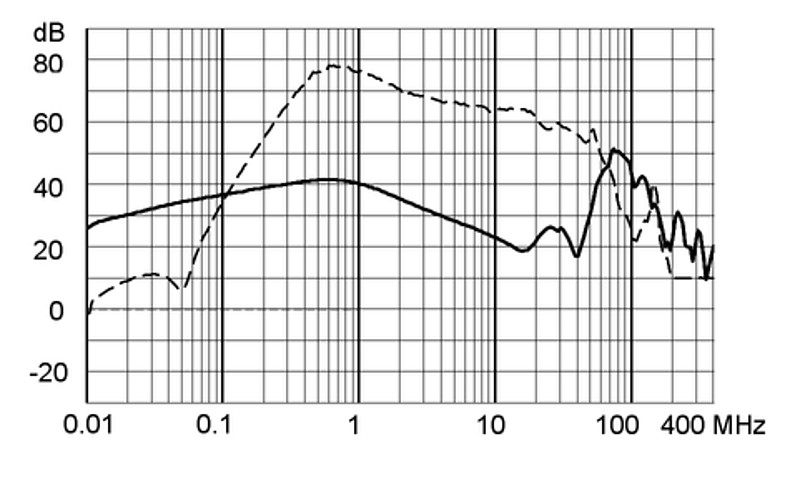

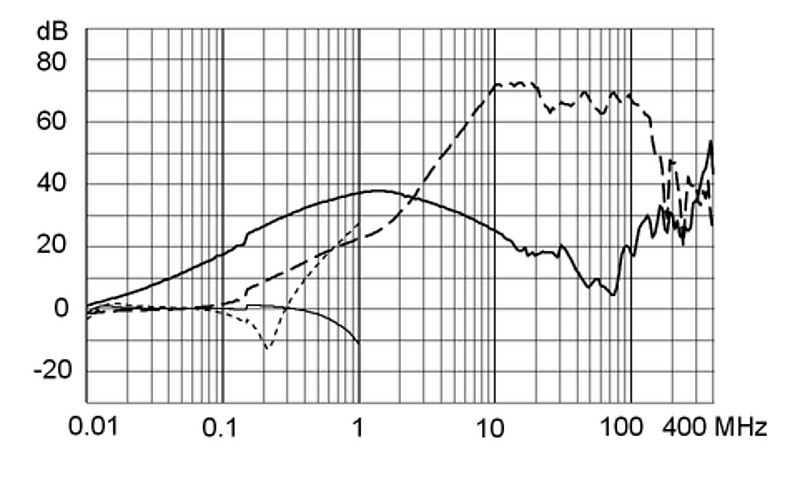

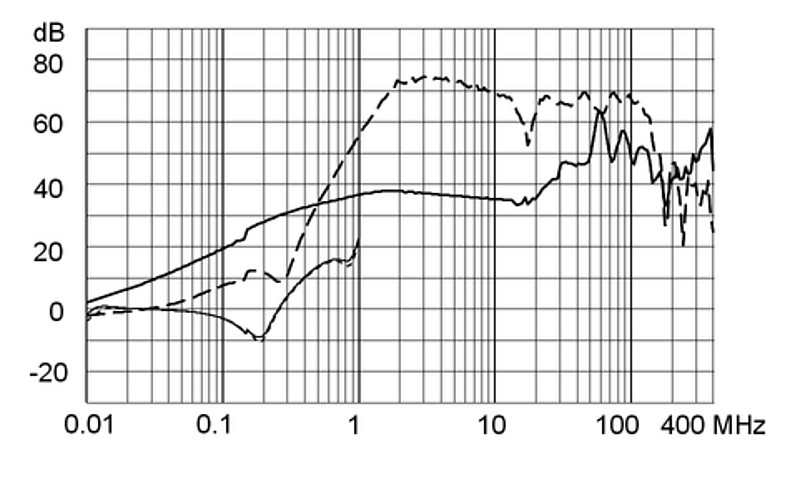

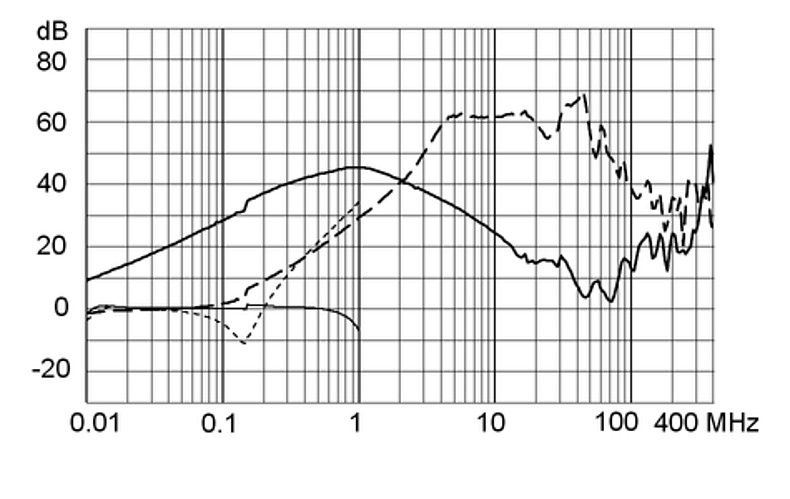

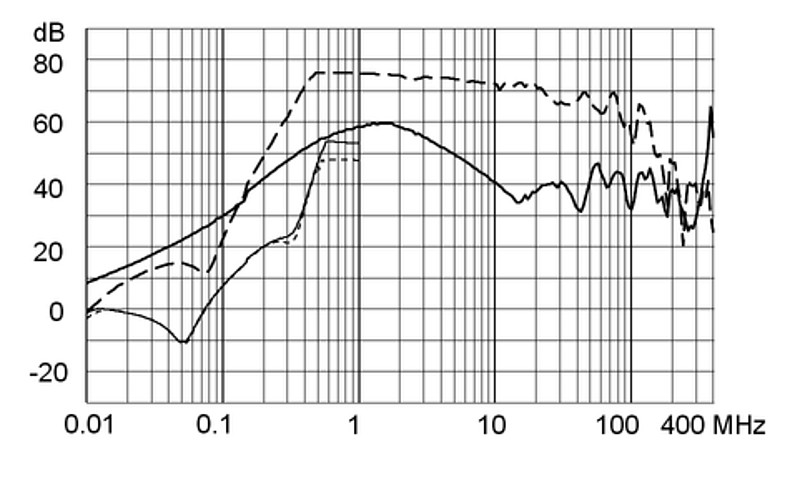

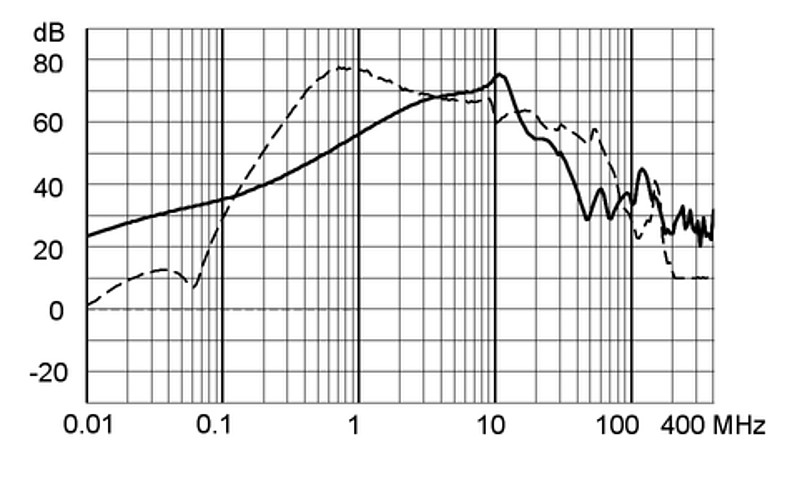

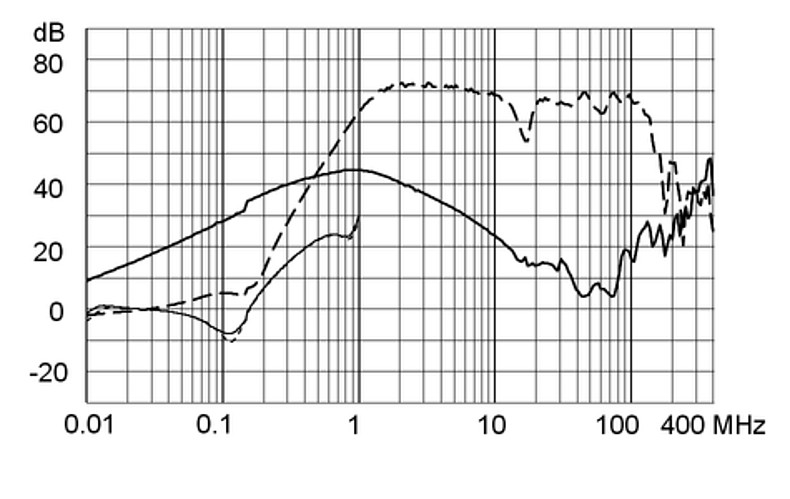

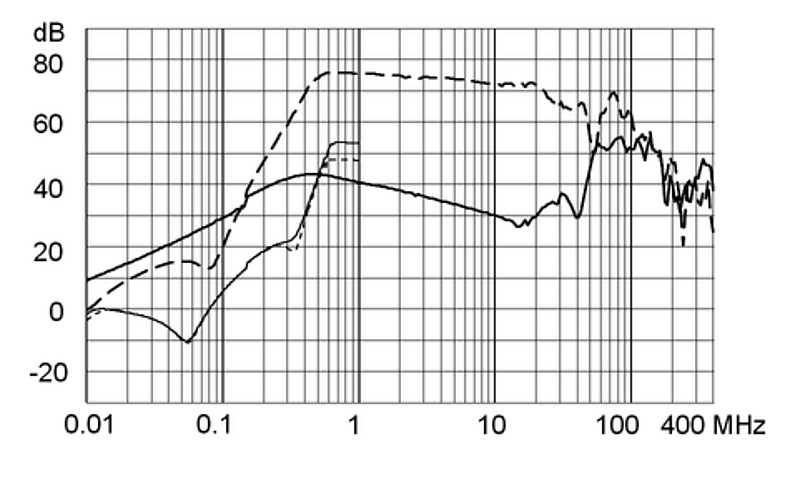

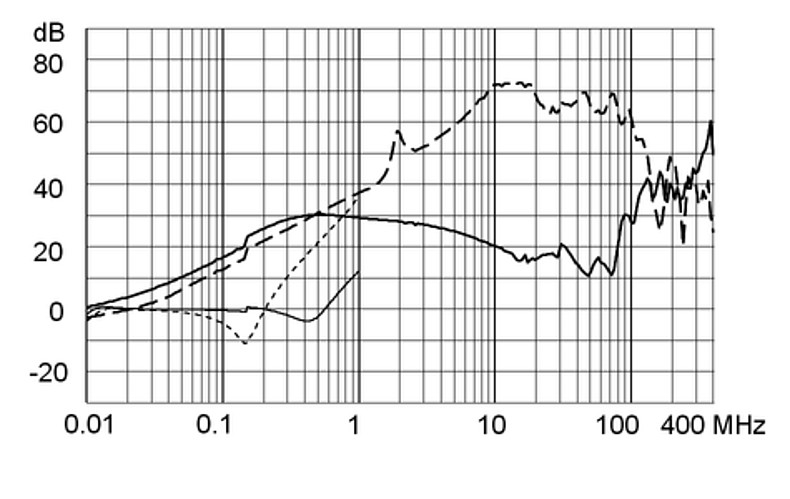

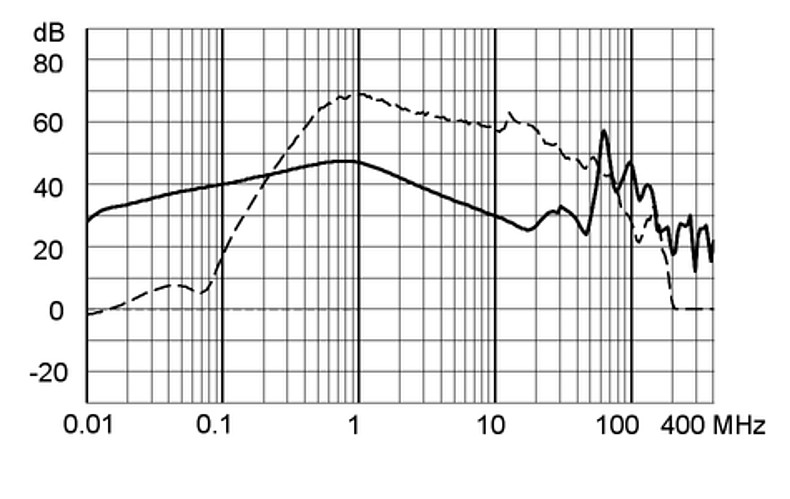

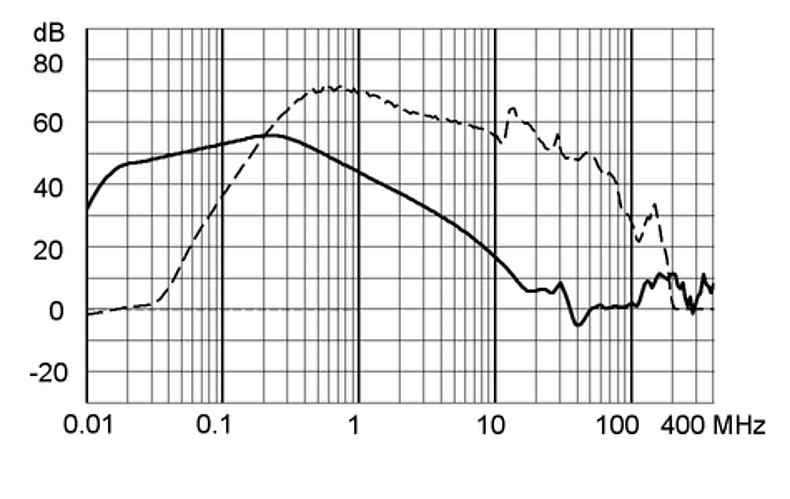

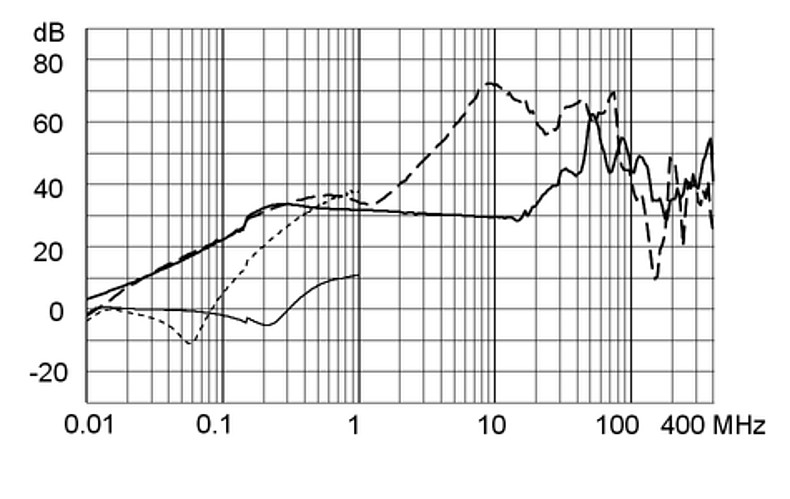

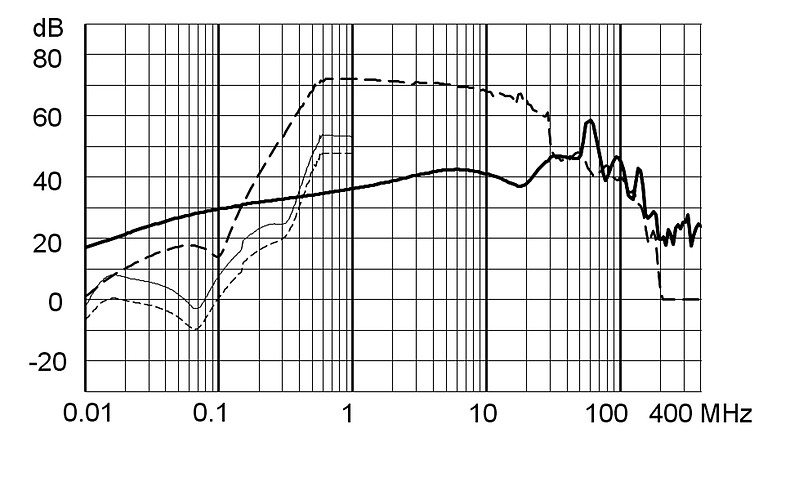

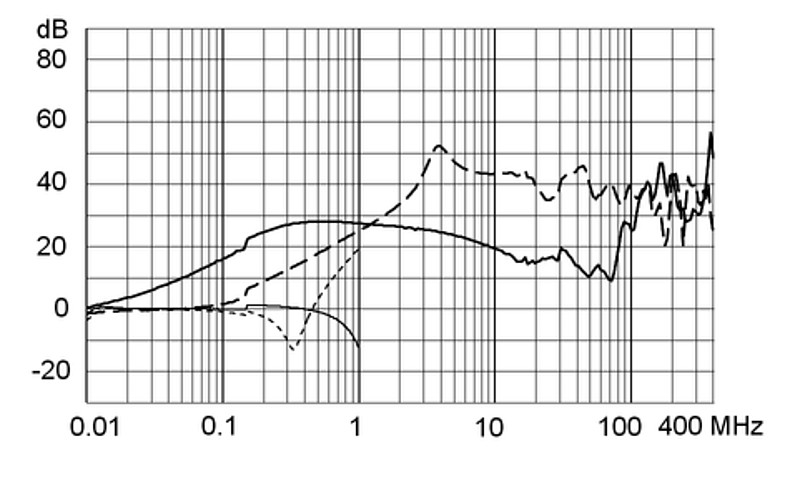

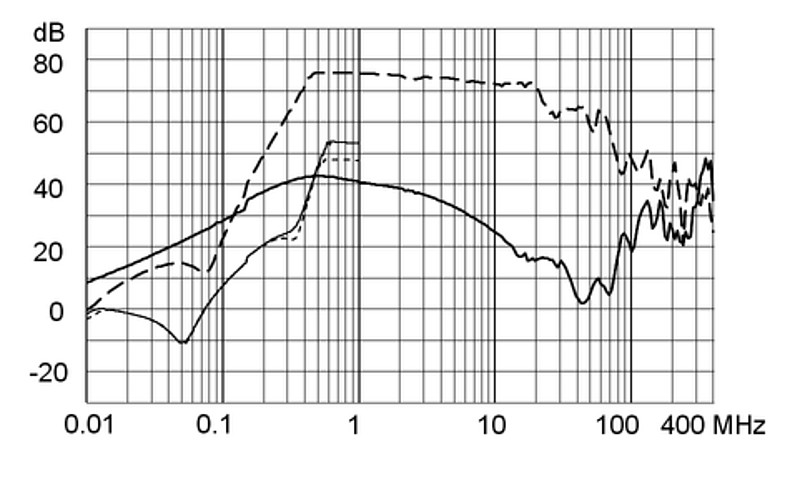

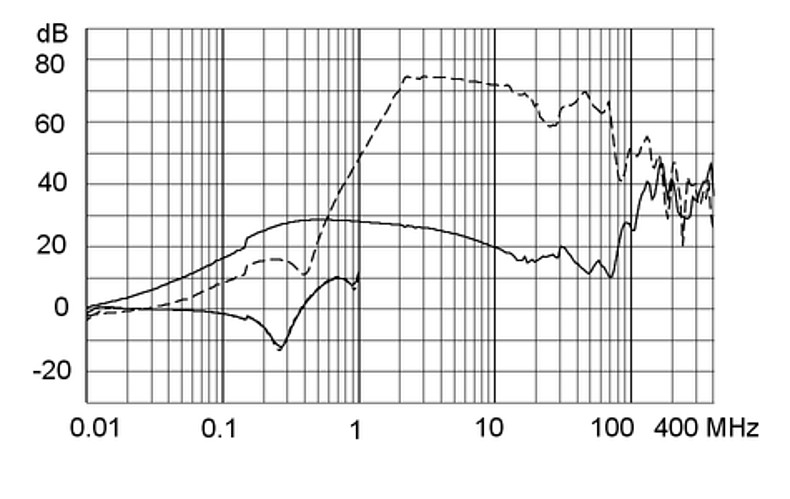

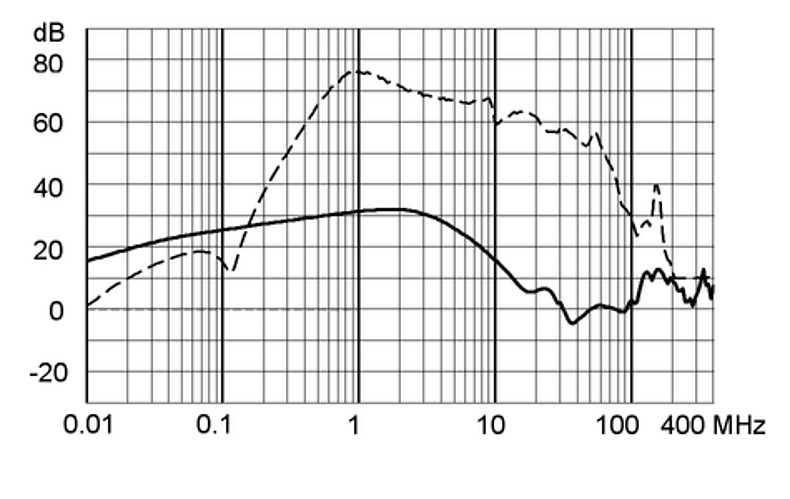

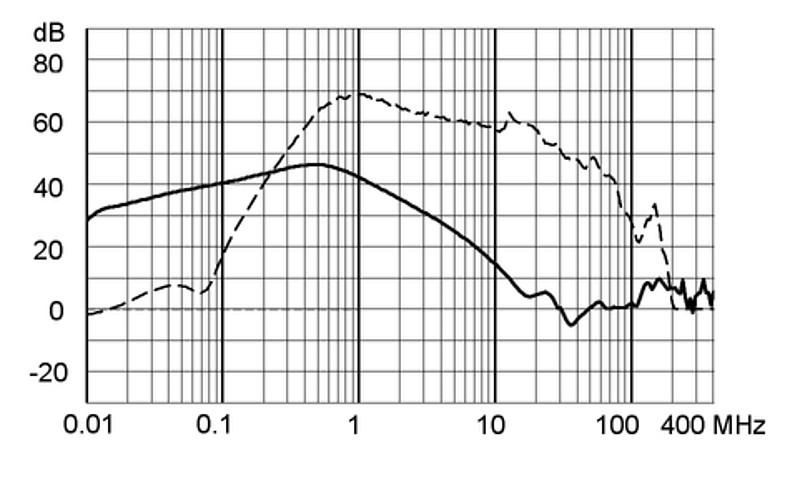

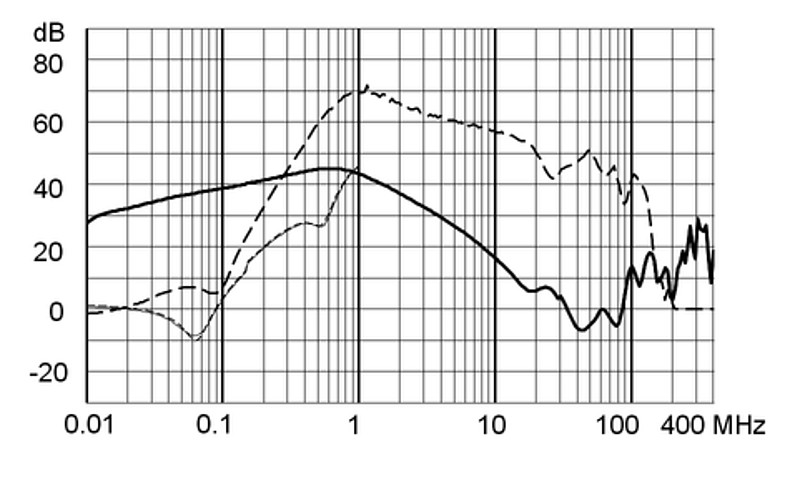

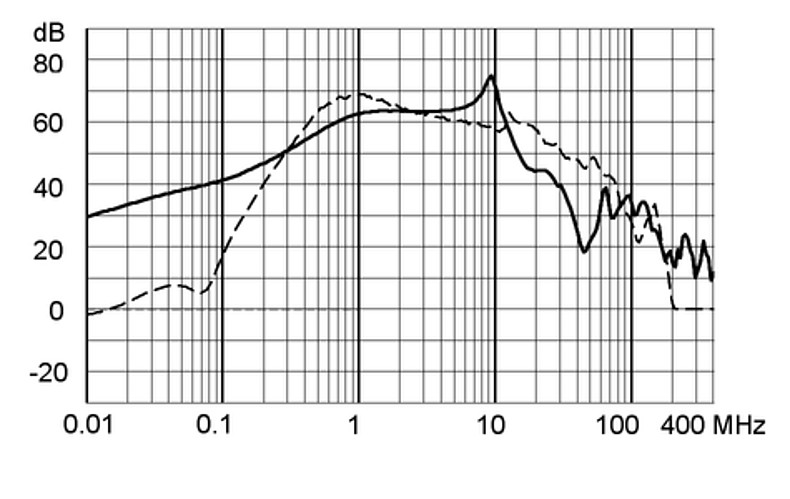

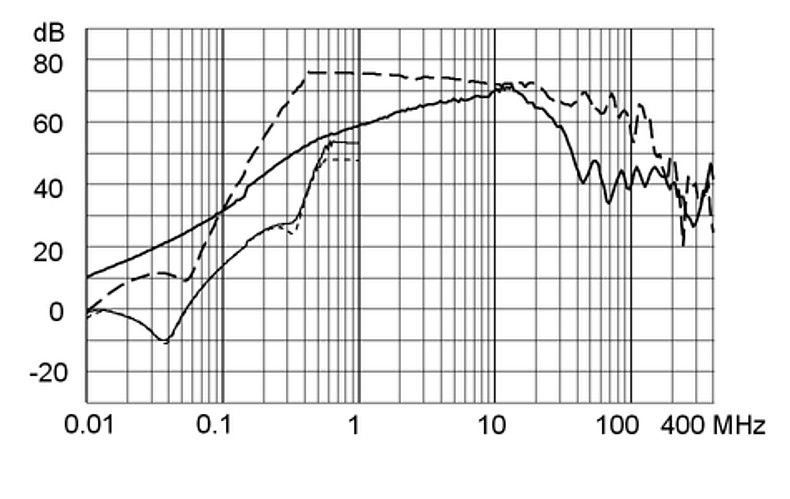

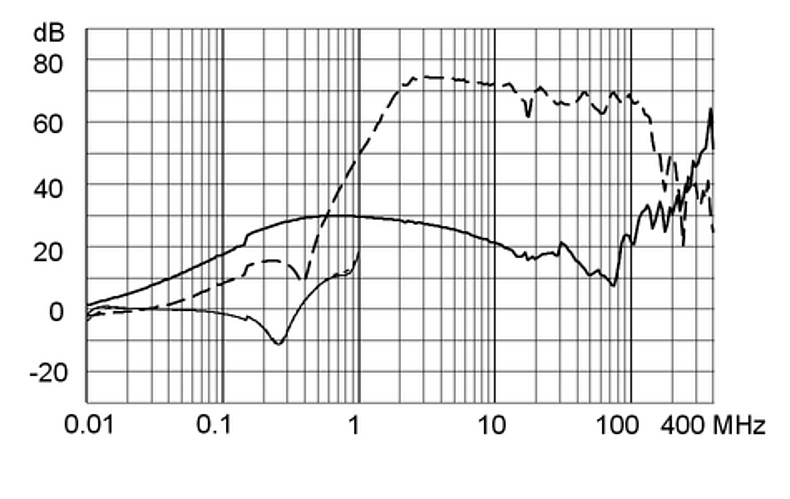

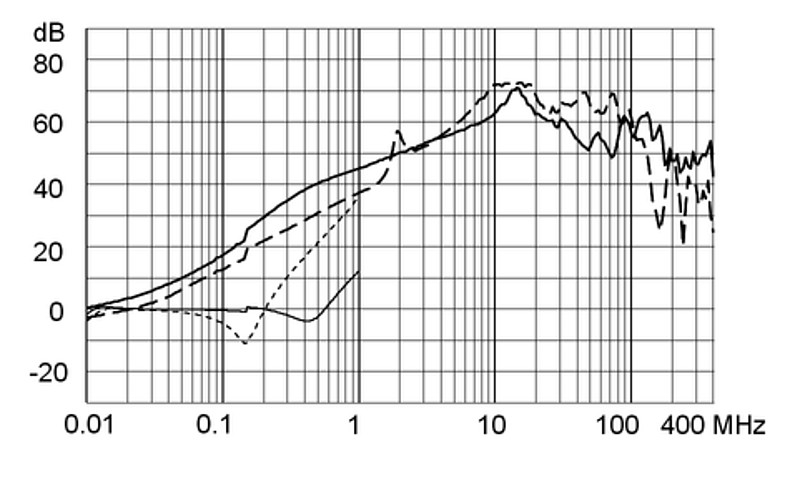

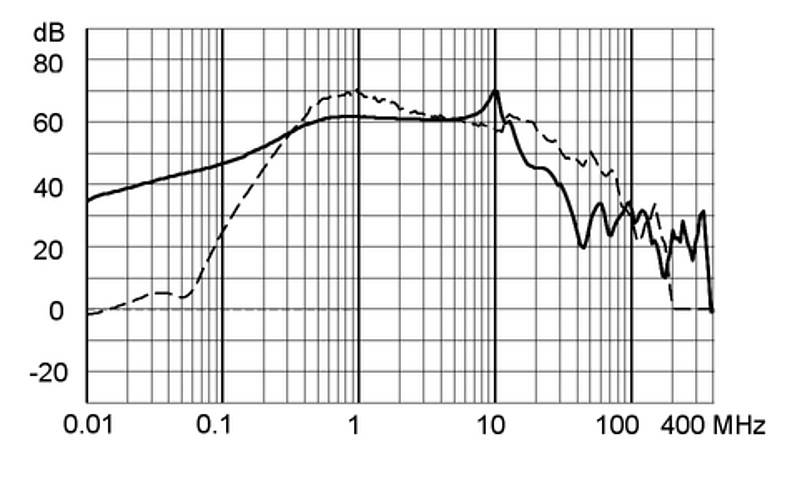

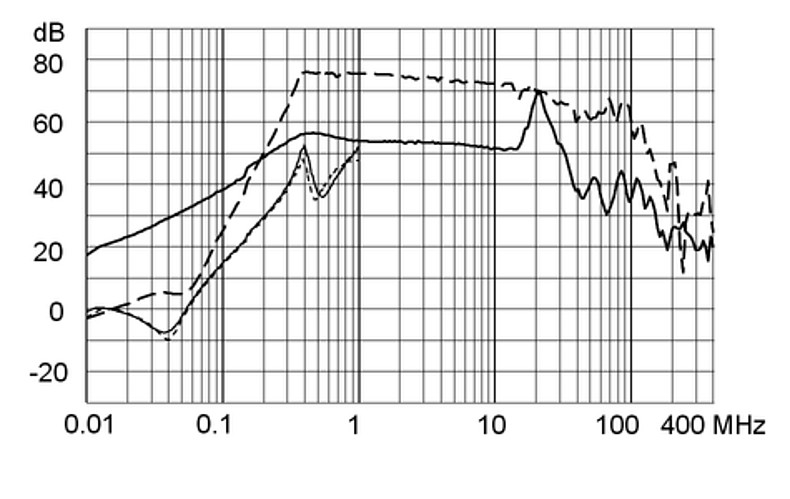

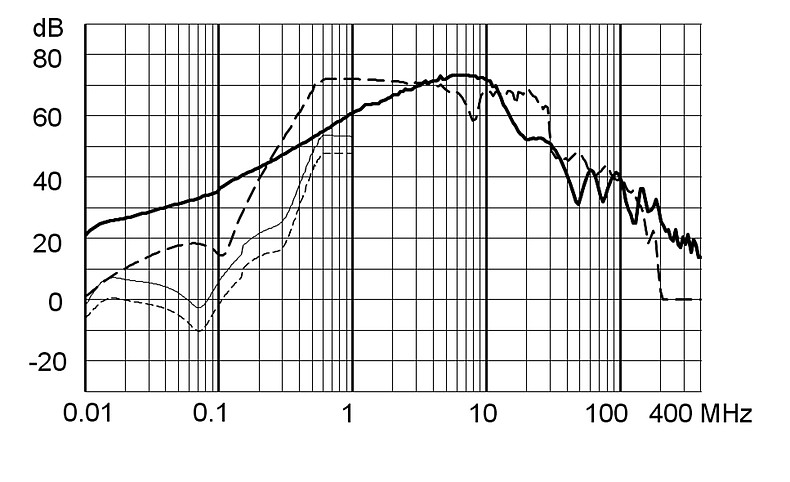

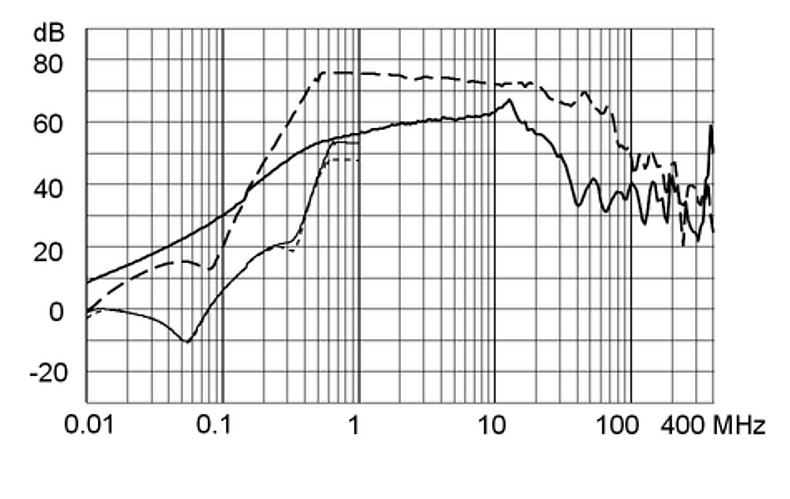

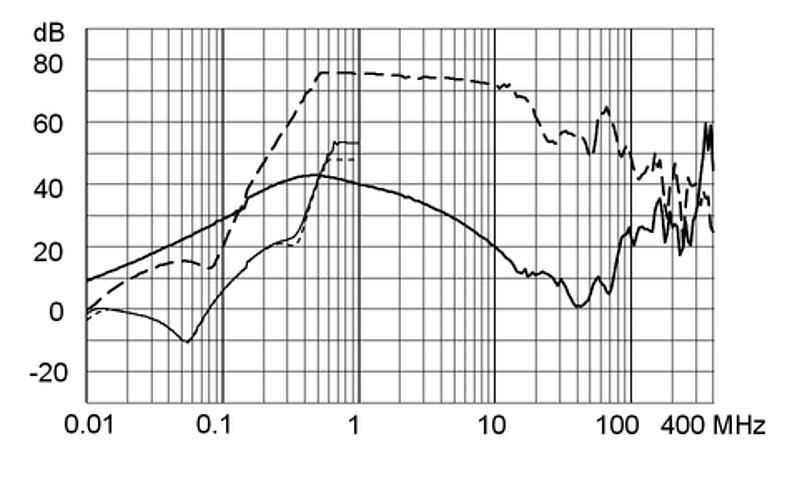

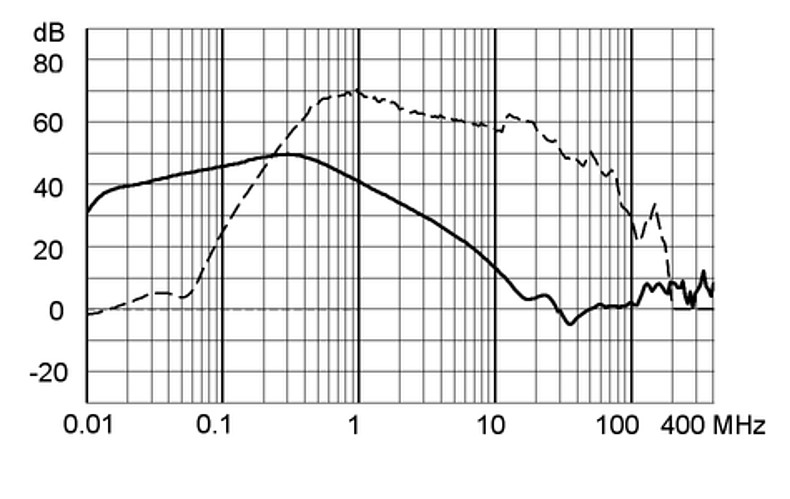

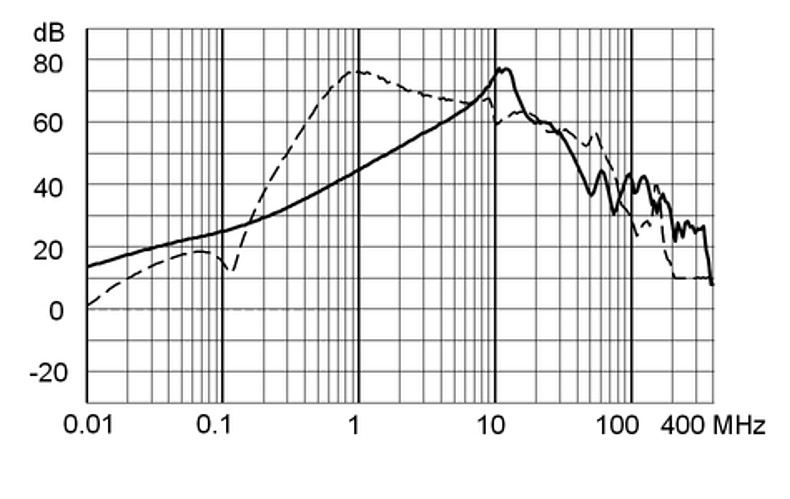

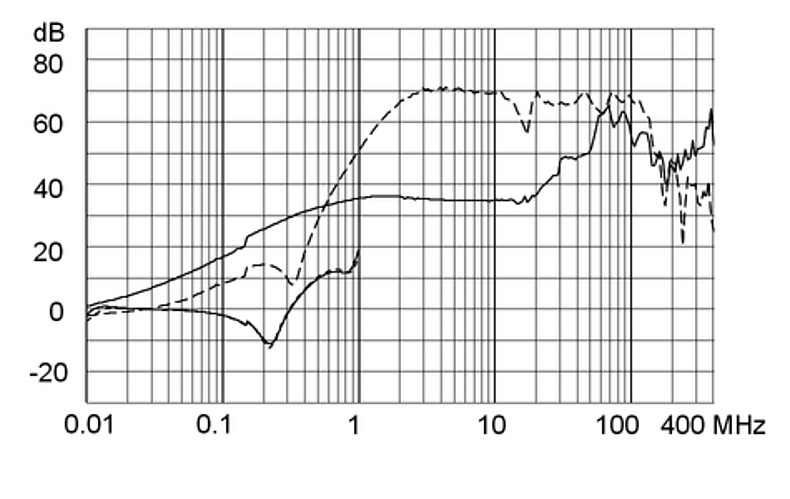

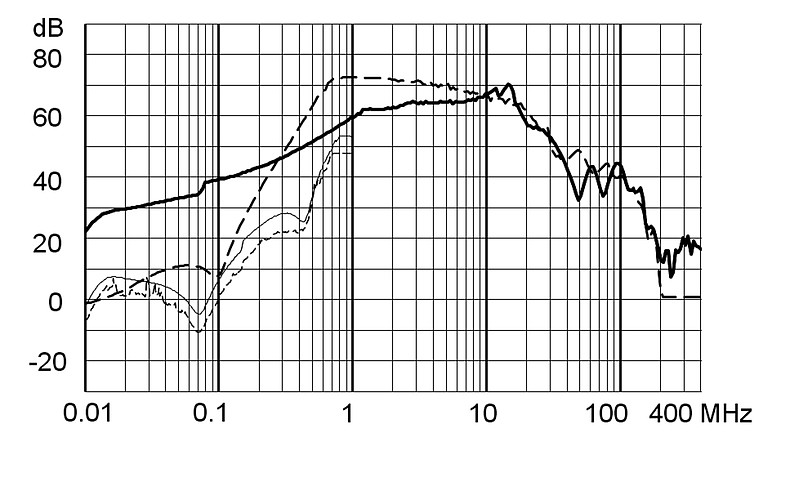

Attenuation Loss

Standard version

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

	30 A / Design N

	1 A / Design P

	3 A / Design P

	6 A / Design P

	10 A / Design P

	12 A / Design P

	16 A / Design P

	20 A / Design P

	30 A / Design P

	60 A / Design P

	1 A / Design Q

	3 A / Design Q

	6 A / Design Q

	10 A / Design Q

	12 A / Design Q

	16 A / Design Q

	20 A / Design Q

	30 A / Design Q

	60 A / Design Q

Medical version (M5)

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

	30 A / Design N

	1 A / Design P

	3 A / Design P

	6 A / Design P

	10 A / Design P

	12 A / Design P

	16 A / Design P

	20 A / Design P

	30 A / Design P

	60 A / Design P

	1 A / Design Q

	3 A / Design Q

	6 A / Design Q

	10 A / Design Q

	12 A / Design Q

	16 A / Design Q

	20 A / Design Q

	30 A / Design Q

	60 A / Design Q

Medical version (M80)

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

	30 A / Design N

	1 A / Design P

	3 A / Design P

	6 A / Design P

	10 A / Design P

	12 A / Design P

	16 A / Design P

	20 A / Design P

	30 A / Design P

	60 A / Design P

	1 A / Design Q

	3 A / Design Q

	6 A / Design Q

	10 A / Design Q

	12 A / Design Q

	16 A / Design Q

	20 A / Design Q

	30 A / Design Q

	60 A / Design Q

Standard with Earth Line Choke

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

Medical (M5) with Earth Line Choke

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

Medical (M80) with Earth Line Choke

	1 A / Design N

	3 A / Design N

	4 A / Design N

	6 A / Design N

	8 A / Design N

	10 A / Design N

	12 A / Design N

	16 A / Design N

	20 A / Design N

Standard HP

	1 A

	3 A

	4 A

	6 A

	8 A

	10 A

	12 A

	16 A

	20 A

	30 A

Medical (M5) HP

	1 A

	3 A

	4 A

	6 A

	8 A

	10 A

	12 A

	16 A

	20 A

	30 A

Medical (M80) HP

	1 A

	3 A

	4 A

	6 A

	8 A

	10 A

	12 A

	16 A

	20 A

	30 A

Short Table of Variants FMAB NEO Open complete table FMAB NEO

Rated current	Filter-Type	Terminal	Order Number Variant Details	A=Most Popular
[A]

1	Standard version	QC 6.3 x 0.8 mm	5500.2630.01		...
1	Standard version	QC 6.3 x 0.8 mm	5500.2630.21		...
1	Standard version	QC 6.3 x 0.8 mm	5500.2640.01	A	...
1	Standard version	QC 6.3 x 0.8 mm	5500.2650.01	A	...
3	Standard version	QC 6.3 x 0.8 mm	5500.2631.01	A	...
3	Standard version	QC 6.3 x 0.8 mm	5500.2631.21		...
3	Standard version	QC 6.3 x 0.8 mm	5500.2641.01		...
3	Standard version	QC 6.3 x 0.8 mm	5500.2651.01	A	...
4	Standard version	QC 6.3 x 0.8 mm	5500.2632.01	A	...
4	Standard version	QC 6.3 x 0.8 mm	5500.2632.21		...
6	Standard version	QC 6.3 x 0.8 mm	5500.2633.01	A	...
6	Standard version	QC 6.3 x 0.8 mm	5500.2633.21		...
6	Standard version	QC 6.3 x 0.8 mm	5500.2642.01		...
6	Standard version	QC 6.3 x 0.8 mm	5500.2652.01	A	...
8	Standard version	QC 6.3 x 0.8 mm	5500.2634.01	A	...
8	Standard version	QC 6.3 x 0.8 mm	5500.2634.21		...
10	Standard version	QC 6.3 x 0.8 mm	5500.2635.01	A	...
10	Standard version	QC 6.3 x 0.8 mm	5500.2635.21		...
10	Standard version	QC 6.3 x 0.8 mm	5500.2643.01	A	...
10	Standard version	QC 6.3 x 0.8 mm	5500.2653.01	A	...
12	Standard version	QC 6.3 x 0.8 mm	5500.2636.01	A	...
12	Standard version	QC 6.3 x 0.8 mm	5500.2636.21		...
12	Standard version	QC 6.3 x 0.8 mm	5500.2644.01	A	...
12	Standard version	QC 6.3 x 0.8 mm	5500.2654.01	A	...
16	Standard version	QC 6.3 x 0.8 mm	5500.2637.01	A	...
16	Standard version	QC 6.3 x 0.8 mm	5500.2637.21		...
16	Standard version	QC 6.3 x 0.8 mm	5500.2645.01	A	...
16	Standard version	QC 6.3 x 0.8 mm	5500.2655.01	A	...
20	Standard version	QC 6.3 x 0.8 mm	5500.2638.01	A	...
20	Standard version	QC 6.3 x 0.8 mm	5500.2638.21	A	...
20	Standard version	QC 6.3 x 0.8 mm	5500.2646.01	A	...
20	Standard version	QC 6.3 x 0.8 mm	5500.2656.01	A	...
30	Standard version	Bolt and nut M4	5500.2639.03	A	...
30	Standard version	Bolt and nut M4	5500.2647.03	A	...
30	Standard version	Bolt and nut M4	5500.2657.03	A	...
60	Standard version	Bolt and nut M6	5500.2648.03	A	...
60	Standard version	Bolt and nut M6	5500.2658.03	A	...
1	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-000	A	...
3	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-001	A	...
4	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-002	A	...
6	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-003	A	...
8	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-004	A	...
10	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-005	A	...
12	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-006	A	...
16	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-007	A	...
20	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-008	A	...
1	Standard version HP	QC 6.3 x 0.8 mm	3-143-596	A	...
3	Standard version HP	QC 6.3 x 0.8 mm	3-143-597	A	...
4	Standard version HP	QC 6.3 x 0.8 mm	3-143-598	A	...
6	Standard version HP	QC 6.3 x 0.8 mm	3-143-599	A	...
8	Standard version HP	QC 6.3 x 0.8 mm	3-143-600	A	...
10	Standard version HP	QC 6.3 x 0.8 mm	3-143-601	A	...
12	Standard version HP	QC 6.3 x 0.8 mm	3-143-602	A	...
16	Standard version HP	QC 6.3 x 0.8 mm	3-143-603	A	...
20	Standard version HP	QC 6.3 x 0.8 mm	3-143-604	A	...
30	Standard version HP	Bolt and nut M4	3-143-605	A	...
1	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-009		...
3	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-010		...
4	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-011		...
6	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-012		...
8	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-013		...
10	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-014		...
12	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-015		...
16	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-016		...
20	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-017		...
1	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-018		...
3	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-019		...
4	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-020		...
6	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-021		...
8	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-022		...
10	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-023		...
12	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-024		...
16	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-025		...
20	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	3-137-026		...
1	Medical (M5)	QC 6.3 x 0.8 mm	3-134-821		...
1	Medical (M5)	QC 6.3 x 0.8 mm	5500.2630.04		...
1	Medical (M5)	QC 6.3 x 0.8 mm	5500.2640.04		...
1	Medical (M5)	QC 6.3 x 0.8 mm	5500.2650.04		...
3	Medical (M5)	QC 6.3 x 0.8 mm	3-134-822		...
3	Medical (M5)	QC 6.3 x 0.8 mm	5500.2631.04		...
3	Medical (M5)	QC 6.3 x 0.8 mm	5500.2641.04		...
3	Medical (M5)	QC 6.3 x 0.8 mm	5500.2651.04		...
4	Medical (M5)	QC 6.3 x 0.8 mm	3-134-823		...
4	Medical (M5)	QC 6.3 x 0.8 mm	5500.2632.04		...
6	Medical (M5)	QC 6.3 x 0.8 mm	3-134-824		...
6	Medical (M5)	QC 6.3 x 0.8 mm	5500.2633.04		...
6	Medical (M5)	QC 6.3 x 0.8 mm	5500.2642.04		...
6	Medical (M5)	QC 6.3 x 0.8 mm	5500.2652.04		...
8	Medical (M5)	QC 6.3 x 0.8 mm	3-134-825		...
8	Medical (M5)	QC 6.3 x 0.8 mm	5500.2634.04		...
10	Medical (M5)	QC 6.3 x 0.8 mm	3-134-826		...
10	Medical (M5)	QC 6.3 x 0.8 mm	5500.2635.04		...
10	Medical (M5)	QC 6.3 x 0.8 mm	5500.2643.04		...
10	Medical (M5)	QC 6.3 x 0.8 mm	5500.2653.04		...
12	Medical (M5)	QC 6.3 x 0.8 mm	3-134-827		...
12	Medical (M5)	QC 6.3 x 0.8 mm	5500.2636.04		...
12	Medical (M5)	QC 6.3 x 0.8 mm	5500.2644.04		...
12	Medical (M5)	QC 6.3 x 0.8 mm	5500.2654.04		...
16	Medical (M5)	QC 6.3 x 0.8 mm	3-134-828		...
16	Medical (M5)	QC 6.3 x 0.8 mm	5500.2637.04		...
16	Medical (M5)	QC 6.3 x 0.8 mm	5500.2645.04		...
16	Medical (M5)	QC 6.3 x 0.8 mm	5500.2655.04		...
20	Medical (M5)	QC 6.3 x 0.8 mm	3-134-829		...
20	Medical (M5)	QC 6.3 x 0.8 mm	5500.2638.04		...
20	Medical (M5)	QC 6.3 x 0.8 mm	5500.2646.04		...
20	Medical (M5)	QC 6.3 x 0.8 mm	5500.2656.04		...
30	Medical (M5)	Bolt and nut M4	5500.2639.06		...
30	Medical (M5)	Bolt and nut M4	5500.2647.06		...
30	Medical (M5)	Bolt and nut M4	5500.2657.06		...
60	Medical (M5)	Bolt and nut M6	5500.2648.06		...
60	Medical (M5)	Bolt and nut M6	5500.2658.06		...
1	Medical (M80)	QC 6.3 x 0.8 mm	5500.2630.07		...
1	Medical (M80)	QC 6.3 x 0.8 mm	5500.2640.07		...
1	Medical (M80)	QC 6.3 x 0.8 mm	5500.2650.07		...
3	Medical (M80)	QC 6.3 x 0.8 mm	5500.2631.07		...
3	Medical (M80)	QC 6.3 x 0.8 mm	5500.2641.07		...
3	Medical (M80)	QC 6.3 x 0.8 mm	5500.2651.07		...
4	Medical (M80)	QC 6.3 x 0.8 mm	5500.2632.07		...
6	Medical (M80)	QC 6.3 x 0.8 mm	5500.2633.07		...
6	Medical (M80)	QC 6.3 x 0.8 mm	5500.2642.07		...
6	Medical (M80)	QC 6.3 x 0.8 mm	5500.2652.07		...
8	Medical (M80)	QC 6.3 x 0.8 mm	5500.2634.07		...
10	Medical (M80)	QC 6.3 x 0.8 mm	5500.2635.07		...
10	Medical (M80)	QC 6.3 x 0.8 mm	5500.2643.07		...
10	Medical (M80)	QC 6.3 x 0.8 mm	5500.2653.07		...
12	Medical (M80)	QC 6.3 x 0.8 mm	5500.2636.07		...
12	Medical (M80)	QC 6.3 x 0.8 mm	5500.2644.07		...
12	Medical (M80)	QC 6.3 x 0.8 mm	5500.2654.07		...
16	Medical (M80)	QC 6.3 x 0.8 mm	5500.2637.07		...
16	Medical (M80)	QC 6.3 x 0.8 mm	5500.2645.07		...
16	Medical (M80)	QC 6.3 x 0.8 mm	5500.2655.07		...
20	Medical (M80)	QC 6.3 x 0.8 mm	5500.2638.07		...
20	Medical (M80)	QC 6.3 x 0.8 mm	5500.2646.07		...
20	Medical (M80)	QC 6.3 x 0.8 mm	5500.2656.07		...
30	Medical (M80)	Bolt and nut M4	5500.2639.09		...
30	Medical (M80)	Bolt and nut M4	5500.2647.09		...
30	Medical (M80)	Bolt and nut M4	5500.2657.09		...
60	Medical (M80)	Bolt and nut M6	5500.2648.09		...
60	Medical (M80)	Bolt and nut M6	5500.2658.09		...
1	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-830		...
1	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-606	A	...
3	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-831		...
3	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-607	A	...
4	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-832		...
4	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-608	A	...
6	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-833		...
6	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-609	A	...
8	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-834		...
8	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-610	A	...
10	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-835		...
10	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-611	A	...
12	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-836		...
12	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-612	A	...
16	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-837		...
16	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-613	A	...
20	Medical (M5) HP	QC 6.3 x 0.8 mm	3-134-838		...
20	Medical (M5) HP	QC 6.3 x 0.8 mm	3-143-614	A	...
30	Medical (M5) HP	Bolt and nut M4	3-143-615	A	...
1	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-616		...
3	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-617		...
4	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-618		...
6	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-619		...
8	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-620		...
10	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-621		...
12	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-622		...
16	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-623		...
20	Medical (M80) HP	QC 6.3 x 0.8 mm	3-143-624		...
30	Medical (M80) HP	Bolt and nut M4	3-143-625		...
█ Most Popular. 4 designs N) excellent symmetrical noise attenuation␍␉ P) high symmetrical noise attenuation␍␉ Q) standard symmetrical noise attenuation␍␉ HP) high performance 60A medical filter M5 and M80, design P, are only suitable for medical equipment intended for permanently connection to the mains.

Table of Variants FMAB NEO

Rated current	Filter-Type	Terminal	Design	Protection Class	Leakage Current	Ri	Power Loss	Surge protection	Weight	Housing	Packaging	Order Number Variant Details	A=Most Popular	PU
[A]					[mA]	[mΩ]	[W]		[g]		[ST]

1	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	475	1	-	72 g	PG	15	5500.2630.01		15
1	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	475	1	VDR	72 g	PG	15	5500.2630.21		15
1	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	320	0.65	-	80 g	QC	15	5500.2640.01	A	15
1	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	320	0.65	-	66 g	PG	15	5500.2650.01	A	15
3	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	83	1.5	-	104 g	PH	15	5500.2631.01	A	15
3	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	83	1.5	VDR	104 g	PH	15	5500.2631.21		15
3	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	36	0.65	-	81 g	QC	15	5500.2641.01		15
3	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	36	0.65	-	70 g	PG	15	5500.2651.01	A	15
4	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	53	1.7	-	108 g	PH	15	5500.2632.01	A	15
4	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	53	1.7	VDR	108 g	PH	15	5500.2632.21		15
6	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	32.5	2.4	-	109 g	PH	15	5500.2633.01	A	15
6	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	32.5	2.4	VDR	109 g	PH	15	5500.2633.21		15
6	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	12	0.86	-	80 g	QC	15	5500.2642.01		15
6	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	12	0.86	-	100 g	PG	15	5500.2652.01	A	15
8	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	29.2	3.8	-	190 g	PI	10	5500.2634.01	A	10
8	Standard version	QC 6.3 x 0.8 mm	N	I	0.5	29.2	3.8	VDR	190 g	PI	10	5500.2634.21		10
10	Standard version	QC 6.3 x 0.8 mm	N	I	1	22.8	4.6	-	200 g	PI	10	5500.2635.01	A	10
10	Standard version	QC 6.3 x 0.8 mm	N	I	1	22.8	4.6	VDR	200 g	PI	10	5500.2635.21		10
10	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	5	1	-	87 g	QC	15	5500.2643.01	A	15
10	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	5	1	-	90 g	QC	15	5500.2653.01	A	15
12	Standard version	QC 6.3 x 0.8 mm	N	I	1	13.2	3.8	-	201 g	PI	10	5500.2636.01	A	10
12	Standard version	QC 6.3 x 0.8 mm	N	I	1	13.2	3.8	VDR	201 g	PI	10	5500.2636.21		10
12	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	4	1.2	-	92 g	QC	15	5500.2644.01	A	15
12	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	4	1.2	-	90 g	QC	15	5500.2654.01	A	15
16	Standard version	QC 6.3 x 0.8 mm	N	I	1	7.2	3.7	-	308 g	PK	10	5500.2637.01	A	10
16	Standard version	QC 6.3 x 0.8 mm	N	I	1	7.2	3.7	VDR	308 g	PK	10	5500.2637.21		10
16	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	2	1	-	138 g	QD	15	5500.2645.01	A	15
16	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	2	1	-	136 g	QD	15	5500.2655.01	A	15
20	Standard version	QC 6.3 x 0.8 mm	N	I	1	6.0	4.8	-	322 g	PK	10	5500.2638.01	A	10
20	Standard version	QC 6.3 x 0.8 mm	N	I	1	6.0	4.8	VDR	322 g	PK	10	5500.2638.21	A	10
20	Standard version	QC 6.3 x 0.8 mm	P	I	0.5	1.9	1.5	-	206 g	PI	10	5500.2646.01	A	10
20	Standard version	QC 6.3 x 0.8 mm	Q	I	0.5	1.9	1.5	-	204 g	PI	10	5500.2656.01	A	10
30	Standard version	Bolt and nut M4	N	I	1	2.9	5.2	-	355 g	PK	10	5500.2639.03	A	10
30	Standard version	Bolt and nut M4	P	I	1	1	1.8	-	450 g	QE	5	5500.2647.03	A	5
30	Standard version	Bolt and nut M4	Q	I	1	1	1.8	-	450 g	QE	5	5500.2657.03	A	5
60	Standard version	Bolt and nut M6	P	I	1	1	7.2	-	1220 g	QF	1	5500.2648.03	A	1
60	Standard version	Bolt and nut M6	Q	I	1	1	7.2	-	1220 g	QF	1	5500.2658.03	A	1
1	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	390	1	-	100 g	UI	15	3-137-000	A	15
3	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	62	1.2	-	104 g	UI	15	3-137-001	A	15
4	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	36	1.3	-	108 g	UI	15	3-137-002	A	15
6	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	21	1.6	-	110 g	UI	15	3-137-003	A	15
8	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	29	3.8	-	280 g	UG	10	3-137-004	A	10
10	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	13	2.6	-	295 g	UG	10	3-137-005	A	10
12	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	9	2.6	-	300 g	UG	10	3-137-006	A	10
16	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	3.3	2.8	-	310 g	UG	10	3-137-007	A	10
20	Standard Version with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	1.57	1	3.5	-	322 g	UG	10	3-137-008	A	10
1	Standard version HP	QC 6.3 x 0.8 mm	N	I	0.74	286	0.57	-	72 g	PG	15	3-143-596	A	15
3	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.07	55	0.99	-	104 g	PH	15	3-143-597	A	15
4	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.07	33	1.06	-	108 g	PH	15	3-143-598	A	15
6	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.07	20.5	1.48	-	109 g	PH	15	3-143-599	A	15
8	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.57	21.6	2.76	-	190 g	PI	10	3-143-600	A	10
10	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.57	15.5	3.1	-	200 g	PI	10	3-143-601	A	10
12	Standard version HP	QC 6.3 x 0.8 mm	N	I	1.57	11	3.17	-	201 g	PI	10	3-143-602	A	10
16	Standard version HP	QC 6.3 x 0.8 mm	N	I	2.36	6.9	3.53	-	308 g	UB	10	3-143-603	A	10
20	Standard version HP	QC 6.3 x 0.8 mm	N	I	2.36	6.2	4.96	-	322 g	PK	10	3-143-604	A	10
30	Standard version HP	Bolt and nut M4	N	I	2.36	2.9	5.2	-	355 g	PK	10	3-143-605	A	10
1	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	390	1	-	100 g	UI	15	3-137-009		15
3	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	62	1.2	-	104 g	UI	15	3-137-010		15
4	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	36	1.3	-	108 g	UI	15	3-137-011		15
6	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	21	1.6	-	110 g	UI	15	3-137-012		15
8	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	29	3.8	-	280 g	UG	10	3-137-013		10
10	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	13	2.6	-	295 g	UG	10	3-137-014		10
12	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	9	2.6	-	300 g	UG	10	3-137-015		10
16	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	3.3	2.8	-	310 g	UG	10	3-137-016		10
20	Medical Version (M5) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.005	1	3.5	-	322 g	UG	10	3-137-017		10
1	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	390	1	-	100 g	UI	15	3-137-018		15
3	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	62	1.2	-	104 g	UI	15	3-137-019		15
4	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	36	1.3	-	108 g	UI	15	3-137-020		15
6	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	21	1.6	-	110 g	UI	15	3-137-021		15
8	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	29	3.8	-	280 g	UG	10	3-137-022		10
10	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	13	2.6	-	295 g	UG	10	3-137-023		10
12	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	9	2.6	-	300 g	UG	10	3-137-024		10
16	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	3.3	2.8	-	310 g	UG	10	3-137-025		10
20	Medical Version (M80) with Ground Line Choke	QC 6.3 x 0.8 mm	N	I	0.08	1	3.5	-	322 g	UG	10	3-137-026		10
1	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	540	1.08	-	72 g	UL	15	3-134-821		15
1	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	475	1	-	72 g	PG	15	5500.2630.04		15
1	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	320	0.65	-	80 g	QC	15	5500.2640.04		15
1	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	320	0.65	-	66 g	PG	15	5500.2650.04		15
3	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	82	1.48	-	104 g	UM	15	3-134-822		15
3	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	83	1.5	-	104 g	PH	15	5500.2631.04		15
3	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	36	0.65	-	81 g	QC	15	5500.2641.04		15
3	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	36	0.65	-	70 g	PG	15	5500.2651.04		15
4	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	50	1.6	-	108 g	UM	15	3-134-823		15
4	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	53	1.7	-	108 g	PH	15	5500.2632.04		15
6	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	32	2.3	-	110 g	UM	15	3-134-824		15
6	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	32.5	2.4	-	109 g	PH	15	5500.2633.04		15
6	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	12	0.86	-	80 g	QC	15	5500.2642.04		15
6	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	12	0.86	-	100 g	PG	15	5500.2652.04		15
8	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	29	3.71	-	188 g	UN	10	3-134-825		10
8	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	29.2	3.8	-	190 g	PI	10	5500.2634.04		10
10	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	19	3.8	-	200 g	UN	10	3-134-826		10
10	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	22.8	4.6	-	200 g	PI	10	5500.2635.04		10
10	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	5	1	-	87 g	QC	15	5500.2643.04		15
10	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	5	1	-	90 g	QC	15	5500.2653.04		15
12	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	11	3.17	-	200 g	UN	10	3-134-827		10
12	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	13.2	3.8	-	201 g	PI	10	5500.2636.04		10
12	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	4	1.2	-	92 g	QC	15	5500.2644.04		15
12	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	4	1.2	-	90 g	QC	15	5500.2654.04		15
16	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	6	3.07	-	310 g	UO	10	3-134-828		10
16	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	7.2	3.7	-	308 g	PK	10	5500.2637.04		10
16	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	2	1	-	138 g	QD	15	5500.2645.04		15
16	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	2	1	-	136 g	QD	15	5500.2655.04		15
20	Medical (M5)	QC 6.3 x 0.8 mm	N	II	0.005	5	4	-	322 g	UO	10	3-134-829		10
20	Medical (M5)	QC 6.3 x 0.8 mm	N	I	0.005	6	4.8	-	322 g	PK	10	5500.2638.04		10
20	Medical (M5)	QC 6.3 x 0.8 mm	P	I	0.005	1.9	1.5	-	206 g	PI	10	5500.2646.04		10
20	Medical (M5)	QC 6.3 x 0.8 mm	Q	I	0.005	1.9	1.5	-	204 g	PI	10	5500.2656.04		10
30	Medical (M5)	Bolt and nut M4	N	I	0.005	2.9	5.2	-	355 g	PK	10	5500.2639.06		10
30	Medical (M5)	Bolt and nut M4	P	I	0.005	1	1.8	-	450 g	QE	5	5500.2647.06		5
30	Medical (M5)	Bolt and nut M4	Q	I	0.005	1	1.8	-	450 g	QE	5	5500.2657.06		5
60	Medical (M5)	Bolt and nut M6	P	I	0.005	1	7.2	-	1220 g	QF	1	5500.2648.06		1
60	Medical (M5)	Bolt and nut M6	Q	I	0.005	1	7.2	-	1220 g	QF	1	5500.2658.06		1
1	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	475	1	-	72 g	PG	15	5500.2630.07		15
1	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	320	0.65	-	80 g	QC	15	5500.2640.07		15
1	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	320	0.65	-	66 g	PG	15	5500.2650.07		15
3	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	83	1.5	-	104 g	PH	15	5500.2631.07		15
3	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	36	0.65	-	81 g	QC	15	5500.2641.07		15
3	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	36	0.65	-	70 g	PG	15	5500.2651.07		15
4	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	53	1.7	-	108 g	PH	15	5500.2632.07		15
6	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	32.5	2.4	-	109 g	PH	15	5500.2633.07		15
6	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	12	0.86	-	80 g	QC	15	5500.2642.07		15
6	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	12	0.86	-	100 g	PG	15	5500.2652.07		15
8	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	29.2	3.8	-	190 g	PI	10	5500.2634.07		10
10	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	22.8	4.6	-	200 g	PI	10	5500.2635.07		10
10	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	5	1	-	87 g	QC	15	5500.2643.07		15
10	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	5	1	-	90 g	QC	15	5500.2653.07		15
12	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	13.2	3.8	-	201 g	PI	10	5500.2636.07		10
12	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	4	1.2	-	92 g	QC	15	5500.2644.07		15
12	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	4	1.2	-	90 g	QC	15	5500.2654.07		15
16	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	7.2	3.7	-	308 g	PK	10	5500.2637.07		10
16	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	2	1	-	138 g	QD	15	5500.2645.07		15
16	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	2	1	-	136 g	QD	15	5500.2655.07		15
20	Medical (M80)	QC 6.3 x 0.8 mm	N	I	0.08	6.0	4.8	-	322 g	PK	10	5500.2638.07		10
20	Medical (M80)	QC 6.3 x 0.8 mm	P	I	0.08	1.9	1.5	-	206 g	PI	10	5500.2646.07		10
20	Medical (M80)	QC 6.3 x 0.8 mm	Q	I	0.08	1.9	1.5	-	204 g	PI	10	5500.2656.07		10
30	Medical (M80)	Bolt and nut M4	N	I	0.08	2.9	5.2	-	355 g	PK	10	5500.2639.09		10
30	Medical (M80)	Bolt and nut M4	P	I	0.08	1	1.8	-	450 g	QE	5	5500.2647.09		5
30	Medical (M80)	Bolt and nut M4	Q	I	0.08	1	1.8	-	450 g	QE	5	5500.2657.09		5
60	Medical (M80)	Bolt and nut M6	P	I	0.08	1	7.2	-	1220 g	QF	1	5500.2648.09		1
60	Medical (M80)	Bolt and nut M6	Q	I	0.08	1	7.2	-	1220 g	QF	1	5500.2658.09		1
1	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	280	0.56	-	72 g	UL	15	3-134-830		15
1	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	286	0.57	-	72 g	PG	15	3-143-606	A	15
3	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	50	0.9	-	104 g	UM	15	3-134-831		15
3	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	55	0.99	-	104 g	PH	15	3-143-607	A	15
4	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	30	0.96	-	108 g	UM	15	3-134-832		15
4	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	33	1.06	-	108 g	PH	15	3-143-608	A	15
6	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	16.4	1.18	-	110 g	UM	15	3-134-833		15
6	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	20.5	1.48	-	109 g	PH	15	3-143-609	A	15
8	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	18.5	2.37	-	188 g	UN	10	3-134-834		10
8	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	21.6	2.76	-	190 g	PI	10	3-143-610	A	10
10	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	12.5	2.5	-	200 g	UN	10	3-134-835		10
10	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	15.5	3.1	-	200 g	PI	10	3-143-611	A	10
12	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	7.9	2.28	-	200 g	UN	10	3-134-836		10
12	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	11	3.17	-	201 g	PI	10	3-143-612	A	10
16	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	4.2	2.15	-	310 g	UO	10	3-134-837		10
16	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	6.9	3.53	-	308 g	UB	10	3-143-613	A	10
20	Medical (M5) HP	QC 6.3 x 0.8 mm	N	II	0.005	3.4	2.72	-	322 g	UO	10	3-134-838		10
20	Medical (M5) HP	QC 6.3 x 0.8 mm	N	I	0.005	6.2	4.96	-	322 g	PK	10	3-143-614	A	10
30	Medical (M5) HP	Bolt and nut M4	N	I	0.005	2.9	5.2	-	355 g	PK	10	3-143-615	A	10
1	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	286	0.57	-	72 g	PG	15	3-143-616		15
3	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	55	0.99	-	104 g	PH	15	3-143-617		15
4	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	33	1.06	-	108 g	PH	15	3-143-618		15
6	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	20.5	1.48	-	109 g	PH	15	3-143-619		15
8	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	21.6	2.76	-	190 g	PI	10	3-143-620		10
10	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	15.5	3.1	-	200 g	PI	10	3-143-621		10
12	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	11	3.17	-	201 g	PI	10	3-143-622		10
16	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	6.9	3.53	-	308 g	UB	10	3-143-623		10
20	Medical (M80) HP	QC 6.3 x 0.8 mm	N	I	0.08	6.2	4.96	-	322 g	PK	10	3-143-624		10
30	Medical (M80) HP	Bolt and nut M4	N	I	0.08	2.9	5.2	-	355 g	PK	10	3-143-625		10
█ Most Popular. 4 designs N) excellent symmetrical noise attenuation␍␉ P) high symmetrical noise attenuation␍␉ Q) standard symmetrical noise attenuation␍␉ HP) high performance 60A medical filter M5 and M80, design P, are only suitable for medical equipment intended for permanently connection to the mains.

References / Document Downloads

Accessories FMAB NEO

Accessories (1)

[Swipe to the left and right for more options]

DIN Rail Kit

Mounting accessory for compact 1- and 3-phase filters

06.06.2024

Transformation_Date:	2024-06-06 07:43:24
Export_Path:	/Datasheets/Datasheet_EMV_PG84_Export/KRAEHECH/FMAB_NEO/2024_06_06/07_33_50_535_551513/
Export_Lang:	en
SGE_Name:	EMC Products
PG_Name:	1-Phase AC Filters / DC Filters
Typ_Name:	FMAB NEO
Typ_AliasNames:	:fmab neo:,:FMABNEO:,:fmabneo:,:FMAB_NEO:,:fmab_neo:
Typ_ID:	93373
Typ_Hierarchie:	800840020000006515
Typ_EPIM_Order:	20
Typ_Titel:	AC Filter, High Symmetrical Attenuation
PublPrgr_Name:	Single Phase Block Filter
PublPrgr_Shortcut:	PG84
Variant table:	Variantentabelle V58c (192079)
