Technical Data
Variant Details

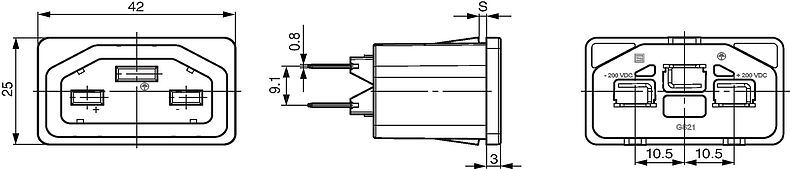

Description
- Panel mount: Snap-in version front side
- Socket-Outlet,, Protection class I
- Quick Connect / PCB Terminals
Unique Selling Proposition
- Standard form acc. to IEC TS 62735-1
- Hot plug rated for disconnecting under load up to 2.6 kW
- Ideal for compact PDU applications with an operating temperature up to 105 °C
- Compatible with cord retention system
Other versions on request
- Other panel thickness
- Other terminals
- Color coding in grey or white
Ratings IEC
6.5 - 8.8 A / 400 - 294 VDC
max. 2.6 kW power
Dielectric Strength
> 3 kVDC between + and -
> 3 kVDC between +/- and PE
(1 min)
Allowable Operation Temperature
-5 °C to 105 °C
IP-Protection
front side IP20 acc. to IEC 60529
Terminal
Quick Connect / PCB Terminals

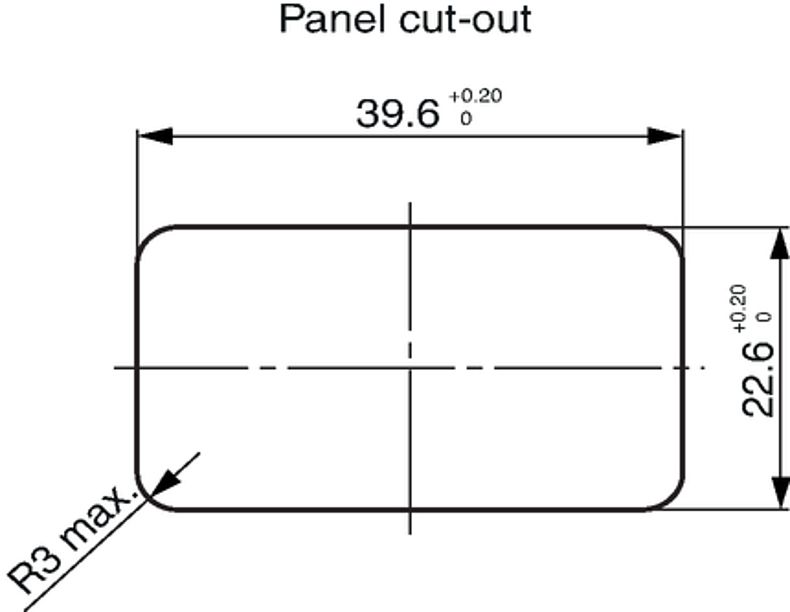

Panel Thickness S
Snap-in: 1.5/2.0 mm
Material: Housing
Thermoplastic, black, UL 94V-0
Appliance inlet/-outlet
Standard Sheet 1 acc. to IEC TS 62735-1
Protection Class I , ± 200 VDC
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: GS21
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | VDE Certificate Number: 40051170 | |
|
UL | UL File Number: |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | IEC TS 62735-1 | Appliance couplers for household and similar general purposes |
|
|
Designed according to | IEC TS 62735-1 | Appliance couplers for household and similar general purposes |
|
|
Designed according to | UL Subject 2695 | Outline for DC rated Attachment Plugs and Outlet Devices for ICT Equipment installed in restricted access locations |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | SCHURTER strives to offer our customers halogen free products. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Short Table of Variants GS21 Open complete table GS21
| Panel mounting | Panel Thickness s [mm] | Terminal |
Order Number
|
A=Most Popular | Free Sample | Distributor Stock Check | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

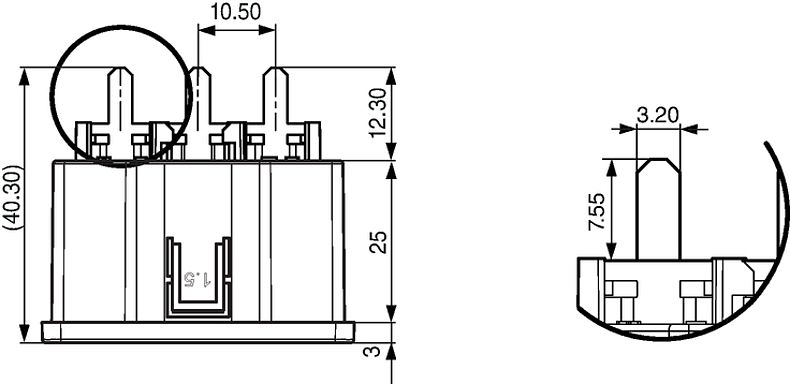

| Snap-in | 1.5 | PCB terminals | 3-104-045 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Snap-in | 2.0 | PCB terminals | 3-104-046 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

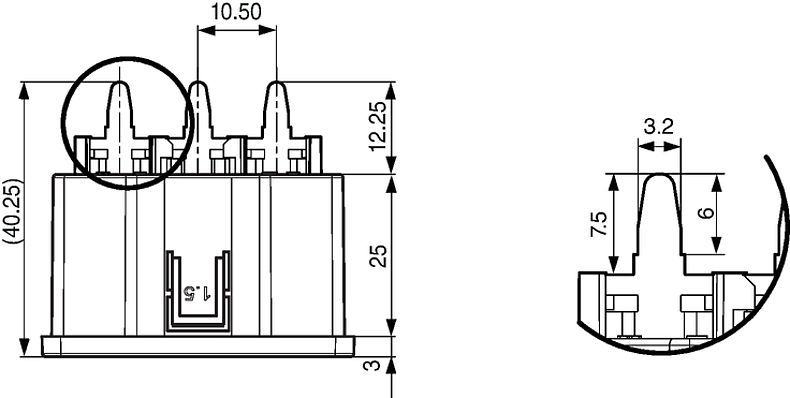

| Snap-in | 1.5 | PCB terminals with shoulder | 3-104-047 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Snap-in | 2.0 | PCB terminals with shoulder | 3-104-048 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

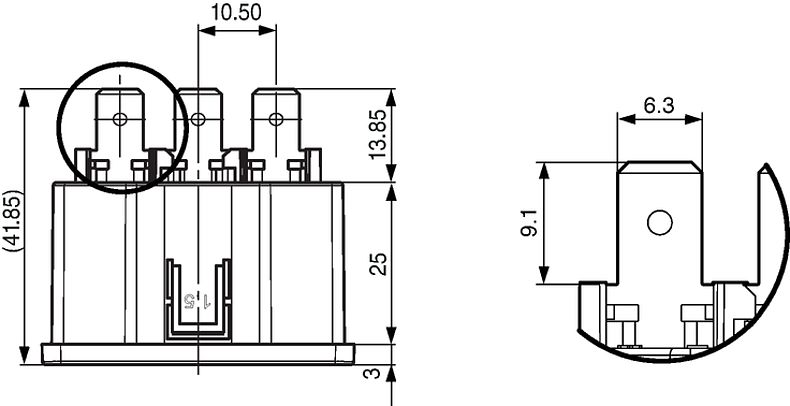

| Snap-in | 1.5 | Quick connect terminals 6.3 x 0.8 mm | 3-101-785 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Snap-in | 2.0 | Quick connect terminals 6.3 x 0.8 mm | 3-104-044 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
█ Most Popular. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging unit | 50 Pcs |
Mating Inlets/Plugs (1)
