INSERT 160A  Insert 160A, DIN00

Series: INSERT 160A

Insert 160A, DIN00

Free Sample Request

Description

  • Glass fiber Polyester
  • Difficult to burn
  • Impact resistant

Characteristics

  • With 3 x 1-pole fuse switch disconnector
  • Protection 2-piece, transparent and sealable
  • Partitioning between phase/phase and phase/N
  • N-connector for TN-C to TN-S
  • N-connector separating Piece self-opening when loosening the screw
  • Neutral conductor screw: Tightening torque max. 2.5 Nm

Rated Current Ie

160 A  @  500 VAC

125 A@  690 VAC

Rated voltage Ue

690 VAC

Rated isolation voltage Ui

1000 VAC

Rated Power Operating Frequency fe

50 Hz

NH-Fuse-Link with Prisms

6  -  95 mm²

Fuse-Link

DIN 00

Rated Current Ie

160 A  @  500 VAC

125 A@  690 VAC

Rated voltage Ue

690 VAC

220 VDC

Rated isolation voltage Ui

1000 VAC

Rated Power Operating Frequency fe

50 Hz

Rated Impulse Withstand Voltage Uimp

8 kV

Conditioned Rated Short Cicuit Current

80 kA␠ @  500 VAC

50 kA␠ @  690 VAC

␠

Rated Impulse Withstand Voltage Uimp

8 kV

Conditioned Rated Short Cicuit Current

50 kA  @  690 VAC

80 kA@  500 VAC

Rated short-time withstand current with fuse links

20 kA␠ @  500 VAC

Allowed Ambient Temperature

-25 °C to +40 °C acc. to IEC 61439

Protection by closed housing

IP20

Neutral Disconnector with Straps

6   - 95 mm²

Earth Connection Bride

6  -  95 mm²

Category of use AC

AC-23B  @  400 VAC

AC-22B  @  500 VAC

AC-21B  @  690 VAC

Category of use DC

DC-22B  @  220 VDC

Rated power dissipation with-out NH fuse-links at Ith

2.3 W

Protection class

IP20

Mechanical lifetime

1400  Insertions​

Electrical lifetime

200  Insertions​

Ambient Temperature Tu**)

-40 °C to +55

Prisma strap: radius small 6 - 25 mm² / radius big 35 - 95 mm²

**) A reduction of the rated current is required above 30°C

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in   Details about Approvals


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900150050000005541
LOADING...

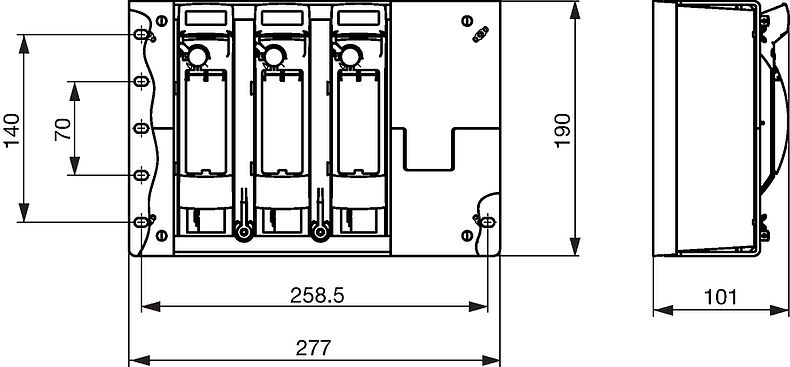

Dimensions [mm]
