KFS  IEC Appliance Inlet C14 with Filter

Series: KFS

IEC Appliance Inlet C14 with Filter

Free Sample Request

11 Variants


Connectors (Inlets/Outlets)

C14
Connector Logo
70° C

Description

  • Panel mount: Screw-on mounting front side
  • 2 Functions: Appliance Inlet Protection class I, Line-filter in standard version
  • Quick connect terminals 6.3 x 0.8 mm

Characteristics

  • Compact design with optimal shielding
  • All single elements are already wired
  • Universal line filter for standard applications
  • For applications according IEC/UL 62368-1 we recommend variants with bleed resistor

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

Ratings IEC

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

1 - 10 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

standard < 0.5 mA (250 V / 60 Hz)

Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Impulse Withstand Voltage

> 2.5 kV between L-N (CX2)
> 5 kV between L/N-PE

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Quick connect terminals 6.3 x 0.8 mm

Panel Thickness S

Screw: max 8 mm
Mounting screw torque max 0.5 Nm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Line Filter

Standard version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details

MTBF

> 3'100'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: KFS

Approval Logo Certificates Certification Body Description
Approval marks ENEC_10 VDE Certificate Number: 40004665 (FGS)
Approval marks cURus UL UR File Number: E72928 (FGS)


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Approval marks IEC_Certification_Body Designed according to IEC 60939 Passive filters for suppressing electromagnetic interference
Approval marks IEC_Certification_Body Designed according to IEC 61058-1 Switches for appliances. Part 1. General requirements
Approval marks UL Designed according to UL 498 Standard for Attachment Plugs and Receptacles
Approval marks UL Designed according to UL 1283 Passive filters for suppressing electromagnetic interference
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 42 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Components V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

020060160000001506
LOADING...

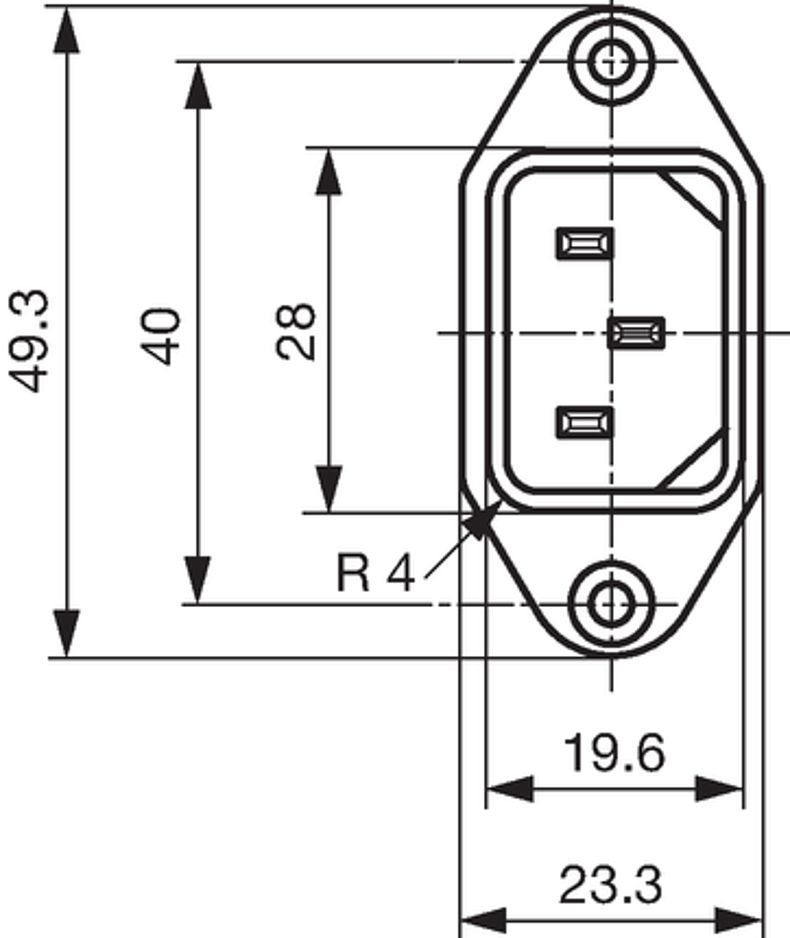

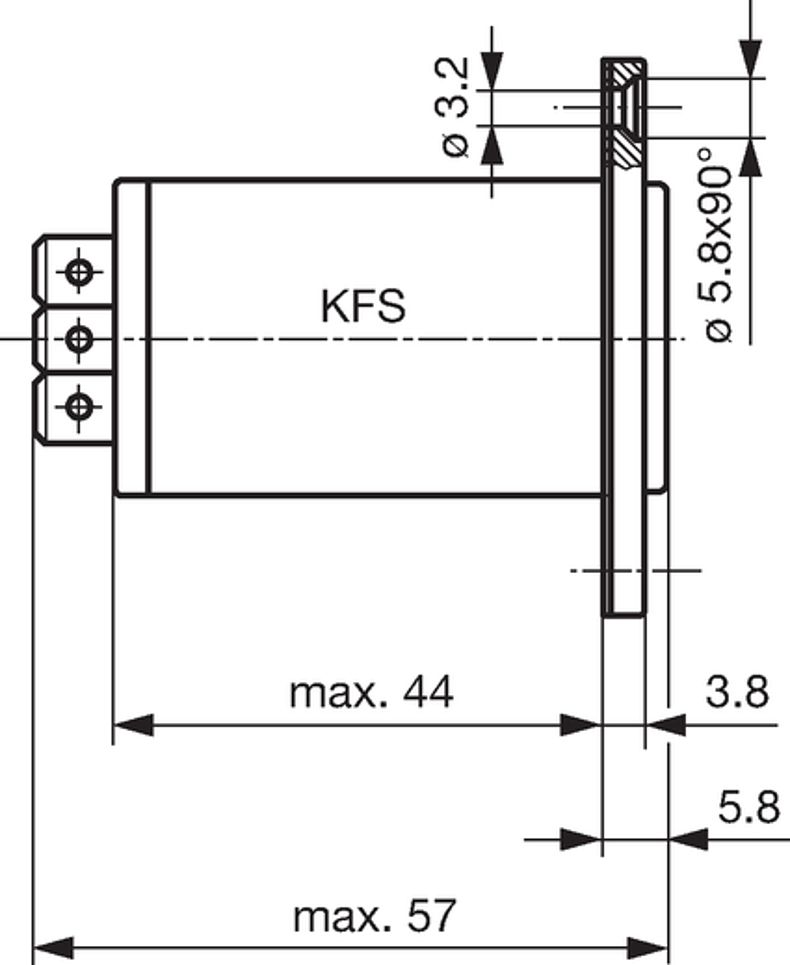

Dimension [mm]

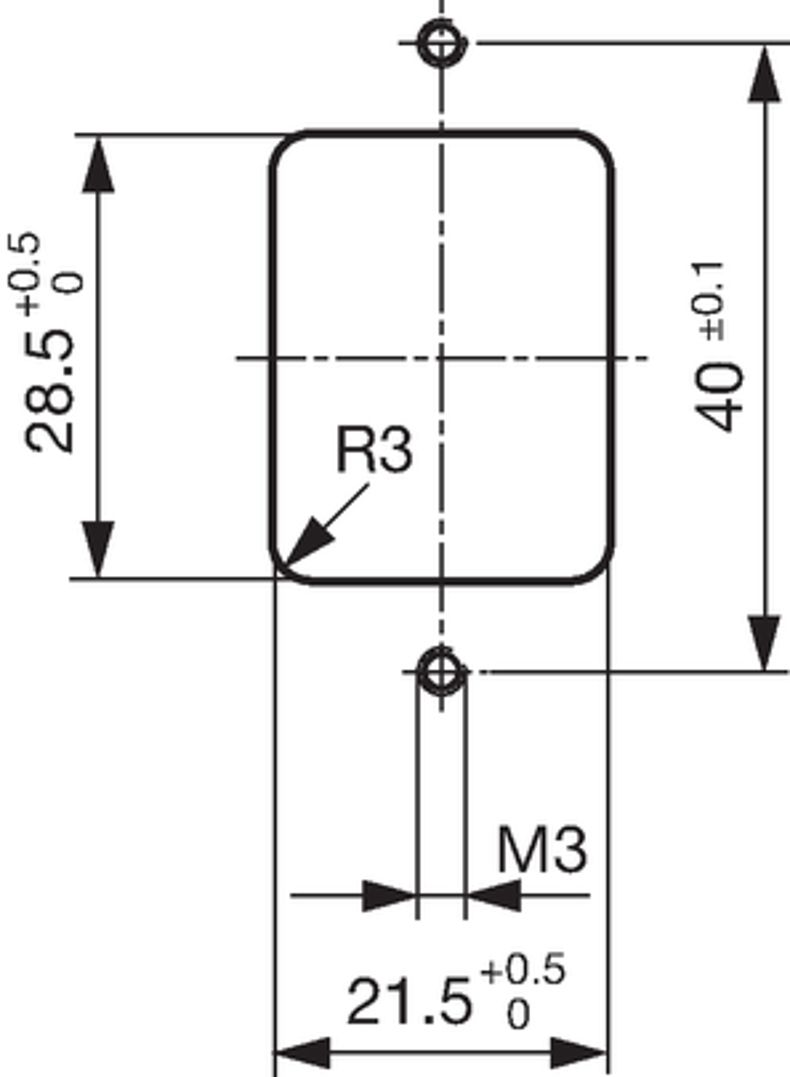

Panel cut-out


Diagrams

Standard version

1) Line
2) Load

Technical Data of Filter-Components

Rated Current [A] Filter-Type Inductances L [mH] Capacitance CX [nF] Capacitance CY [nF]
1 Medical Version (M80) 2 x 10 47 0.47
1 Medical Version (M5) 2 x 10 47 -
2 Medical Version (M5) 2 x 4 47 -
4 Medical Version (M5) 2 x 1.5 47 -
6 Medical Version (M5) 2 x 0.8 47 -
10 Medical Version (M5) 2 x 0.3 47 -
1 Standard version 2 x 10 47 2.2
2 Standard version 2 x 4 47 2.2
4 Standard version 2 x 1.5 47 2.2
6 Standard version 2 x 0.8 47 2.2
10 Standard version 2 x 0.3 47 2.2

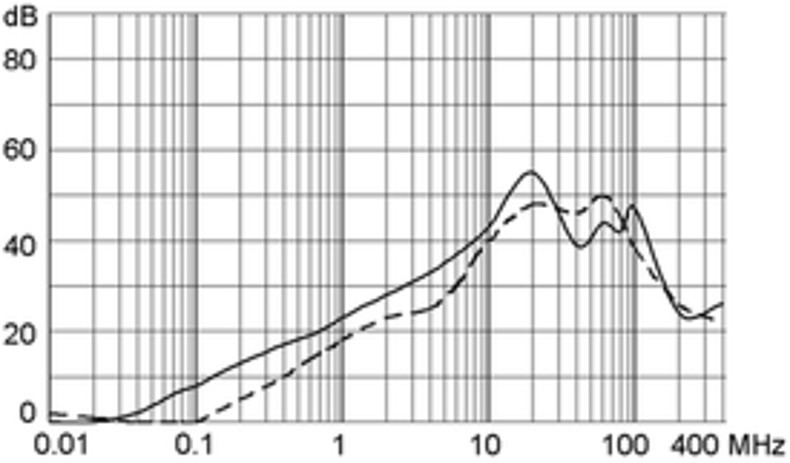

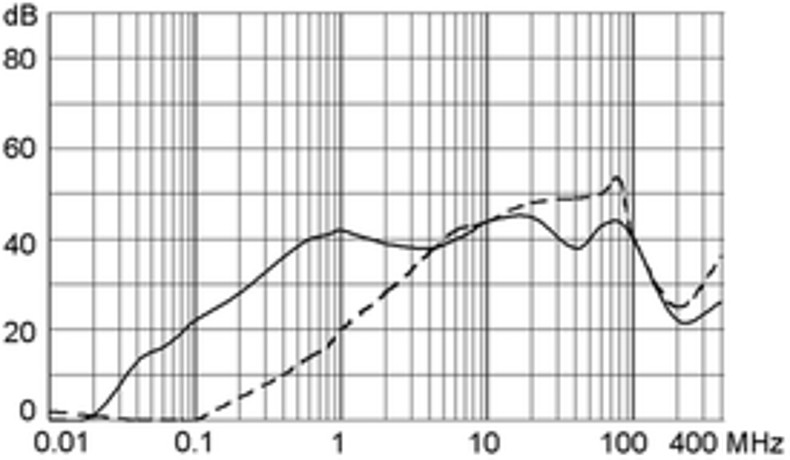

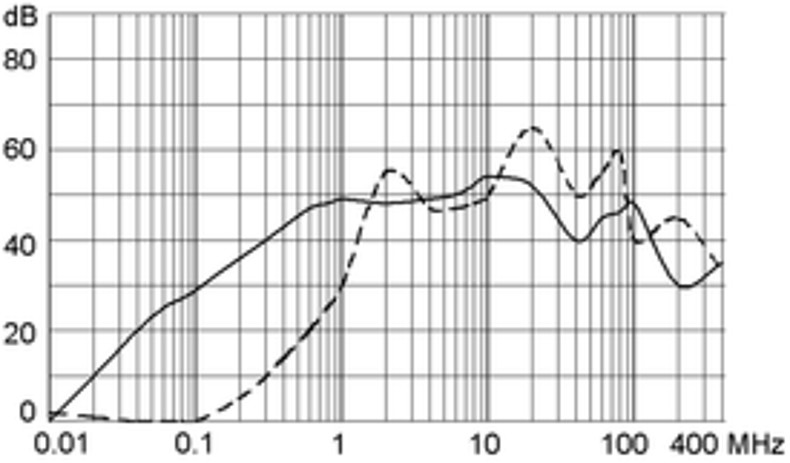

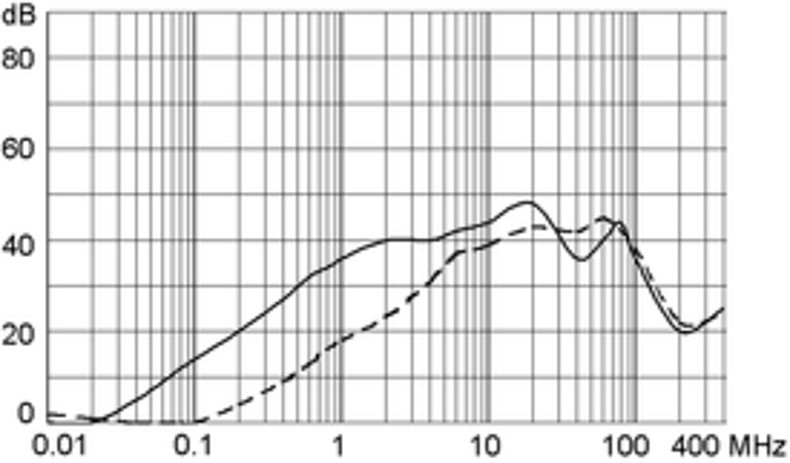

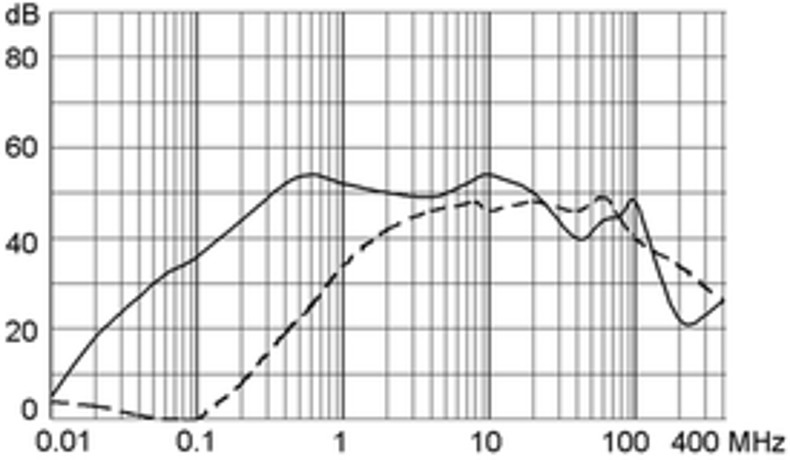

Attenuation Loss

1 A

2 A

4 A

6 A

10 A


Short Table of Variants KFS Open complete table KFS

Type Rated Current [A] Filter-Type Order Number Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
  [A]


KFS 1 Standard version 4300.5051 ...
KFS 2 Standard version 4300.5052 ...
KFS 4 Standard version 4300.5053 ...
KFS 6 Standard version 4300.5054 ...
KFS 10 Standard version 4300.5055 ...
KFS 1 Medical Version (M5) 4300.5021 ...
KFS 2 Medical Version (M5) 4300.5022 ...
KFS 4 Medical Version (M5) 4300.5023 ...
KFS 6 Medical Version (M5) 4300.5024 ...
KFS 10 Medical Version (M5) 4300.5025 ...
KFS 1 Medical Version (M80) 4300.5031 ...

Packaging unit 10 Pcs
