Membrane Switch
red
lettered
Membrane Switch
black
lettered
4 Variants
Description

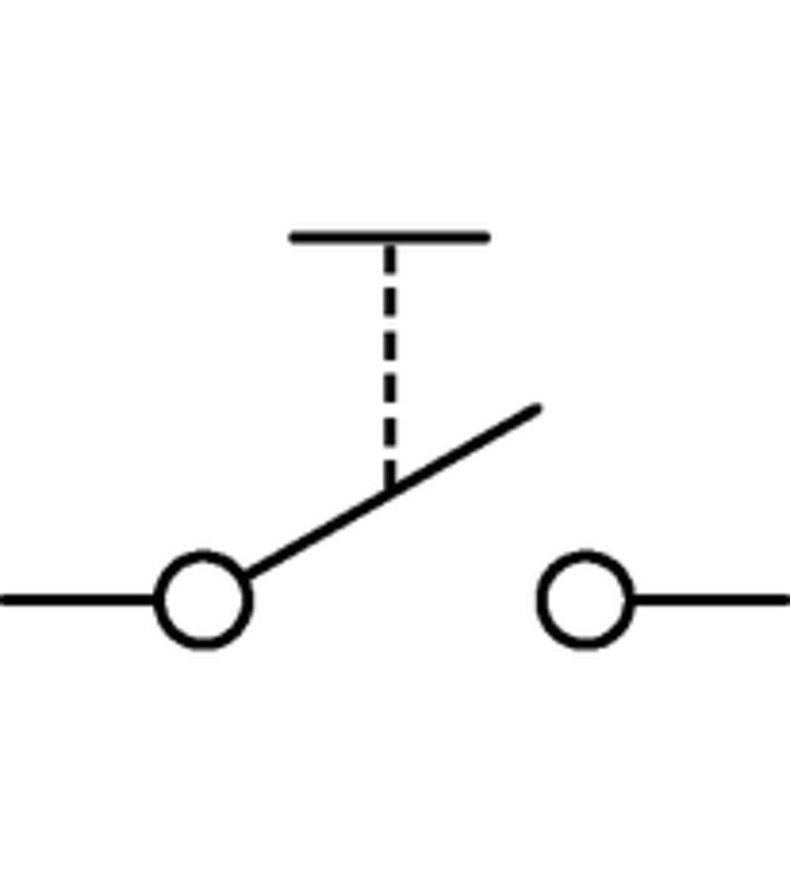

- Momentary action switch available in version square or round in different colours
- High-quality gold and silver contacts
- Ideal switch for applications with multiple key points
- Solder terminals
Unique Selling Proposition
- Unique mechanical switches with tactile feedback
- Extremely low design
- Various lettering options
- Long life time
Electrical Data
Contact Material Silver
Switching Voltage
min. 5 VDC , max. 48 VDC
Switching current
max. 125 mA
Rated Switching Capacity
0.72 W
Lifetime
> 1 million at Rated Switching Capacity
Contact Resistance
< 50 mΩ
< 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
typ. 0.1 ms
Contact Material Gold
Switching Voltage
min. 50 mVDC, max. 24 VDC
Switching current
max. 80 mA
Rated Switching Capacity
0.36 W
Lifetime
> 1 million at Rated Switching Capacity
Contact Resistance
< 50 mΩ
< 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
typ. 0.1 ms

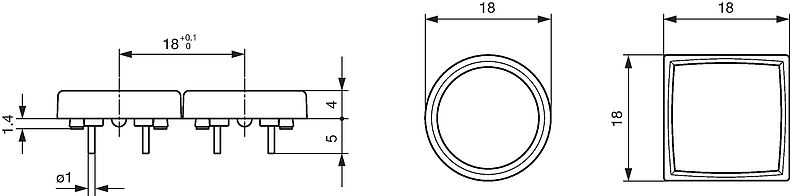

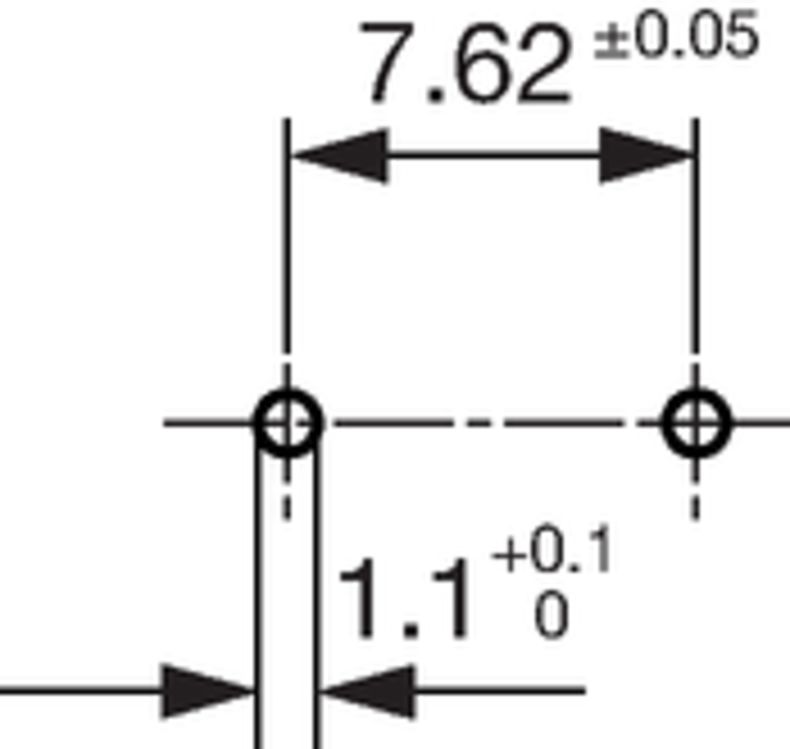

Mechanical Data
Actuating Force
3 ± 1 N
Actuating Travel
0.5 ± 0.1 mm
End Stop Strength
> 50 N
Lifetime
> 1 million actuations
Climatical Data
Operating Temperature
-25 °C to 60 °C
Storage Temperature
-25 °C to 60 °C
IP-Protection
IP65
Other Data
Contact Material
Ag / Au
Soldering Data
Solderability
235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)
Resistance to Soldering Heat
260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)
Material
Housing
Thermoplastic (PES)
Socket
Thermoplastic (PES)
Bezel
Thermoplastic (PBT)
Contact
CuZn37 3 μm Ni 2 μm Au; CuZn37 2.5 μm Ag
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
| - Single characters, Univers 65 - Legends max. 6 characters in line, Univers 65 - Insert label and front foil anthracite, RAO 7016 - Characters and symbols light grey, RAL 7035 |
Short Table of Variants MCS 18 Print Open complete table MCS 18 Print
| Kontakte | Form | Color Bezel |
Bestellnummer
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||
|---|---|---|---|---|---|---|---|---|
| Ag | round | black | 1241.1110.7091 | - | ... | |||
| Ag | round | black | 1241.1110.7093 | - | ... | |||
| Ag | round | black | 1241.1110.7097 | - | ... | |||
| Au | round | black | 1241.1111.7093 | - | ... | |||
| For Lettering versions see tables "Lettering" and "Order Index Lettering" to determine the symbol |
||||||||
| Packaging unit | 100 pcs |
