MSF 125 Subminiature Fuse, 6.4 mm, Quick-Acting F, 125 VAC, 125 VDC

Series: MSF 125

Subminiature Fuse, 6.4 mm, Quick-Acting F, 125 VAC, 125 VDC

60 Variants

Approvals and Compliances

CAD

Description

Directly solderable on printed circuit boards

Detailed request for product

Details MSF 125

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Rated Voltage

125 VAC, 125 VDC

Rated current

0.1 - 5 A

Breaking Capacity

100 A

Characteristic

Quick-Acting F

Mounting

PCB,THT

Admissible Ambient Temp.

-25 °C to 85 °C

Climatic Category

25/085/21 acc. to IEC 60068-1

Material: Housing

Thermoplastic, UL 94V-0

Material: Terminals

Tin-Plated Copper

Unit Weight

0.34 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen , Type, Rated current, Rated Voltage, Characteristic, Certification marks

Soldering Methods

Wave
Soldering Profile

Solderability

235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb

Case Resistance

acc. to EIA/IS-722, Test 4.7
>100 MΩ (between leeds and body)

Flammability

UL 94V-0
(acc. to EIA/IS-722, Test 4.12)

Operational Life

1000h @ 0.60 x In @ 70°C
(acc. to EIA/IS-722, Test 4.4.1)

Vibration, High Frequency

MIL-STD-202, Method 204 Condition D

Mechanical Shock

(acc. to EIA/IS-722, Test 4.9)

Resistance to Solvents

MIL-STD-202, Method 215

Terminal Strength

Tensile load min. 9 N
(acc. to EIA/IS-722, Test 4.5.1)

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: MSF 125

Approval Logo	Certificates	Certification Body	Description
	UL Approvals	UL	UR File Number: E41599

Product standards

Product standards that are referenced

Organization	Design	Standard	Description
	Designed according to	UL 248-14	Low voltage fuses - Part 14: Supplemental fuses
	Designed according to	CSA22.2 No. 248.14	Low-Voltage Fuses - Part 14: Supplemental Fuses

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

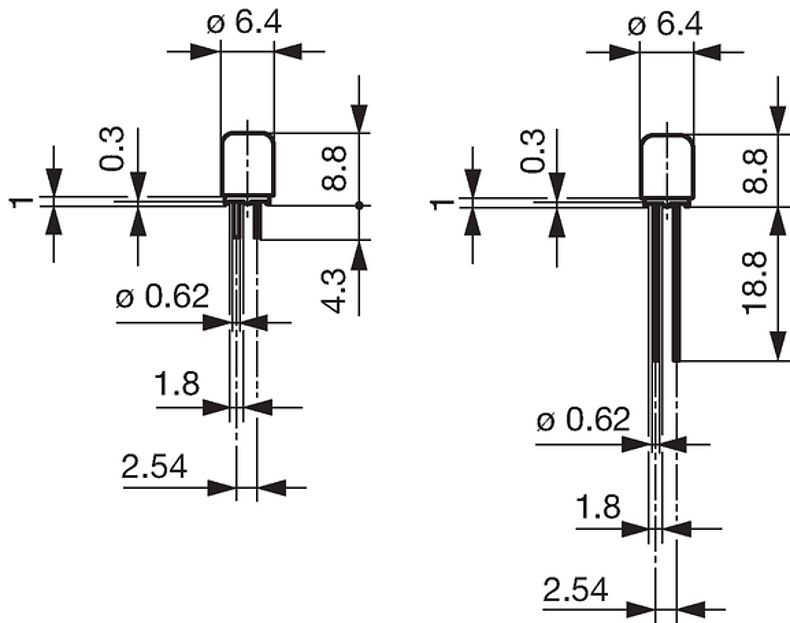

Dimension [mm]

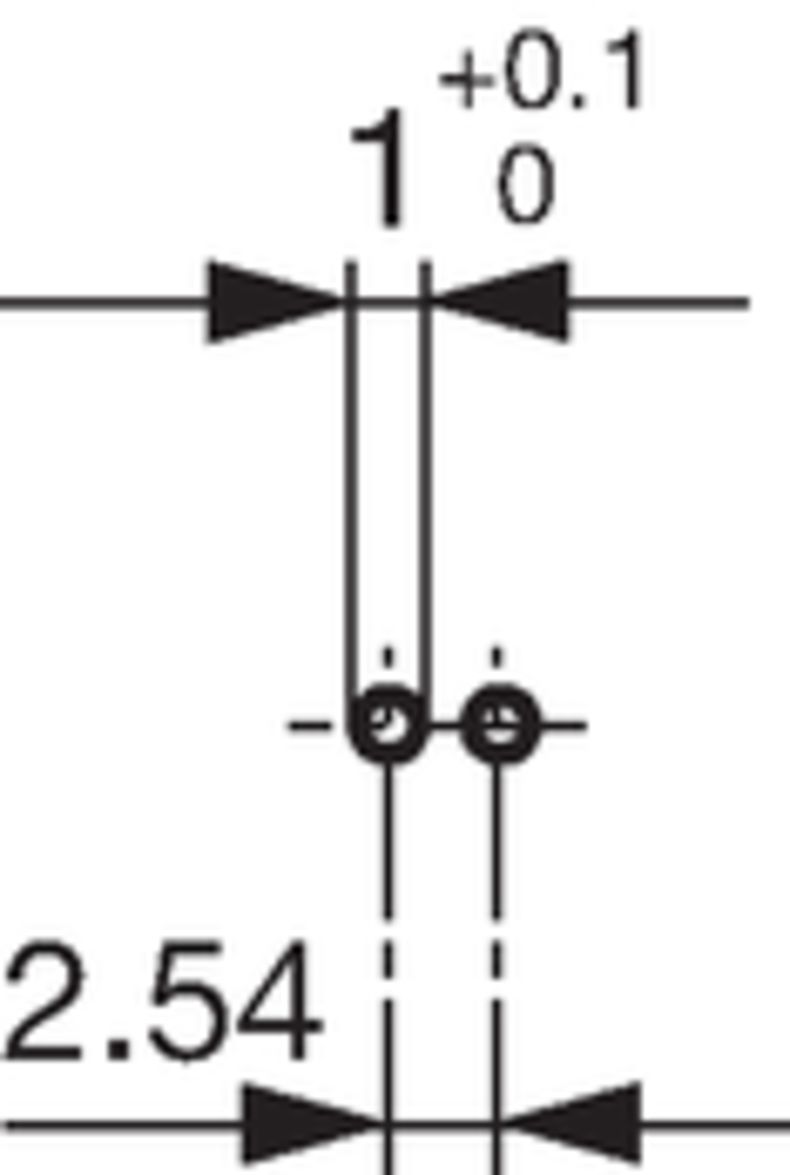

	Drilling diagram

Pre-Arcing Time

Rated Current In	1.5 x In max.	2.0 x In max.	2.75 x In max.	4.0 x In max.	10.0 x In max.
0.1 A - 5 A	10 min	5 s	300 ms	30 ms	4 ms

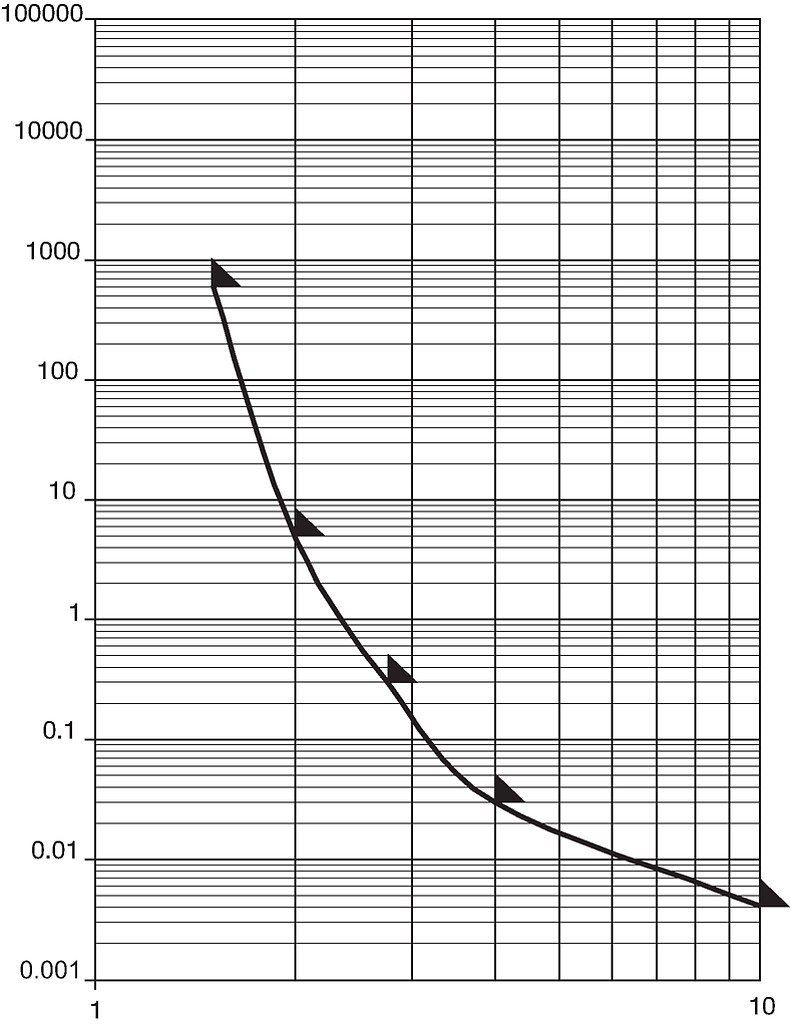

Time-Current-Curves


Time in Seconds
	Multiple of Rated Current In

Short Table of Variants MSF 125 Open complete table MSF 125

Rated Current [A]	Rated Voltage [VAC]	Rated Voltage [VDC]	Order Number	...


0.1	125	125	0034.4209	...
0.125	125	125	0034.4210	...
0.16	125	125	0034.4211	...
0.2	125	125	0034.4212	...
0.25	125	125	0034.4213	...
0.315	125	125	0034.4214	...
0.4	125	125	0034.4215	...
0.5	125	125	0034.4216	...
0.63	125	125	0034.4217	...
0.71	125	125	0034.4218	...
0.75	125	125	0034.4219	...
0.8	125	125	0034.4220	...
1	125	125	0034.4221	...
1.25	125	125	0034.4222	...
1.6	125	125	0034.4223	...
2	125	125	0034.4224	...
2.5	125	125	0034.4225	...
3.15	125	125	0034.4226	...
4	125	125	0034.4227	...
5	125	125	0034.4228	...
0.1	125	125	0034.4239	...
0.125	125	125	0034.4240	...
0.16	125	125	0034.4241	...
0.2	125	125	0034.4242	...
0.25	125	125	0034.4243	...
0.315	125	125	0034.4244	...
0.4	125	125	0034.4245	...
0.5	125	125	0034.4246	...
0.63	125	125	0034.4247	...
0.71	125	125	0034.4248	...
0.75	125	125	0034.4249	...
0.8	125	125	0034.4250	...
1	125	125	0034.4251	...
1.25	125	125	0034.4252	...
1.6	125	125	0034.4253	...
2	125	125	0034.4254	...
2.5	125	125	0034.4255	...
3.15	125	125	0034.4256	...
4	125	125	0034.4257	...
5	125	125	0034.4258	...
0.1	125	125	0034.4539	...
0.125	125	125	0034.4540	...
0.16	125	125	0034.4541	...
0.2	125	125	0034.4542	...
0.25	125	125	0034.4543	...
0.315	125	125	0034.4544	...
0.4	125	125	0034.4545	...
0.5	125	125	0034.4546	...
0.63	125	125	0034.4547	...
0.71	125	125	0034.4548	...
0.75	125	125	0034.4549	...
0.8	125	125	0034.4550	...
1	125	125	0034.4551	...
1.25	125	125	0034.4552	...
1.6	125	125	0034.4553	...
2	125	125	0034.4554	...
2.5	125	125	0034.4555	...
3.15	125	125	0034.4556	...
4	125	125	0034.4557	...
5	125	125	0034.4558	...
1) 100 A @ 125 VAC, cos φ = 0.99 - 1; 100 A @ 125 VDC tau < 1 ms

Packaging Unit
acc. IEC 60286-2

S = 4.3 mm	100 pcs in ESD-plastic bag
L = 18.8 mm	100 St. (Bulk)
T = 18.8 mm	1000 pcs. in tape [P = P0: 12.7; P1: 5.08; H1: 25.8] on reel [A: 360; W3: 40; W4: 52; C: 30.5]

Table of Variants MSF 125

Rated Current [A]	Rated Voltage [VAC]	Rated Voltage [VDC]	Breaking Capacity	Voltage Drop 1.0 In max. [mV]	Voltage Drop 1.0 In typ. [mV]	Power Dissipation 1.0 In max. [mW]	Melting I²t 10.0 In typ. [A²s]		S	L	T	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form


0.1	125	125	1)	1000	690	100	0.0007	•	•			0034.4209	100
0.125	125	125	1)	1000	960	100	0.0015	•	•			0034.4210	100
0.16	125	125	1)	1000	850	100	0.0036	•	•			0034.4211	100
0.2	125	125	1)	700	680	100	0.0033	•	•			0034.4212	100
0.25	125	125	1)	700	620	100	0.0055	•	•			0034.4213	100
0.315	125	125	1)	700	680	200	0.025	•	•			0034.4214	100
0.4	125	125	1)	400	180	100	0.013	•	•			0034.4215	100
0.5	125	125	1)	400	180	100	0.02	•	•			0034.4216	100
0.63	125	125	1)	400	180	100	0.045	•	•			0034.4217	100
0.71	125	125	1)	400	140	100	0.045	•	•			0034.4218	100
0.75	125	125	1)	400	170	100	0.02	•	•			0034.4219	100
0.8	125	125	1)	400	150	100	0.04	•	•			0034.4220	100
1	125	125	1)	400	150	100	0.07	•	•			0034.4221	100
1.25	125	125	1)	190	150	200	0.12	•	•			0034.4222	100
1.6	125	125	1)	190	150	200	0.29	•	•			0034.4223	100
2	125	125	1)	190	130	200	0.43	•	•			0034.4224	100
2.5	125	125	1)	190	120	300	0.6	•	•			0034.4225	100
3.15	125	125	1)	190	120	400	1.1	•	•			0034.4226	100
4	125	125	1)	190	120	500	1.9	•	•			0034.4227	100
5	125	125	1)	190	120	600	3	•	•			0034.4228	100
0.1	125	125	1)	1000	690	100	0.0007	•		•		0034.4239	100
0.125	125	125	1)	1000	960	100	0.0015	•		•		0034.4240	100
0.16	125	125	1)	1000	850	100	0.0036	•		•		0034.4241	100
0.2	125	125	1)	700	680	100	0.0033	•		•		0034.4242	100
0.25	125	125	1)	700	620	100	0.0055	•		•		0034.4243	100
0.315	125	125	1)	700	680	200	0.025	•		•		0034.4244	100
0.4	125	125	1)	400	180	100	0.013	•		•		0034.4245	100
0.5	125	125	1)	400	180	100	0.02	•		•		0034.4246	100
0.63	125	125	1)	400	180	100	0.045	•		•		0034.4247	100
0.71	125	125	1)	400	140	100	0.045	•		•		0034.4248	100
0.75	125	125	1)	400	170	100	0.02	•		•		0034.4249	100
0.8	125	125	1)	400	150	100	0.04	•		•		0034.4250	100
1	125	125	1)	400	150	100	0.07	•		•		0034.4251	100
1.25	125	125	1)	190	150	200	0.12	•		•		0034.4252	100
1.6	125	125	1)	190	150	200	0.29	•		•		0034.4253	100
2	125	125	1)	190	130	200	0.43	•		•		0034.4254	100
2.5	125	125	1)	190	120	300	0.6	•		•		0034.4255	100
3.15	125	125	1)	190	120	400	1.1	•		•		0034.4256	100
4	125	125	1)	190	120	500	1.9	•		•		0034.4257	100
5	125	125	1)	190	120	600	3	•		•		0034.4258	100
0.1	125	125	1)	1000	690	100	0.0007	•			•	0034.4539	1000
0.125	125	125	1)	1000	960	100	0.0015	•			•	0034.4540	1000
0.16	125	125	1)	1000	850	100	0.0036	•			•	0034.4541	1000
0.2	125	125	1)	700	680	100	0.0033	•			•	0034.4542	1000
0.25	125	125	1)	700	620	100	0.0055	•			•	0034.4543	1000
0.315	125	125	1)	700	680	200	0.025	•			•	0034.4544	1000
0.4	125	125	1)	400	180	100	0.013	•			•	0034.4545	1000
0.5	125	125	1)	400	180	100	0.02	•			•	0034.4546	1000
0.63	125	125	1)	400	180	100	0.045	•			•	0034.4547	1000
0.71	125	125	1)	400	140	100	0.045	•			•	0034.4548	1000
0.75	125	125	1)	400	170	100	0.02	•			•	0034.4549	1000
0.8	125	125	1)	400	150	100	0.04	•			•	0034.4550	1000
1	125	125	1)	400	150	100	0.07	•			•	0034.4551	1000
1.25	125	125	1)	190	150	200	0.12	•			•	0034.4552	1000
1.6	125	125	1)	190	150	200	0.29	•			•	0034.4553	1000
2	125	125	1)	190	130	200	0.43	•			•	0034.4554	1000
2.5	125	125	1)	190	120	300	0.6	•			•	0034.4555	1000
3.15	125	125	1)	190	120	400	1.1	•			•	0034.4556	1000
4	125	125	1)	190	120	500	1.9	•			•	0034.4557	1000
5	125	125	1)	190	120	600	3	•			•	0034.4558	1000
1) 100 A @ 125 VAC, cos φ = 0.99 - 1; 100 A @ 125 VDC tau < 1 ms

Packaging Unit
acc. IEC 60286-2

S = 4.3 mm	100 pcs in ESD-plastic bag
L = 18.8 mm	100 St. (Bulk)
T = 18.8 mm	1000 pcs. in tape [P = P0: 12.7; P1: 5.08; H1: 25.8] on reel [A: 360; W3: 40; W4: 52; C: 30.5]

References / Document Downloads

References MSF 125

Corresponding Fuseholder (3)

[Swipe to the left and right for more options]

FME

FMR

FMS (125V)
