Illuminated
green
Non-illuminated
Description
- Touchless Momentary (MO) push button
- Multicolor illumination
- Standard sensitivity for glass thickness of up to 2mm
- Quick and easy installation behind all materials (glass, plastic, wood, metal,...). There must be a small viewing window for the sensor.
Unique Selling Proposition
- Allows free design
- Invisible installation
- Small mounting depth
Characteristics
- Insensitive to water and rain
- Area illumination
- Wearless, no moving parts
- Wiping tolerant
- 3M Adhesive transfer tape 468MP
Other versions on request

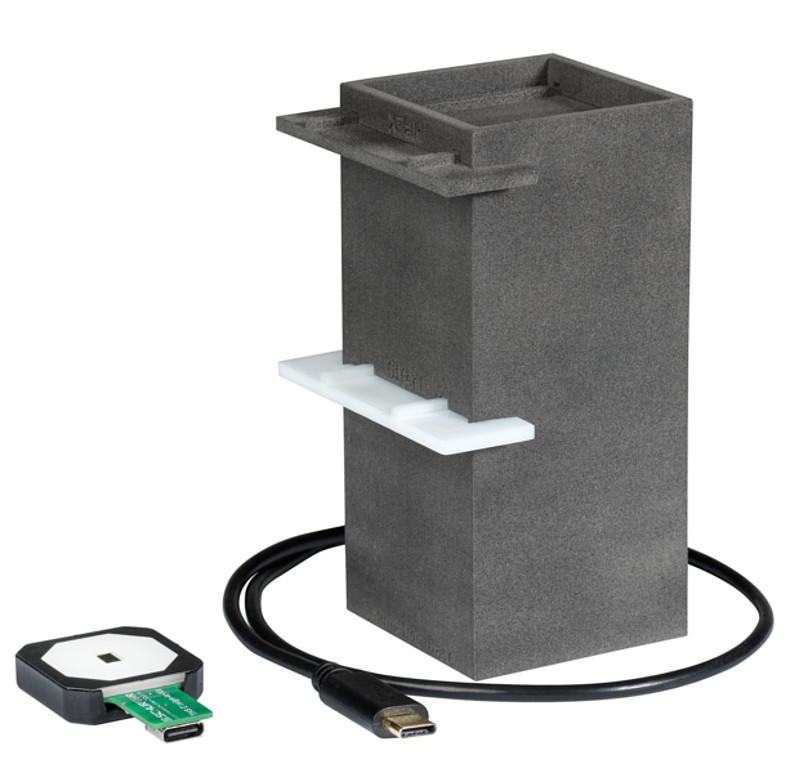

- Design-In-Kit
- Switching type latching
Electrical Data
Switching Voltage
max. 42 VAC/ 60 VDC
Switching current
max. 100 mA
Switch Resistance OFF
> 10 MΩ
Switch Resistance ON
< 16 Ω
Supply Voltage
5 - 28 VDC
Current Consumption all LEDs
adjustable by the customer
Reverse Polarity Protection
Yes
Short Circuit Protection
Yes
Output
OptoMOS Relais
Lifetime
> 100 million actuations
Mechanical Data
Actuation Type
optical
Actuating Force
none
Climatical Data
Operating Temperature
-40 to 85 °C
Storage Temperature
-40 to 85 °C
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...

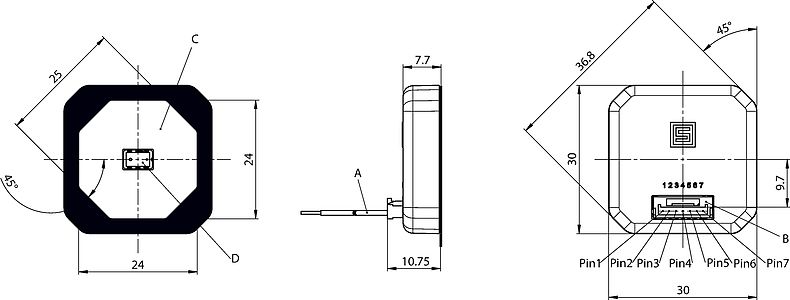

Diagrams

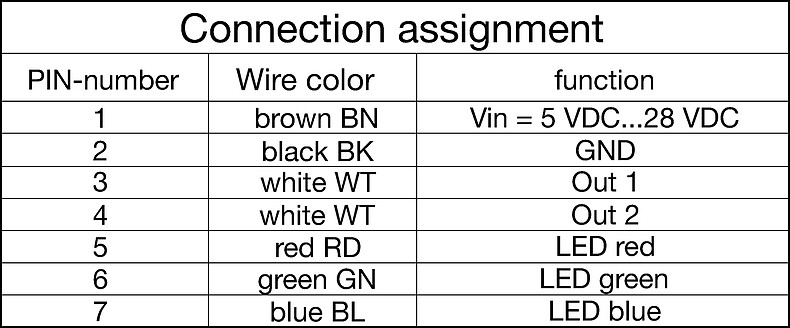

| Depending on the selected supply voltage (5 - 28 VDC) the series resistors for the LEDs have to be selected (max. 20 mA rated current) |
Area illumination
| Operating Data | Forward Voltage | Nominal LED current |
| LED red | 2.1 V | 20 mA |
| LED green | 3.0 V | 20 mA |
| LED blue | 3.1 V | 20 mA |
| PWM frequency LED: max. 100Hz | ||
| Power consumption without lighting: < 1mA | (Output contact open) | |
| Power consumption without lighting: < 6mA | (Output contact closed) |
