Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Description
- Touchless momentary push button (MO¹) or as latching switch (LA)
- Protection against unintended switching
- Precise operating
- Potential free output contacts
- Laser lettering possible
- Vandal resistant
Unique Selling Proposition
- Variable supply voltage, RGB with integrated series resistor
- High reliability
- Wiping and cleaning the surface does not trigger a switching operation
Characteristics
- Housing made from stainless steel

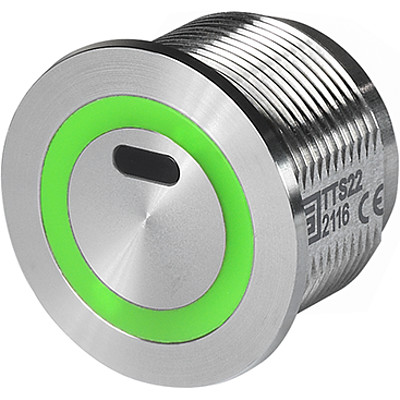

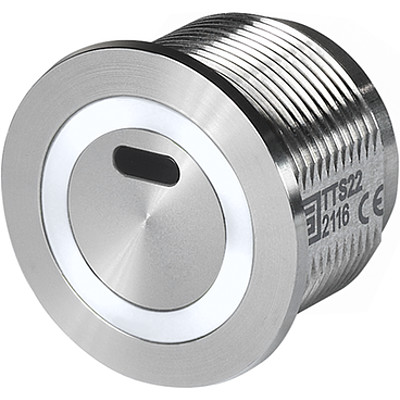

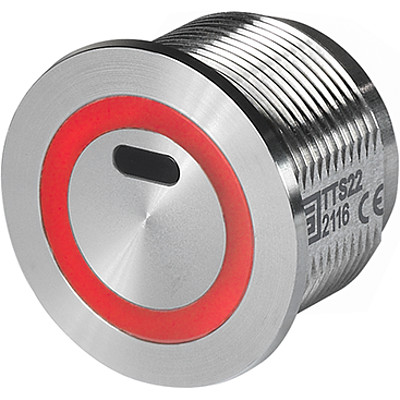

- With ring illumination
- Wearless, no moving parts
- Attractive design
- Insensitive to water and rain
Electrical Data
Switching Function
Momentary (MO¹) or latching (LA)
Switching Voltage
max. 42 VAC␣/ 60 VDC
Switching current
max. 100 mA
Electrical Rating
1 W
Switch Resistance OFF
> 10 MΩ
Switch Resistance ON
< 16 Ω
Supply Voltage LED
5 - 28 VDC
Current Consumption all LEDs off
6.0 mA (typ) / 13.0 mA (max)
Peak: 29 mA (switch is closed)
8.0 mA (typ) / 15.0 mA (max)
Peak: 34 mA (switch is open)
Current Consumption␍Ilumination red, green or blue
10.0 mA (typ) / 17.0 mA (max)
Peak: 34 mA (switch is closed)
11.0 mA (typ) / 19.0 mA (max)
Peak: 38 mA (switch is open)
Current Consumption␍Illumination yellow, cyan or magenta
14.0 mA (typ) / 21.0 mA (max)
Peak: 38 mA (switch is closed)
16.0 mA (typ) / 22.0 mA (max)
Peak: 43 mA (switch is open)
Current Consumption␍Illumination white
19.0 mA (typ) / 25.0 mA (max)
Peak: 43 mA (switch is closed)
Reverse Polarity Protection
yes
Output
OptoMOS Relay
Lifetime
>20 million actuations
connection type²
TTS Bi-Color 4 Litzen, 26AWG, 0.128 mm²
TTS RGB 6 Litzen, 26AWG, 0.128 mm²
Mechanical Data
Actuation Type
optical
Actuating Force
none
Shock Protection
IK06
Mounting Depth
16.5 mm
Tightening Torque Plastic Nut
2.5 Nm
Climatical Data
Operating Temperature
-30 to 85 °C
Storage Temperature
-40 to 85 °C
IP Protection Class Front Side
IP67 acc. to IEC 60529
Material
Housing
Stainless Steel
Illuminated Ring (Ring Illumination)
PMMA
Sensor Window
PC
Seal Ring
NBR70
¹ on request also available as NC / ² on request also available with cable or connector
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
| Material | Lettering Colour | |
| Stainless Steel | black | Filled letters |
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
Short Table of Variants TTS Open complete table TTS
| Diameter [mm] | Illumination | Illumination Colorinactive / active | Order Number | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | Ring Illumination | multicolor | 3-135-364 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22 | Ring Illumination | multicolor | 3-135-363 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22 | Ring Illumination | bi-colored␍green / red | 3-131-913 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22 | Ring Illumination | bi-colored␍green / red | 3-131-894 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum order quantity for standard variants with or without laser marking is 10 pieces. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Latching and momentary NO switch are open after power-up (protection against unintended switching) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging unit | 10 Pcs |
