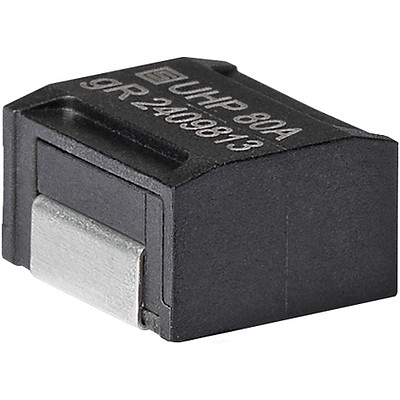

UHP  UHP SMD Fuse 100 A, 80 VDC, 11.4 x 10.2 mm

Series: UHP

UHP SMD Fuse 100 A, 80 VDC, 11.4 x 10.2 mm

New_Logo

12 Variants


Description

  • This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.

Unique Selling Proposition

  • High breaking capacity up to 3000 A
  • Safe tripping in 15 s at twice the rated current
  • High range of operating temperature

Applications

  • Automotive
  • Datacenter appliances
  • Telecom equipment
  • Power tools

Rated Voltage

80 VDC

Rated current

50 - 100 A

Breaking Capacity

3000 A

Characteristic

Quick-Acting F

Mounting

PCB,SMT

Admissible Ambient Temp.

-55 °C to 125 °C

Material: Housing

Polyphthalamid

Material: Terminals

Ni/Sn-Plated Copper Alloy

Unit Weight

1.2 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Storage Capability

max. 1 year, at  25 °C in original packaging

Product Marking

Schurter_Prüfzeichen, Marking, gR, Lot Code

Soldering Methods

Reflow
Soldering Profile

Solderability

JESD22-B102E, Method 1

Resistance to Soldering Heat

JEDEC J-STD-020

Solderability

245 °C / 3 sec acc. to IEC 60068-2-58

Resistance to Soldering Heat

260 +0/-5 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1

Moisture Sensitivity Level

MIL-STD-202, Method 103

Flammability

UL 94V-1

Thermal Shock

JESD22 Method JA-104

Operational Life

MIL-STD-202, Method 108 Condition D

Vibration, High Frequency

MIL-STD-202, Method 204 Condition C

Mechanical Shock

MIL-STD-202, Method 213 Condition C

Resistance to Solvents

MIL-STD-202, Method 215

Temperature Cycling

JESD22 Method JA-104

Board Flex

AEC-Q200-005

Terminal Strength

AEC-Q200-006

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: UHP

Approval Logo Certificates Certification Body Description
Approval marks cURus UL UR File Number: E531402


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners UL_Certification_Body Designed according to UL 248-13 Low voltage fuses - Part 13: Semiconductor fuses
Partners CSA_Certification_Body Designed according to CSA C22.2 No. 248.13:22 Low voltage fuses - Part 13: Semiconductor fuses


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety Halogenfree SCHURTER AG SCHURTER strives to offer our customers halogen free products.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
tableimage AECQ200 SCHURTER AG AEC-Q200 is a test standard for passive components used in automotive applications. SCHURTER tests components according to the customer's agreement and is certified according to IATF 16949.

010010230000000358
LOADING...

Dimension [mm]

Soldering pads


Derating Curves

Percentage of Rating [%]
Ambient Temperature [°C]


Pre-Arcing Time

Rated Current In 1.0 x In min. 2.0 x In max. 10.0 x In min. 10.0 x In max.
50 A - 100 A 4 h 15 s 1 ms 10 ms

Time-Current-Curves

Time in Seconds
Current in Amperes


Short Table of Variants UHP Open complete table UHP

Rated Current [A] Rated Voltage [VDC] Marking Order Number

Variant Details


The link on the respective order number refers to a separat tab with specific detailed information .
This assures better readable information of the selected product.
Change to the tab All Products in order to show details of another variant.
This approach offers to use generic alias link to the product details:
www.schurter.xx/art/ [Order Number]
where the following variables are used:
- xx is the country specific domain
- [Order Number]

A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

50 80 UHP 50A 3-139-122  A  - ...
50 80 UHP 50A 3-139-123 - ...
60 80 UHP 60A 3-139-124  A  - ...
60 80 UHP 60A 3-139-125 - ...
70 80 UHP 70A 3-139-126  A  - ...
70 80 UHP 70A 3-139-127 - ...
80 80 UHP 80A 3-139-128  A  - ...
80 80 UHP 80A 3-139-129 - ...
90 80 UHP 90A 3-139-130  A  - ...
90 80 UHP 90A 3-139-131 - ...
100 80 UHP 100A 3-139-132  A  - ...
100 80 UHP 100A 3-139-133 - ...

█ Most Popular.

1) 2000 A @ 80 VDC, 3000 A @ 63 VDC

____________________________________________________________________________

All measurements are carried out on a test board according to IEC 60127, track width 22 mm, Cu layer 210 µm

Packaging Unit
acc. IEC 60286-3 Type 2a
100 pcs. in tape [W: 24mm and P1: 16mm] in ESD plastic bag
500 pcs. in tape [W: 24mm and P1: 16mm] on reel [A: 33cm]
