Series: UMZ 250

Surface Mount Fuse with Clip, 4.2 x 11.1 mm, Time-Lag T, UMZ 250 = UMT 250 (Au) + UMC 250

36 Variants

Approvals and Compliances

CAD

Microsite SMD Fuses

Description

VDE/UL Approvals UMT 250, UMT 250 (Au), UMC 250 , see variants
High breaking capacity of 200 A @ 250 VAC (IEC)
UL approval for 0.08 A - 4 A 277 VAC and 250 VDC

Unique Selling Proposition

Compact design
Maximum breaking capacity at minimal footprint

Applications

Primary protection on SMD PCBs

Detailed request for product

Details UMZ 250

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Rated Voltage

250 VAC, 125 VDC

Rated current

0.08 - 4 A

Breaking Capacity

200 A

Characteristic

Time-Lag T

Mounting

PCB,SMT

Admissible Ambient Temp.

-40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Housing

Ceramics

Material: Terminals

Gold-Plated Copper Alloy

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen , Rated current, Rated Voltage, Characteristic, Breaking Capacity

Soldering Methods

Reflow
Soldering Profile

Solderability

245 °C / 3 sec acc. to IEC 60068-2-58

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-58

Moisture Sensitivity Level

MSL 1, J-STD-020

Moisture Resistance Test

MIL-STD-202, Method 106
(50 cycles in a temp./mister chamber)

Operational Life

MIL-STD-202, Method 108
(1000h @ 0.42*In @ 70°C)

Mechanical Shock

MIL-STD-202, Method 213 Condition A

Resistance to Solvents

Cleaning with common solvents

Terminal Strength

MIL-STD-202, Method 211A
(Deflection of board 1 mm for 1 minute)

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: UMZ 250

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	VDE Certificate Number: 40013121 / 40023291
	UL Approvals	UL	UR File Number: E39328

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	IEC 60127-4	Miniature fuses. Part 4. Universal modular fuse-links for through-hole and surface mount types
Designed according to	UL 248-14 / 4248-1	Low voltage fuses - Part 14: Supplemental fuses
Designed according to	CSA22.2 No. 248.14 / No. 4248.1	Low-Voltage Fuses - Part 14: Supplemental Fuses

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimension [mm]



	Soldering pads

Pre-Arcing Time

Rated Current In	1.25 x In min.	2.0 x In max.	10.0 x In min.	10.0 x In max.
0.08 A - 4.0 A	60 min	120 s	10 ms	100 ms

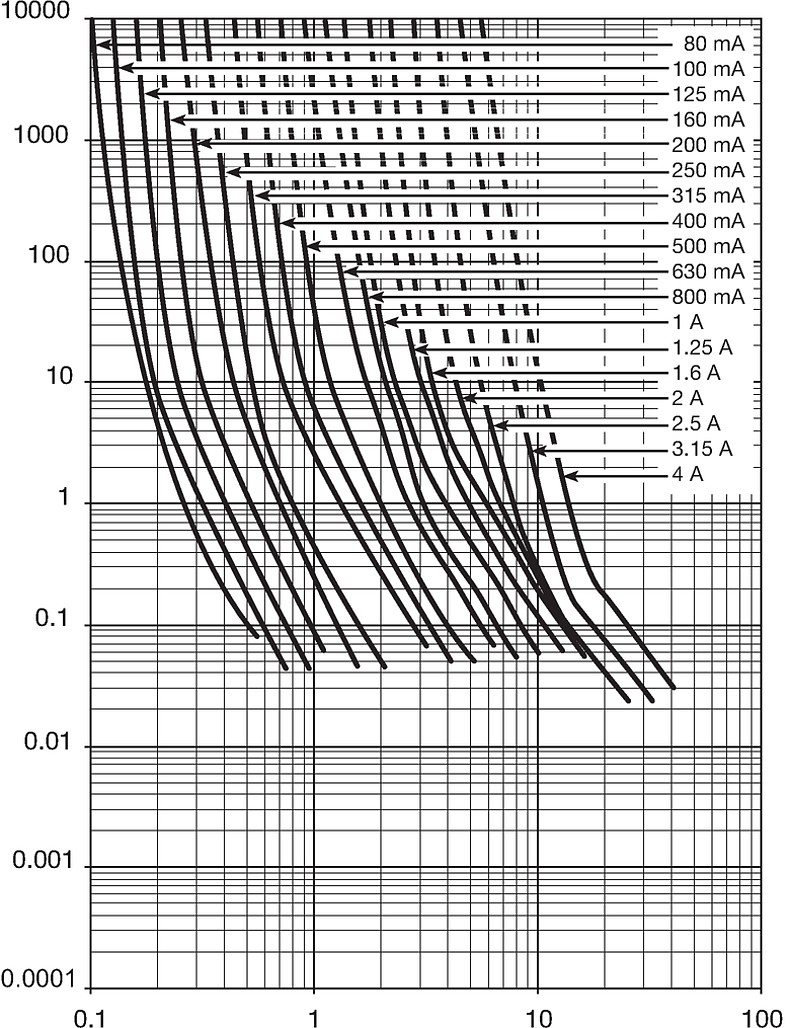

Time-Current-Curves


Time in Seconds
	Current in Amperes

Short Table of Variants UMZ 250 Open complete table UMZ 250

Rated Current [A]	Rated Voltage [VAC]	Rated Voltage [VDC]	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

0.08	250	250	3404.2405.11		...
0.08	250	250	3404.2405.22		...
0.1	250	125	3404.2406.11		...
0.1	250	125	3404.2406.22		...
0.125	250	125	3404.2407.11		...
0.125	250	125	3404.2407.22		...
0.16	250	250	3404.2408.11		...
0.16	250	250	3404.2408.22		...
0.2	250	125	3404.2409.11		...
0.2	250	125	3404.2409.22		...
0.25	250	125	3404.2410.11		...
0.25	250	125	3404.2410.22		...
0.315	250	125	3404.2411.11		...
0.315	250	125	3404.2411.22		...
0.4	250	125	3404.2412.11		...
0.4	250	125	3404.2412.22		...
0.5	250	125	3404.2413.11		...
0.5	250	125	3404.2413.22		...
0.63	250	125	3404.2414.11		...
0.63	250	125	3404.2414.22		...
0.8	250	125	3404.2415.11		...
0.8	250	125	3404.2415.22		...
1	250	125	3404.2416.11	A	...
1	250	125	3404.2416.22	A	...
1.25	250	125	3404.2417.11		...
1.25	250	125	3404.2417.22		...
1.6	250	125	3404.2418.11		...
1.6	250	125	3404.2418.22		...
2	250	125	3404.2419.11		...
2	250	125	3404.2419.22		...
2.5	250	125	3404.2420.11		...
2.5	250	125	3404.2420.22		...
3.15	250	125	3404.2421.11	A	...
3.15	250	125	3404.2421.22	A	...
4	250	125	3404.2422.11	A	...
4	250	125	3404.2422.22	A	...
█ Most Popular. 1) IEC: 200 A @ 250 VAC / 100 A @ 250 VDC 1) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 2) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 2) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 3) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 3) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC Approval Overview UMT 250 -> Fuse with tin-plated caps, Approval Status: VDE, UL LISTED, cURus, Free of CCC, PSE JET, KTL UMT 250 (Au) -> Fuse with gold-plated caps, Approval Status: VDE, cURus and PSE JET UMC 250 -> Clip, Approval Status: VDE UG Mark and cURus UMZ 250 = UMT 250 (Au) + UMC 250 There is no approval existing for the combination fuse and clip UMZ 250, but the fuse and the clip are fully approved independently at VDE/UL. See details above. In the reflow soldering process, the fuse must have gold-plated caps, otherwise fuse and clip would be soldered together. For fuse replacement in the field, a standard UMT 250 fuse with tin-plated caps can be used. This is not allowed for the 80 mA version. This must be replaced with an original UMZ with gold caps. It is not allowed to replace higher rated current than 4 A in the clip.

Packaging Unit
acc. IEC 60286-3 Type 2a

.xx = .11	100 pcs. in tape in ESD-plastic bag
.xx = .22	1000 pcs. in tape [W: 24mm and P1: 8mm] on reel [A: 33cm]

Table of Variants UMZ 250

Rated Current [A]	Rated Voltage [VAC]	Rated Voltage [VDC]	Breaking Capacity	Voltage Drop 1.0 In max. [mV]	Voltage Drop 1.0 In typ. [mV]	Power Dissipation 1.25 In max [mW]	Melting I²t 10.0 In typ. [A²s]			Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

0.08	250	250	1)	1300	1030	200	0.022		•	3404.2405.11		100
0.08	250	250	1)	1300	1030	200	0.022		•	3404.2405.22		1000
0.1	250	125	2)	1300	850	200	0.04	•	•	3404.2406.11		100
0.1	250	125	2)	1300	850	200	0.04	•	•	3404.2406.22		1000
0.125	250	125	2)	1000	700	200	0.055	•	•	3404.2407.11		100
0.125	250	125	2)	1000	700	200	0.055	•	•	3404.2407.22		1000
0.16	250	250	1)	1000	540	240	0.057	•	•	3404.2408.11		100
0.16	250	250	1)	1000	540	240	0.057	•	•	3404.2408.22		1000
0.2	250	125	2)	1000	460	500	0.092	•	•	3404.2409.11		100
0.2	250	125	2)	1000	460	500	0.092	•	•	3404.2409.22		1000
0.25	250	125	2)	800	395	500	0.2	•	•	3404.2410.11		100
0.25	250	125	2)	800	395	500	0.2	•	•	3404.2410.22		1000
0.315	250	125	2)	750	344	500	0.27	•	•	3404.2411.11		100
0.315	250	125	2)	750	344	500	0.27	•	•	3404.2411.22		1000
0.4	250	125	2)	700	320	500	0.4	•	•	3404.2412.11		100
0.4	250	125	2)	700	320	500	0.4	•	•	3404.2412.22		1000
0.5	250	125	2)	600	264	500	0.54	•	•	3404.2413.11		100
0.5	250	125	2)	600	264	500	0.54	•	•	3404.2413.22		1000
0.63	250	125	2)	500	216	500	1.1	•	•	3404.2414.11		100
0.63	250	125	2)	500	216	500	1.1	•	•	3404.2414.22		1000
0.8	250	125	2)	400	174	500	1.4	•	•	3404.2415.11		100
0.8	250	125	2)	400	174	500	1.4	•	•	3404.2415.22		1000
1	250	125	3)	300	174	500	2.8	•	•	3404.2416.11	A	100
1	250	125	3)	300	174	500	2.8	•	•	3404.2416.22	A	1000
1.25	250	125	3)	300	140	1000	4.5	•	•	3404.2417.11		100
1.25	250	125	3)	300	140	1000	4.5	•	•	3404.2417.22		1000
1.6	250	125	3)	300	130	1000	6.9	•	•	3404.2418.11		100
1.6	250	125	3)	300	130	1000	6.9	•	•	3404.2418.22		1000
2	250	125	3)	300	103	1000	7.3	•	•	3404.2419.11		100
2	250	125	3)	300	103	1000	7.3	•	•	3404.2419.22		1000
2.5	250	125	3)	300	90	1200	7.5	•	•	3404.2420.11		100
2.5	250	125	3)	300	90	1200	7.5	•	•	3404.2420.22		1000
3.15	250	125	3)	300	95	1500	14	•	•	3404.2421.11	A	100
3.15	250	125	3)	300	95	1500	14	•	•	3404.2421.22	A	1000
4	250	125	3)	300	83	2000	26	•	•	3404.2422.11	A	100
4	250	125	3)	300	83	2000	26	•	•	3404.2422.22	A	1000
█ Most Popular. 1) IEC: 200 A @ 250 VAC / 100 A @ 250 VDC 1) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 2) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 2) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 3) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 3) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC Approval Overview UMT 250 -> Fuse with tin-plated caps, Approval Status: VDE, UL LISTED, cURus, Free of CCC, PSE JET, KTL UMT 250 (Au) -> Fuse with gold-plated caps, Approval Status: VDE, cURus and PSE JET UMC 250 -> Clip, Approval Status: VDE UG Mark and cURus UMZ 250 = UMT 250 (Au) + UMC 250 There is no approval existing for the combination fuse and clip UMZ 250, but the fuse and the clip are fully approved independently at VDE/UL. See details above. In the reflow soldering process, the fuse must have gold-plated caps, otherwise fuse and clip would be soldered together. For fuse replacement in the field, a standard UMT 250 fuse with tin-plated caps can be used. This is not allowed for the 80 mA version. This must be replaced with an original UMZ with gold caps. It is not allowed to replace higher rated current than 4 A in the clip.
