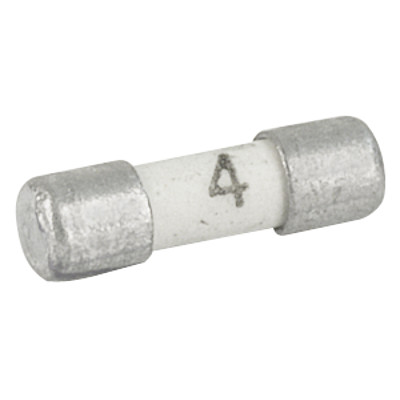

172876  Surface Mount Fuse, 7 x 2 mm, Quick-Acting F, 125 VAC, 125 VDC

Series: 172876

Surface Mount Fuse, 7 x 2 mm, Quick-Acting F, 125 VAC, 125 VDC

Free Sample Request

35 Variants


Description

  • High breaking capacity
  • Directly solderable on printed circuit boards

Applications

  • Telecom
  • Household appliances

Rated Voltage

63 - 125 VAC, 65 - 125 VDC

Rated current

0.063 - 15 A

Breaking Capacity

300 A

Characteristic

Quick-Acting F

Mounting

PCB,SMT

Admissible Ambient Temp.

-55 °C to 125 °C

Climatic Category

55/125/56 acc. to IEC 60068-1

Material: Tube

Ceramics

Material: Endcaps

Copper alloy, tin-plated

Unit Weight

0.07 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen, Rated current

Soldering Methods

Reflow, Wave
Soldering Profile

Solderability

235 °C / 2 sec acc. to IEC 60068-2-58, Test Td,Fig. 2B (Reflow) // 245 °C / 3 sec (Wave)

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-58, Test Td

Moisture Sensitivity Level

MSL 1, J-STD-020

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: 172876

Approval Logo Certificates Certification Body Description
Approval marks cURus UL UR File Number: E42088


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks UL Designed according to UL 248-14 Low voltage fuses - Part 14: Supplemental fuses
Approval marks CSA_Certification_Body Designed according to CSA22.2 No. 248.14 Low-Voltage Fuses - Part 14: Supplemental Fuses


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010010240000000067
LOADING...

Dimension [mm]

Soldering pads

Pre-Arcing Time

Rated Current In 1.0 x In min. 2.0 x In max. 2.75 x In max. 4.0 x In max. 10.0 x In max.
0.063 A - 0.75 A 4 h 5 s 300 ms 30 ms 5 ms
1 A - 15 A 4 h 10 s - 60 ms 5 ms

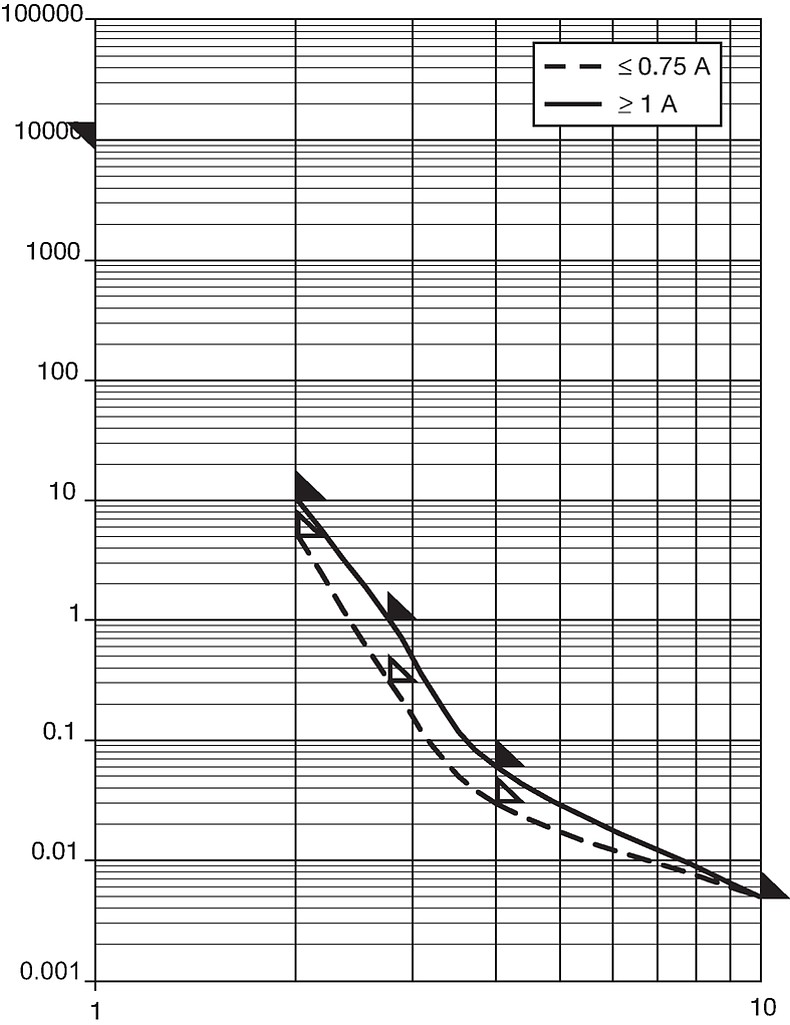

Time-Current-Curves

Time in Seconds
Multiple of Rated Current In


Short Table of Variants 172876 Open complete table 172876

Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Order Number Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...


0.063 125 125 7010.9750.63 ...
0.063 125 125 7010.9750.57 ...
0.125 125 125 7010.9760.63 ...
0.25 125 125 7010.9770.63 ...
0.25 125 125 7010.9770.57 ...
0.375 125 125 7010.9780.63 ...
0.375 125 125 7010.9780.57 ...
0.5 125 125 7010.9790.63 ...
0.5 125 125 7010.9790.57 ...
0.75 125 125 7010.9800.63 ...
0.75 125 125 7010.9800.57 ...
1 125 125 7010.9810.63 ...
1 125 125 7010.9810.57 ...
1.5 125 125 7010.9820.63 ...
1.5 125 125 7010.9820.57 ...
2 125 125 7010.9830.63 ...
2 125 125 7010.9830.57 ...
2.5 125 125 7010.9840.63 ...
2.5 125 125 7010.9840.57 ...
3 125 125 7010.9850.63 ...
3 125 125 7010.9850.57 ...
3.5 125 125 7010.9860.63 ...
3.5 125 125 7010.9860.57 ...
4 125 125 7010.9870.63 ...
4 125 125 7010.9870.57 ...
5 63 125 7010.9880.63 ...
5 63 125 7010.9880.57 ...
7 63 125 7010.9890.63 ...
7 63 125 7010.9890.57 ...
10 65 65 7010.9892.63 ...
10 65 65 7010.9892.57 ...
12 65 65 7010.9894.63 ...
12 65 65 7010.9894.57 ...
15 65 65 7010.9896.63 ...
15 65 65 7010.9896.57 ...

1) 300 A @ 125 VAC , cos φ ≥ 0.95 / 300 A @ 125 VDC resistiv

2) 300 A @ 63 VAC , cos φ ≥ 0.95 / 300 A @ 125 VDC resistiv

3) 300 A @ 65 VAC , cos φ ≥ 0.95 / 300 A @ 65 VDC resistiv

Packaging Unit
acc. IEC 60286-3 Type 2a
.xx = .63 100 St. in ESD-plastic bag
.xx = .57 1500 pcs. in tape [W: 16mm and P1: 4mm] on reel [A: 18cm]
