Rated Voltage
750 - 800 VDC
Rated current
10 - 50 A
Breaking Capacity
20 kA
Characteristic
Quick-Acting F
Mounting
PCB/THT, Screw
Admissible Ambient Temp.
-40 °C to 125 °C
Material: Tube
Ceramics
Material: Endcaps
Copper Alloy
Unit Weight
13.6 g
Storage Conditions
0 °C to 40 °C, max. 70% r.h.
Product Marking
, Type, Rated current, Rated Voltage, Breaking Capacity, CE mark, Approvals
Soldering Methods
Reflow, Wave
Soldering Profile
Solderability
JESD22-B102E, Method 1
Resistance to Soldering Heat
JEDEC J-STD-020, Method B
Solderability
235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1
Resistance to Soldering Heat
260 °C / 5 sec acc. to IEC 60068-2-20, Test Tb, method 1A
Operational Life
MIL-STD-202, Method 108
1000h @ 0.7 x In @ 125°C
Mechanical Shock
MIL-STD-202, Method 213 Condition C
Resistance to Solvents
MIL-STD-202, Method 215
Terminal Strength
MIL-STD-202, Method 211A
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: AMO 10.3x38
Approval Logo | Certificates | Certification Body | Description |
---|---|---|---|
![]() |
UL | UR File Number: E184831 |
Application standards where the product can be used
Organization | Design | Standard | Description |
---|---|---|---|
![]() |
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
The product complies with following Guide Lines
Identification | Details | Initiator | Description |
---|---|---|---|
![]() |
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
![]() |
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
![]() |
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
![]() |
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
![]() |
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
Rated Current In | 1.13 x In min. | 1.35 x In max. | 2.0 x In min. | 2.0 x In max. | 3.0 x In min. | 3.0 x In max. | 5.0 x In min. | 5.0 x In max. |
---|---|---|---|---|---|---|---|---|
10 A - 50 A | 60 min | 60 min | 500 ms | 100 s | 100 ms | 15 s | 30 ms | 1 s |
Rated Current [A] | Mounting | Rated Voltage [VDC] |
Order Number
|
Symbols, Footprints, 3D-Models | Free Sample Free Sample
|
Distributor Stock Check Distributor Stock Check
|

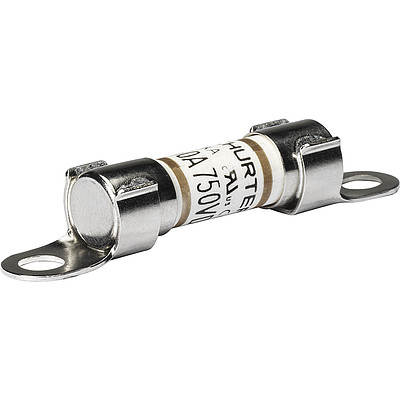

... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 | Screw | 800 | 3-151-005 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
15 | Screw | 800 | 3-151-006 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | Screw | 800 | 3-151-007 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | Screw | 800 | 3-151-008 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | Screw | 800 | 3-151-009 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
40 | Screw | 750 | 3-151-010 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
50 | Screw | 750 | 3-151-011 |
|

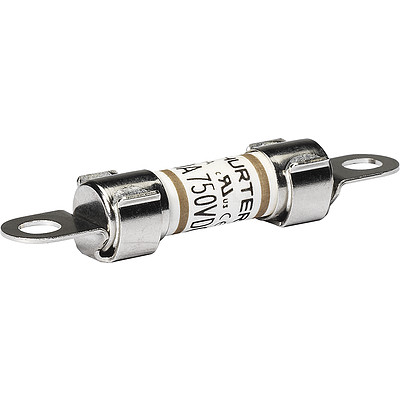

... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | Screw (Axial) | 800 | 3-151-012 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
15 | Screw (Axial) | 800 | 3-151-013 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | Screw (Axial) | 800 | 3-151-014 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | Screw (Axial) | 800 | 3-151-015 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | Screw (Axial) | 800 | 3-151-016 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
40 | Screw (Axial) | 750 | 3-151-017 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
50 | Screw (Axial) | 750 | 3-151-018 |
|

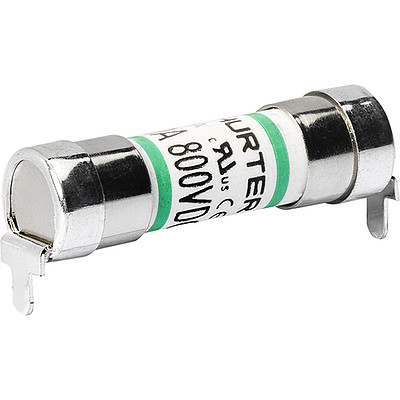

... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | PCB | 800 | 3-151-019 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
15 | PCB | 800 | 3-151-020 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | PCB | 800 | 3-151-021 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | PCB | 800 | 3-151-022 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | PCB | 800 | 3-151-023 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
40 | PCB | 750 | 3-151-024 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
50 | PCB | 750 | 3-151-025 |
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1) UL: 20 kA @ 800 VDC with L/R < 1 ms 2) UL: 20 kA @ 750 VDC with L/R < 1 ms |
Packaging Unit | Bulk (100 pcs.) |
