SHF 6.3x32  Cartridge Fuse, 6.3x32 mm, 500 VAC, 500 VDC , 0.5 A-32 A, High Breaking Capacity ≥ 1500 A

Series: SHF 6.3x32

Cartridge Fuse, 6.3x32 mm, 500 VAC, 500 VDC 0.5 A-32 A, High Breaking Capacity ≥ 1500 A

Free Sample Request

38 Variants


Description

  • 6.3 x 32 mm fuses for primary protection
  • 19 rated currents from 0.5 A to 32 A
  • Pigtails optional

Unique Selling Proposition

  • High rated voltages up to 500 VAC / VDC
  • High breaking capacity ≥ 1500 A

Applications

  • 3-phase applications
  • DC applications
  • Power supplies
  • Frequency converter
  • Power electronics

Rated Voltage

500 VAC, 500 VDC

Rated current

0.5 - 32 A

Breaking Capacity

1500 A - 50 kA

Characteristic

Quick-Acting F

Mounting

Fuseholder / Clip

Admissible Ambient Temp.

-40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Tube

Ceramics

Material: Endcaps

Nickel-Plated Copper Alloy

Material: Axial Leads

Tin-Plated Copper

Unit Weight

2.84 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen, Type, Rated current, Rated Voltage, Characteristic, Breaking capacity, Approvals

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: SHF 6.3x32

Approval Logo Certificates Certification Body Description
Approval marks cURus UL UR File Number: E41599


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks UL Designed according to UL 248-14 Low voltage fuses - Part 14: Supplemental fuses
Approval marks CSA_Certification_Body Designed according to CSA22.2 No. 248.14 Low-Voltage Fuses - Part 14: Supplemental Fuses


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010010070000000183
LOADING...

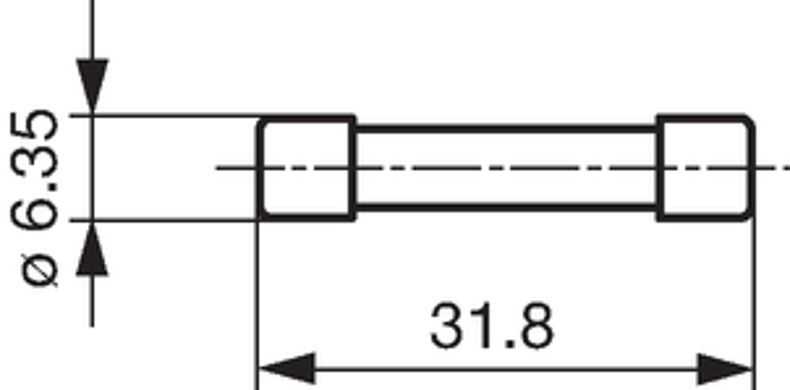

Dimension [mm]


Pre-Arcing Time

Rated Current In 1.0 x In min. 1.5 x In min. 2.1 x In max. 2.75 x In min. 2.75 x In max. 4.0 x In min. 4.0 x In max. 10.0 x In min. 10.0 x In max.
0.5 A - 0.8 A - 60 min 30 min 20 ms 1.5 s 8 ms 400 ms - 20 ms
1 A - 8 A - 60 min 30 min 20 ms 5 s 8 ms 1 s - 50 ms
10 A - 32 A 240 min - 30 min 100 ms 5 s 20 ms 1 s - 50 ms

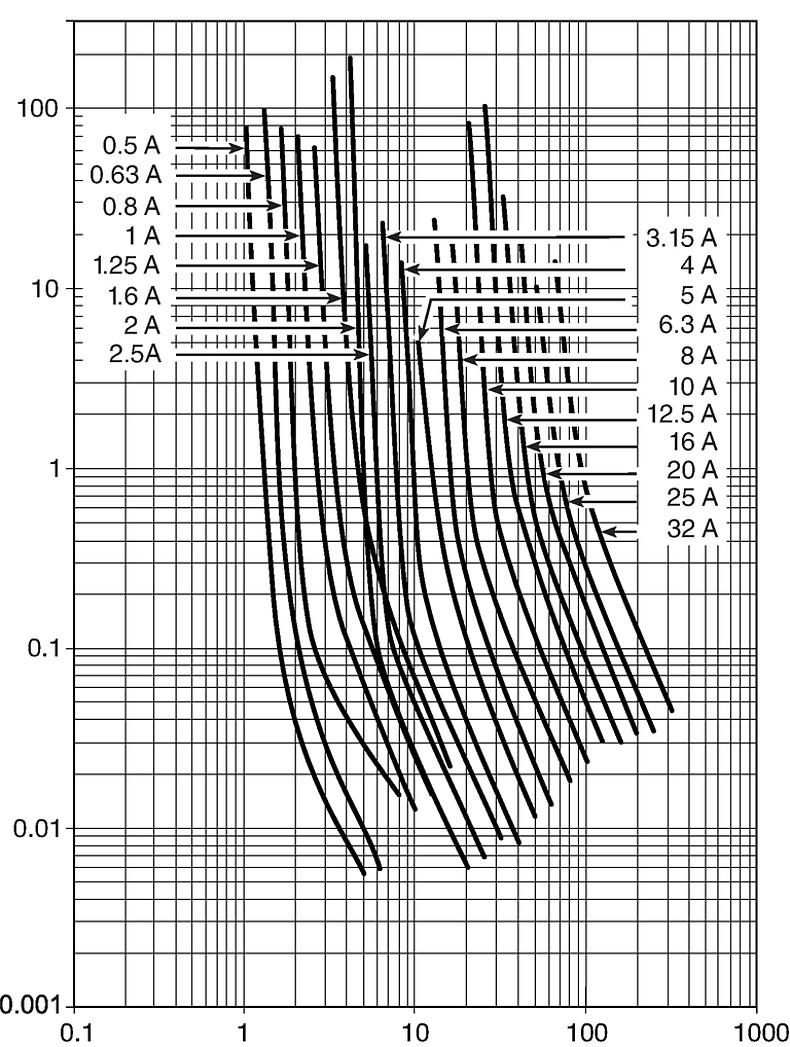

Time-Current-Curves

Time in Seconds
Current in Amperes


Short Table of Variants SHF 6.3x32 Open complete table SHF 6.3x32

Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Order Number Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...


0.5 500 500 8020.5065 ...
0.5 500 500 8020.5065.G ...
0.63 500 500 8020.5066 ...
0.63 500 500 8020.5066.G ...
0.8 500 500 8020.5067 ...
0.8 500 500 8020.5067.G ...
1 500 500 8020.5068 ...
1 500 500 8020.5068.G ...
1.25 500 500 8020.5069 ...
1.25 500 500 8020.5069.G ...
1.6 500 500 8020.5070 ...
1.6 500 500 8020.5070.G ...
2 500 400 8020.5071 ...
2 500 400 8020.5071.G ...
2.5 500 400 8020.5072 ...
2.5 500 400 8020.5072.G ...
3.15 500 400 8020.5073 ...
3.15 500 400 8020.5073.G ...
4 500 400 8020.5074 ...
4 500 400 8020.5074.G ...
5 500 400 8020.5075 ...
5 500 400 8020.5075.G ...
6.3 500 400 8020.5076 ...
6.3 500 400 8020.5076.G ...
8 500 400 8020.5077 ...
8 500 400 8020.5077.G ...
10 500 400 8020.5078 ...
10 500 400 8020.5078.G ...
12.5 500 400 8020.5079 ...
12.5 500 400 8020.5079.G ...
16 500 400 8020.5080 ...
16 500 400 8020.5080.G ...
20 440 63 8020.5081 ...
20 440 63 8020.5081.G ...
25 440 63 8020.5082 ...
25 440 63 8020.5082.G ...
32 440 63 8020.5083 ...
32 440 63 8020.5083.G ...

1)␉50 kA @ 500 VAC, cos φ = 0.3 - 0.4

␉1500 A @ 500 VAC, cos φ = 0.99 - 1

␉1500 A @ 250 VAC, cos φ = 0.7 - 0.8

␉10 kA @ 125 VAC, cos φ = 0.7 - 0.8

␉1500 A @ 500 VDC

␉20 kA @ 63 VDC

2)␉1500 A @ 500 VAC, cos φ = 0.99 - 1

␉1500 A @ 250 VAC, cos φ = 0.7 - 0.8

␉10 kA @ 125 VAC, cos φ = 0.7 - 0.8

␉1500 A @ 500 VDC

␉20 kA @ 63 VDC

3)␉1500 A @ 500 VAC, cos φ = 0.99 - 1

␉1500 A @ 250 VAC, cos φ = 0.7 - 0.8

␉10 kA @ 125 VAC, cos φ = 0.7 - 0.8

␉1500 A @ 400 VDC

␉20 kA @ 63 VDC

4)␉1500 A @ 440 VAC, cos φ = 0.99 - 1

␉1500 A @ 250 VAC, cos φ = 0.7 - 0.8

␉10 kA @ 125 VAC, cos φ = 0.7 - 0.8

␉20 kA @ 63 VDC

Packaging Unit xxxx.xxxx      Small Box Pack (10 pcs.)
xxxx.xxxx.G  Bulk (1000 pcs.)
