DS11  SCHURTER Smart Connector DS11

Series: DS11

SCHURTER Smart Connector DS11

New_Logo

Connectors (Inlets/Outlets)

C14
Connector Logo
70° C

Interface


 Logo
WiFi

 Logo
Bluetooth

Description

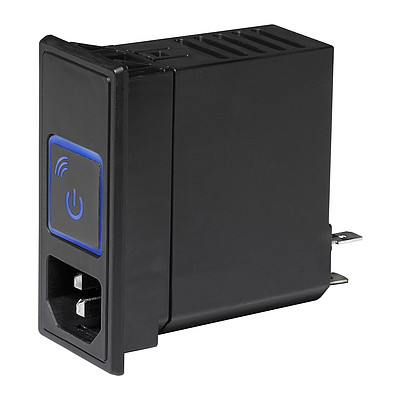

  • Smart IEC Appliance Inlet C14 with WiFi
  • Panel mount, Snap-in version from front side
  • Unique mounting variant
  • Compact design

Unique Selling Proposition

  • First of its kind on the market
  • Bi-directional connection from the cloud
  • Device connection via WiFi
  • Compatible with V-Lock cord retention

Characteristics

  • WiFi 802.11b/g/n or Bluetooth 4.2 connectivity
  • Relay switchable via WiFi (Cloud)
  • Integrated energy live measurement with update rate up to 60 sec.
  • Low standby Energy consumption (<0.5W)
  • Button with RGB backlight
  • Smartphone App for easy configuration, control and monitoring (iOS and Android)
  • Smart API for direct data tranfer to your own cloud

Electrical Properties

Ratings IEC

10 A / 250 VAC; 50 Hz

Energy Consumption (Standby)

< 0.5 W

Appliance Inlet

C14 acc. to IEC 60320-1
(for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Mechanicall Properties

IP-Protection

IP40

Measurement Properties

Active Energy Metering Error

±0.2% full range

Reactive Energy Metering Error

±0.4% full range

Minimum measurable Current

20 mA

Connectivity

Wireless LAN

WiFi 802.11b/g/n

Bluetooth

Bluetooth 4.2 BLE

Cloud Connectivity

Data stored per device

Online-State

Time last seen

Voltage

Current

Power

Accumulated Energy

Power Factor

Frequency

State of AC output

SSID of the connected network

Name of the device

Paired user accounts including device owner

Data stored per user

Username / Password (encrypted)

E-Mail address

Subscription information

SCHURTER Smart Services

SCHURTER Smart Dashboard

Web-based dashboard for device monitoring, management and control

SCHURTER Smart App

Smartphone app for Apple and Android devices. The smartphone app allows to easily configure the WiFi credentials on the SCHURTER Smart Connector DS11 and interface with the SCHURTER Smart Ecosystem

SCHURTER Smart API

HTTP REST API with user based authentication. The REST API can be used to interface directly with the SCHURTER Cloud via HTTPS and dedicated GET/POST/PUT/DELETE endpoints

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: DS11

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 40056685


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Components V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

020052000000001900
LOADING...

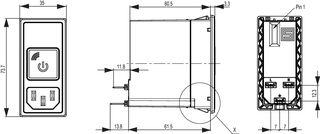

Dimensions [mm]

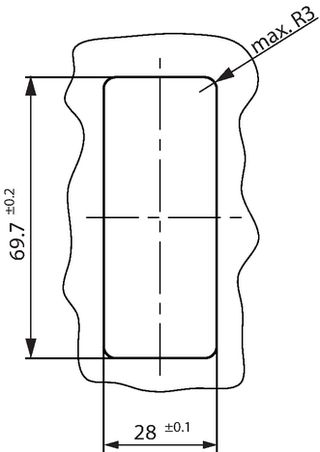

Panel cut-out

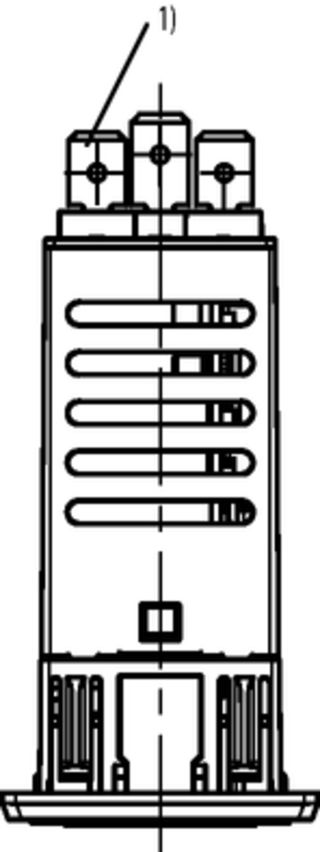

1) 3 x Quick connect 6.3 x 0.8 mm


Short Table of Variants DS11 Open complete table DS11

Rated Current [A] Protection Class Serial device interface Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

10 I None 3-137-412  A  - ...

Most Popular.

Packaging unit 10 Pcs

020052000000001900
LOADING...
